Fog/Driving Lamp: Service and Repair
FRONT FOG LIGHT

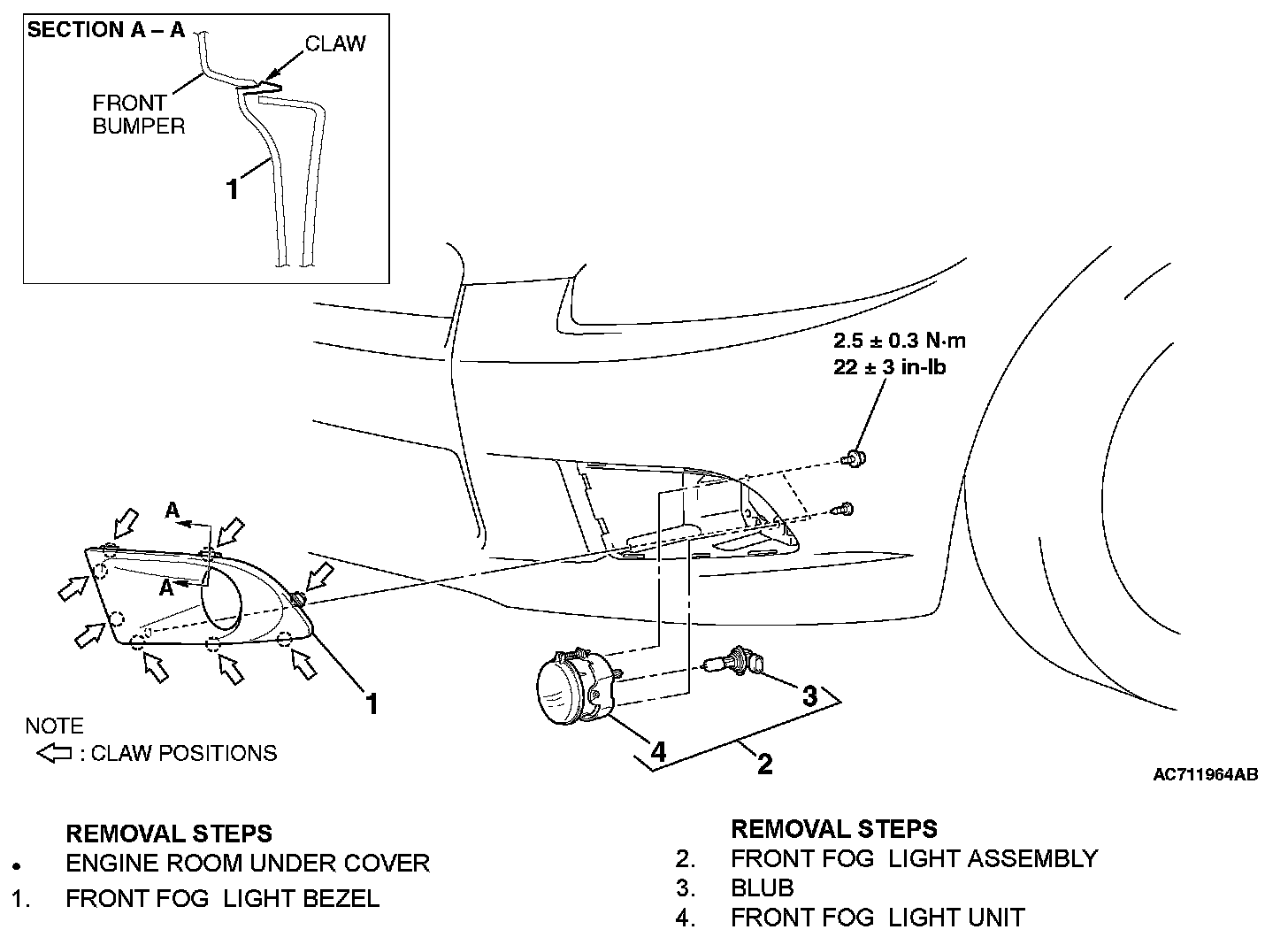

FOG LIGHT REMOVAL AND INSTALLATION
Post-installation Operation:
Removal Steps 1-4:
