DOME LIGHT
REMOVAL AND INSTALLATION

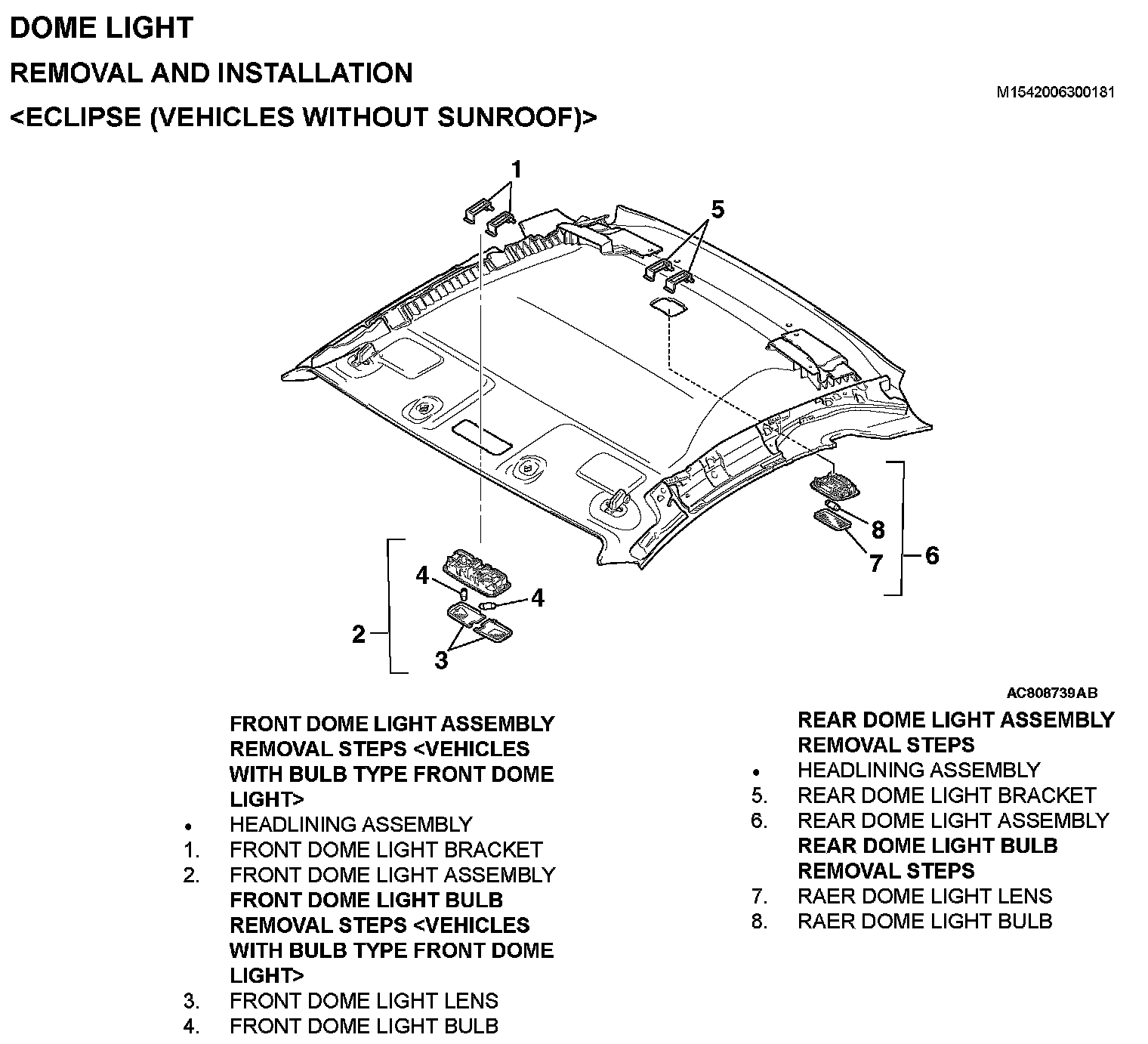

[ECLIPSE (VEHICLES WITHOUT SUNROOF)]
Removal Steps 1-8:

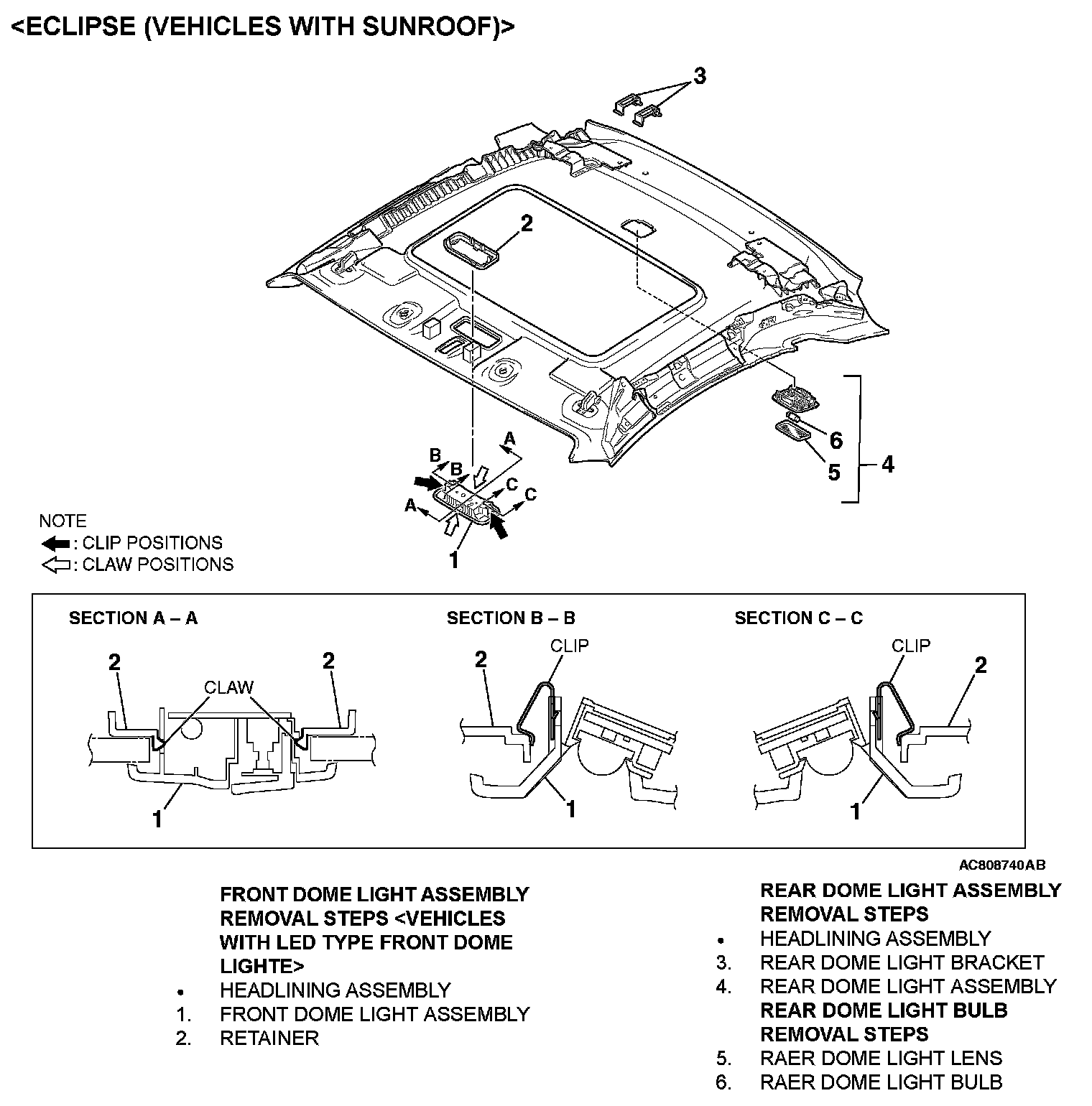

[ECLIPSE (VEHICLES WITH SUNROOF)]
Removal Steps 1-6:
