Data List Reference Table

DATA LIST REFERENCE TABLE

The following items of the ECU input data can be read using scan tool M.U.T.-III.

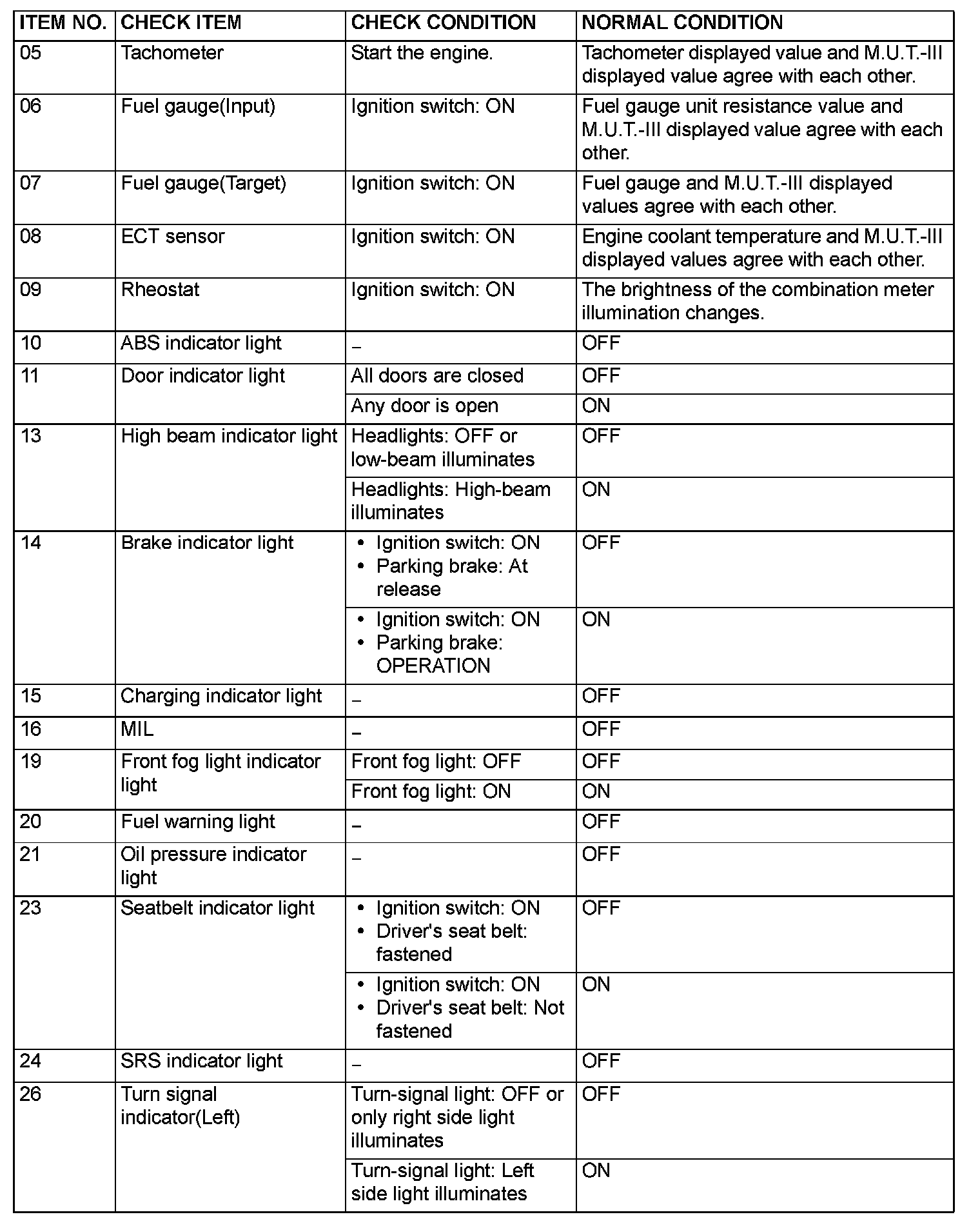

Data List Reference Table (Part 1):

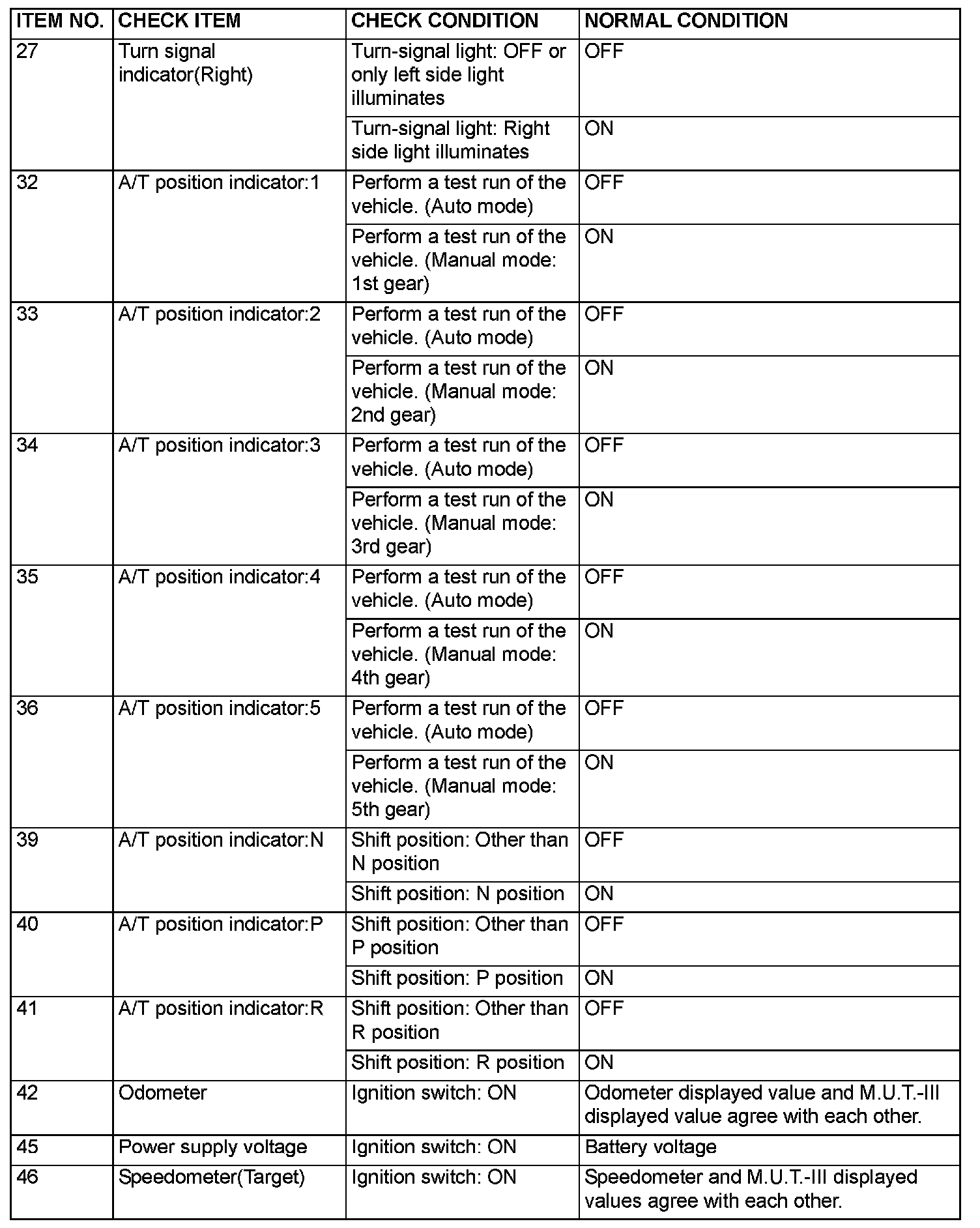

Data List Reference Table (Part 2):

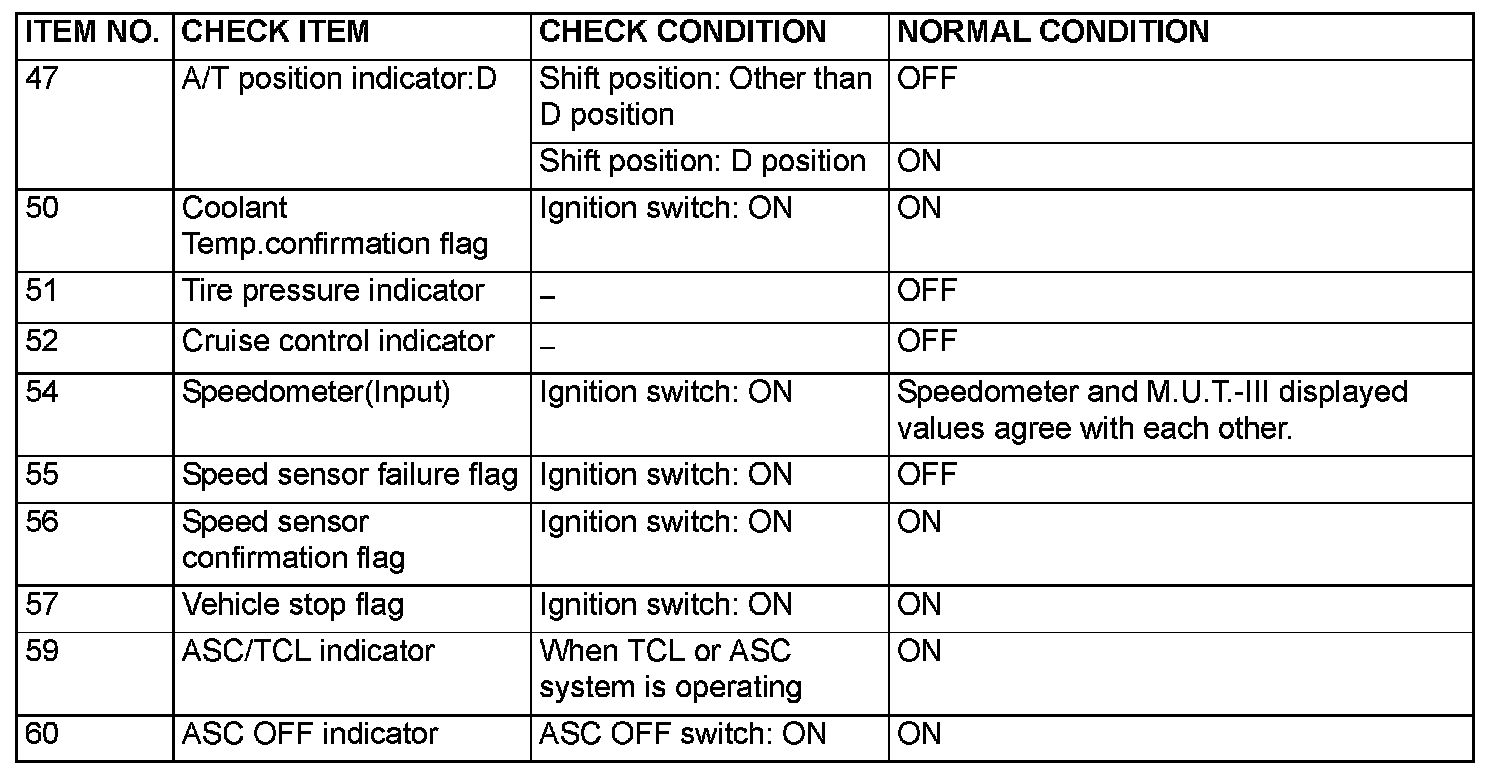

Data List Reference Table (Part 3):
