ACTUATOR TEST REFERENCE TABLE

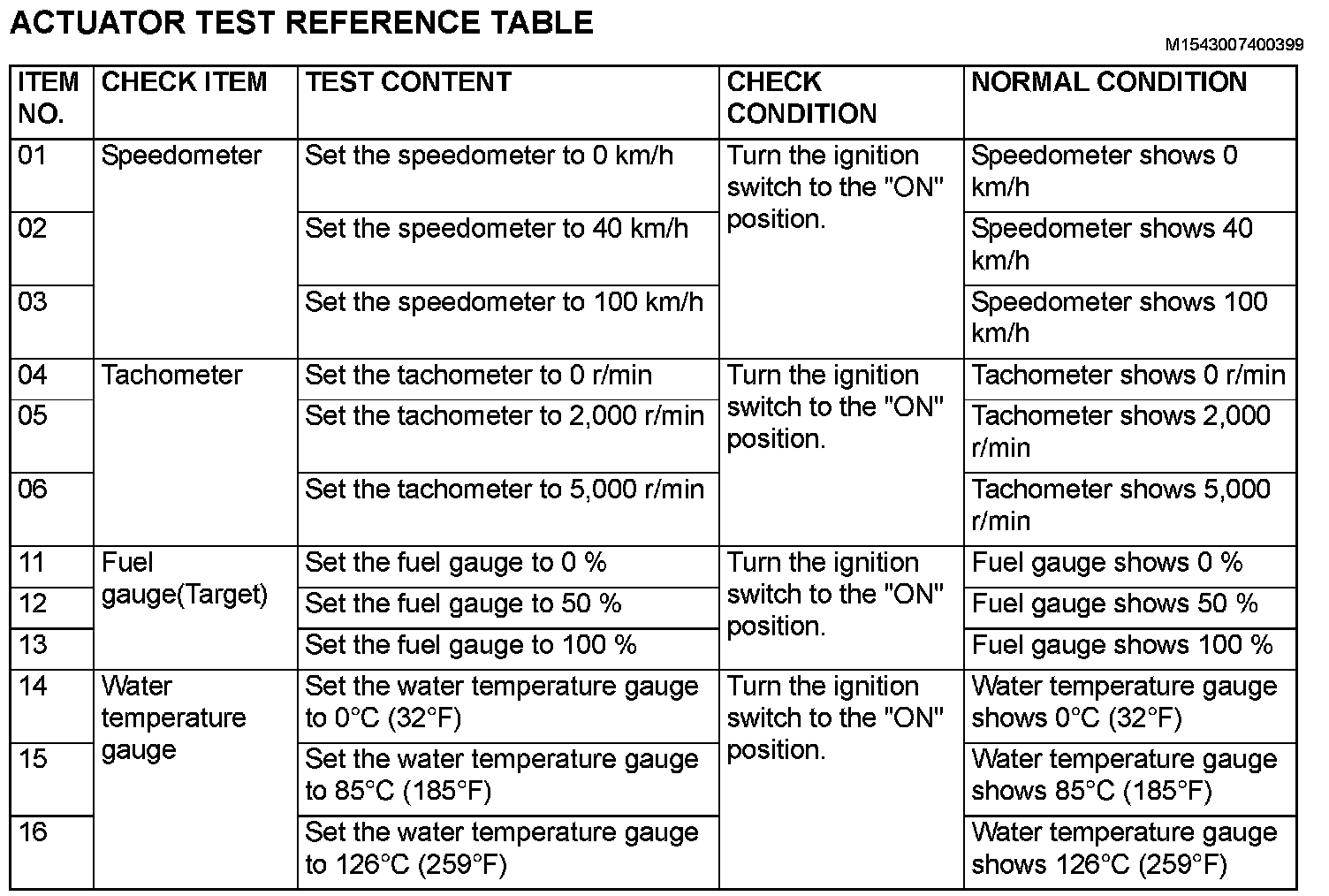

Actuator Test Reference Table (Part 1):

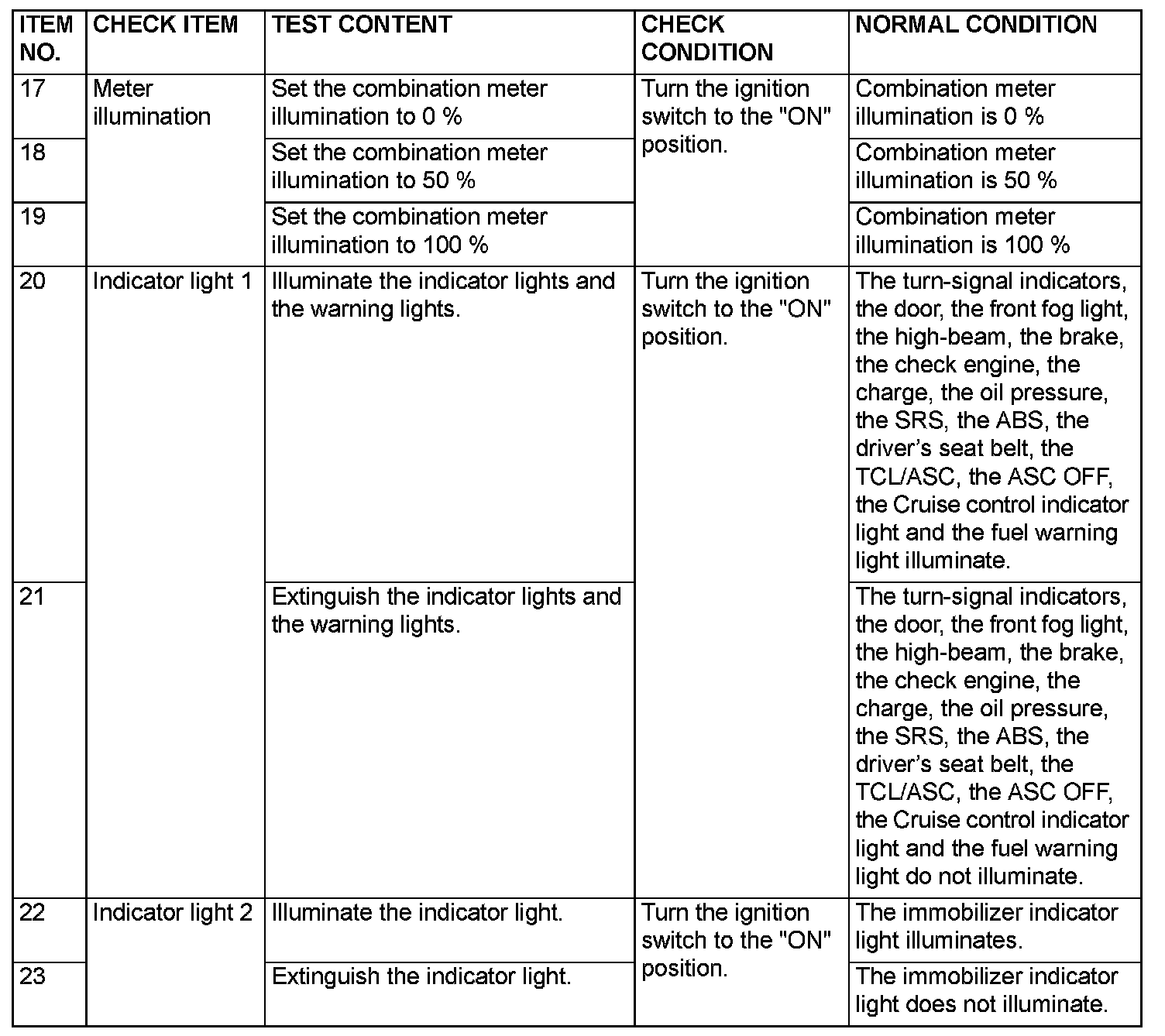

Actuator Test Reference Table (Part 2):
