Fuel Level Sensor Float Height

FUEL LEVEL SENSOR FLOAT HEIGHT

1. Remove the fuel level sensor.

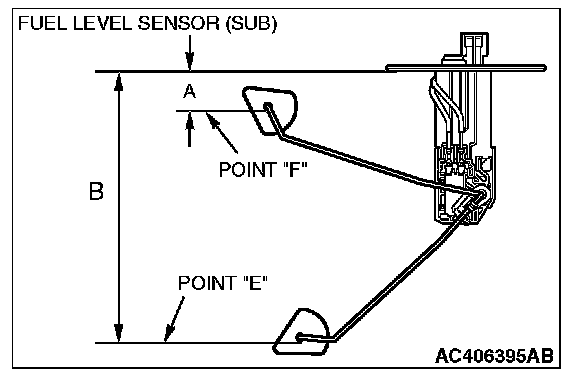

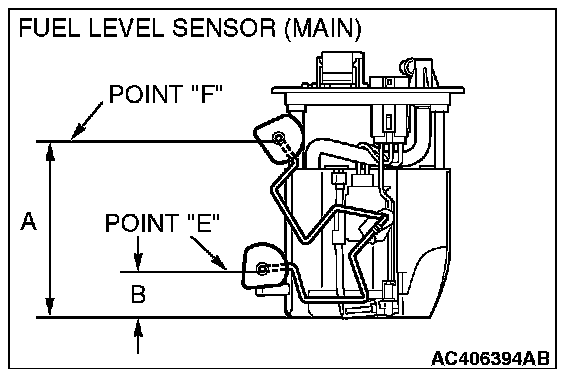

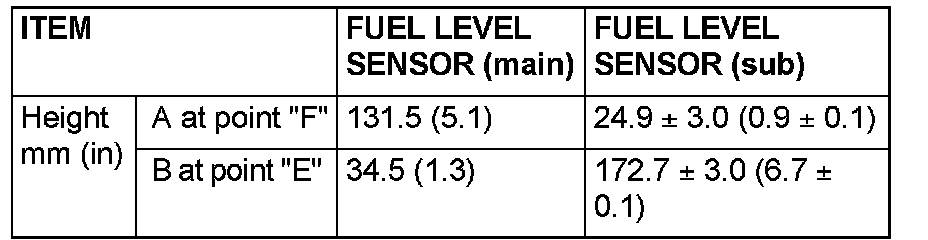

2. Move the float and measure height A at point "F" (highest) and B at point "E" (lowest).
3. If any check is not correct, replace the fuel pump module or fuel level sensor (sub).
