Combination Meter Terminal Check

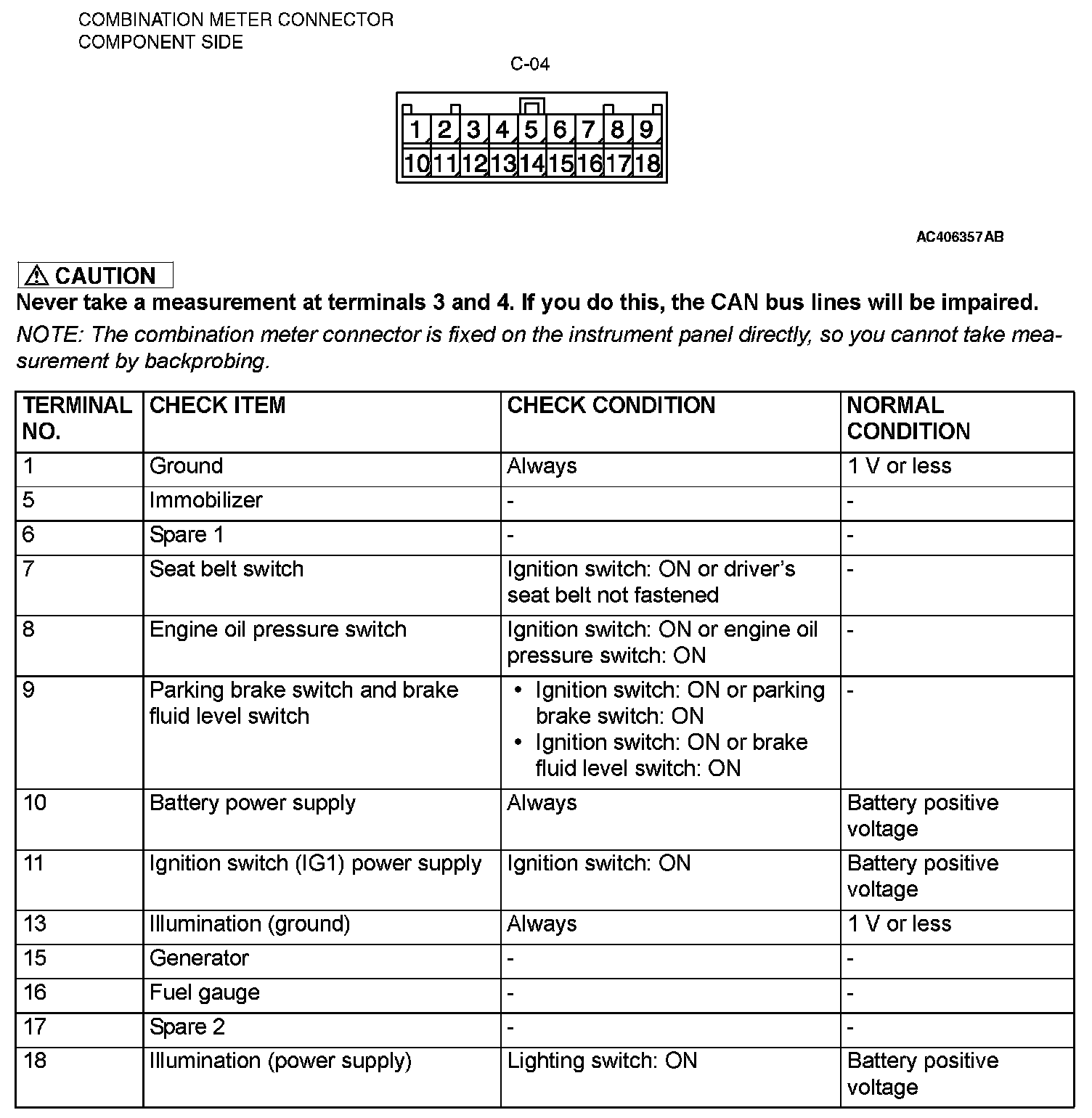

COMBINATION METER TERMINAL CHECK

Measure the voltage between terminals using a voltmeter.
