Actuator Test Reference

ACTUATOR TEST REFERENCE

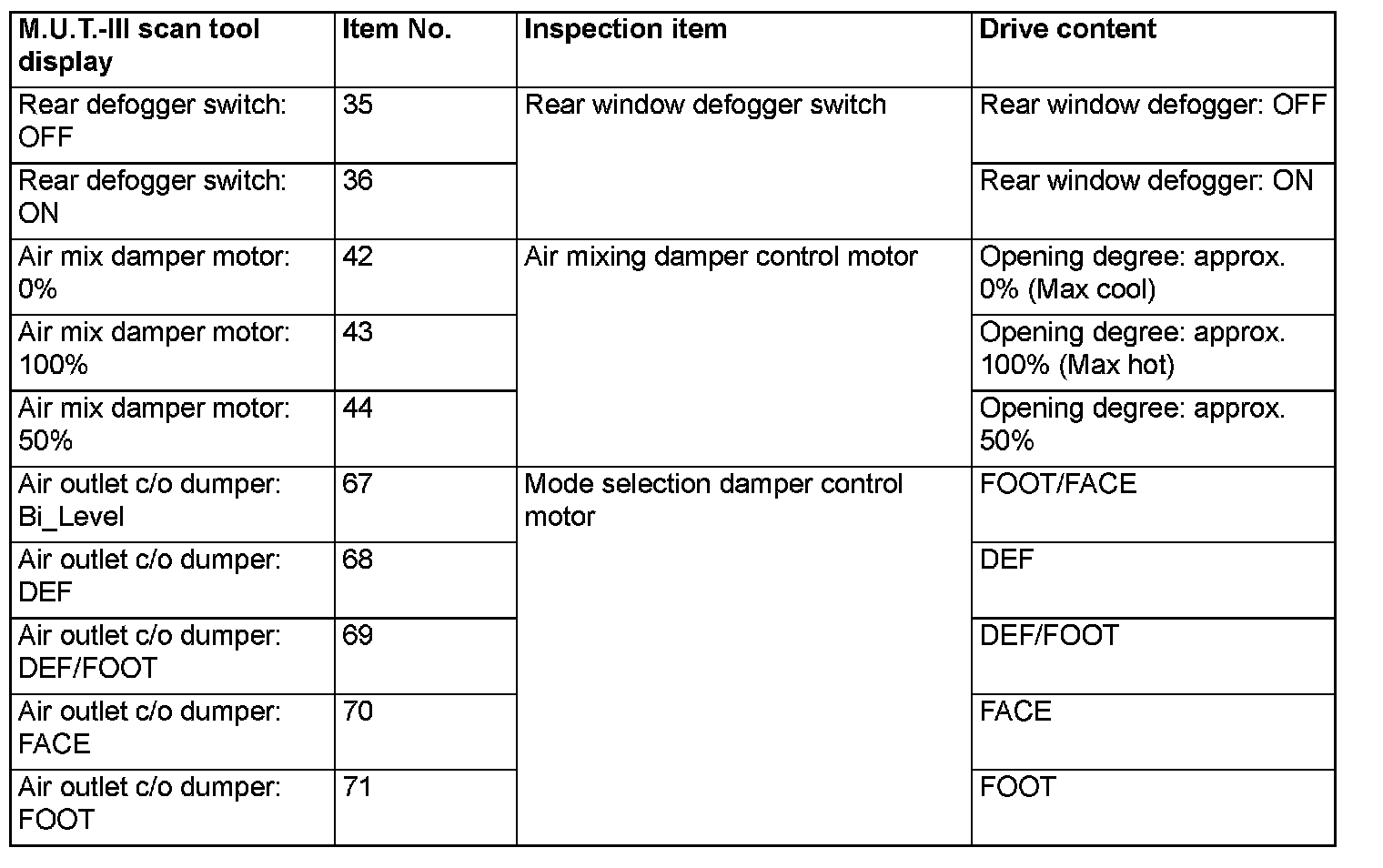

Actuator Test Reference (Part 1):

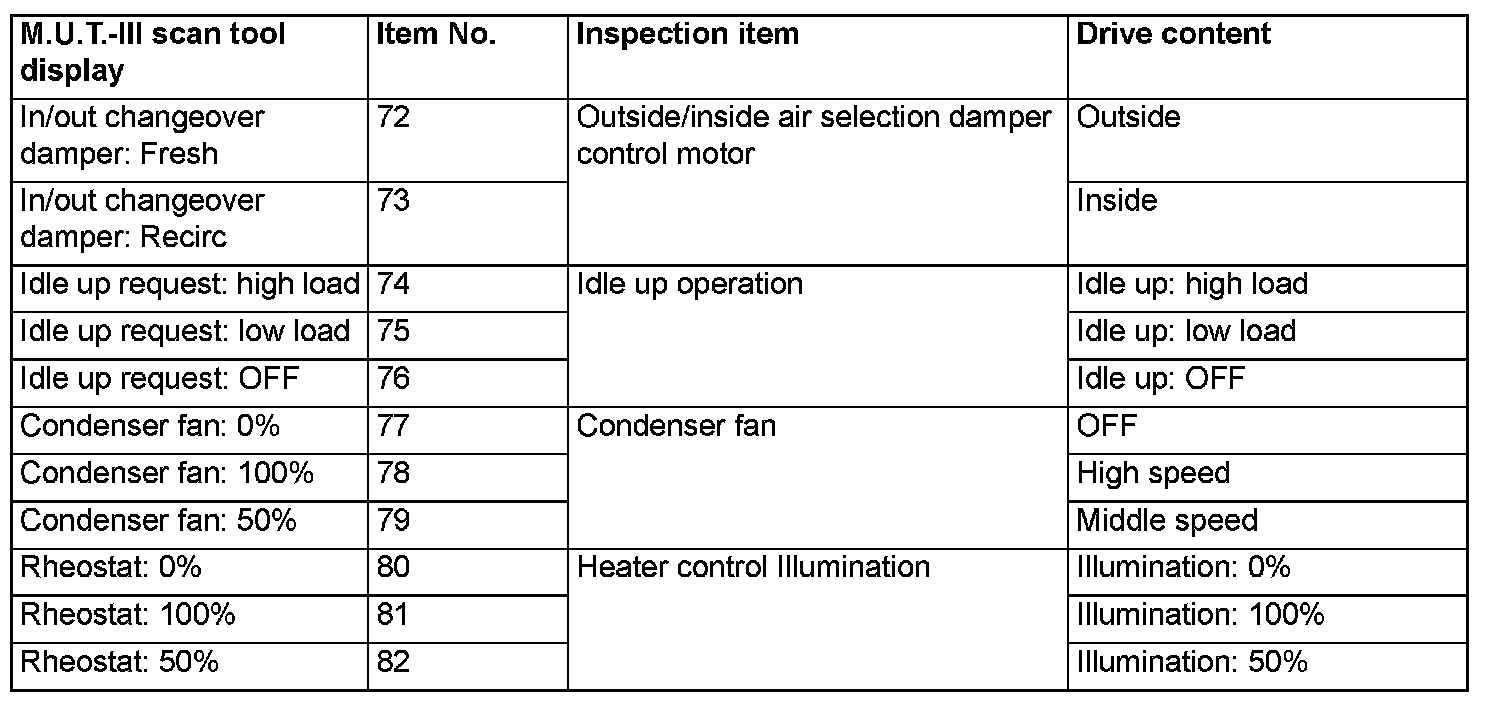

Actuator Test Reference (Part 2):
