Ambient Temperature Sensor / Switch HVAC: Testing and Inspection

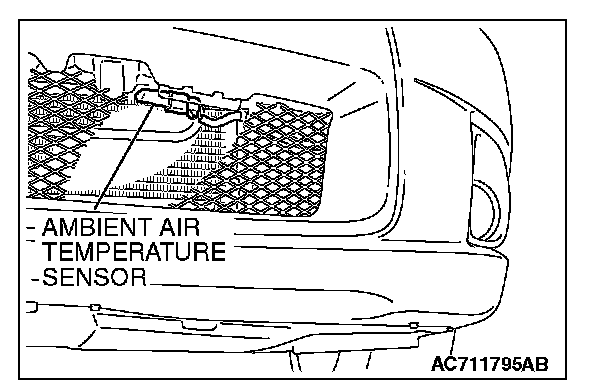

AMBIENT AIR TEMPERATURE SENSOR CHECK










CAUTION: The ambient air temperature sensor should be checked without removing it. If the sensor is removed, it is no longer serviceable.

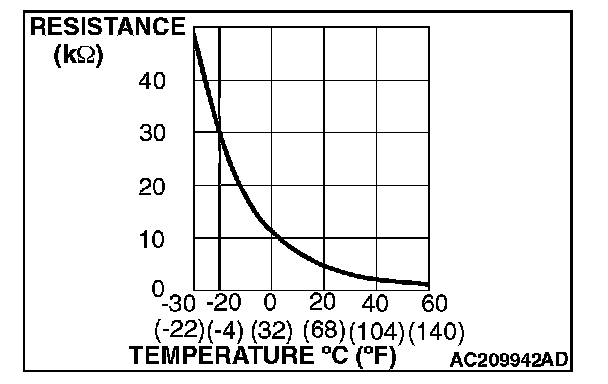

Measure the resistance between the sensor terminals under at least two temperatures. The resistance values should meet the values shown.

NOTE: The temperature and resistance should be within the shown range.
