Air Door: Service and Repair

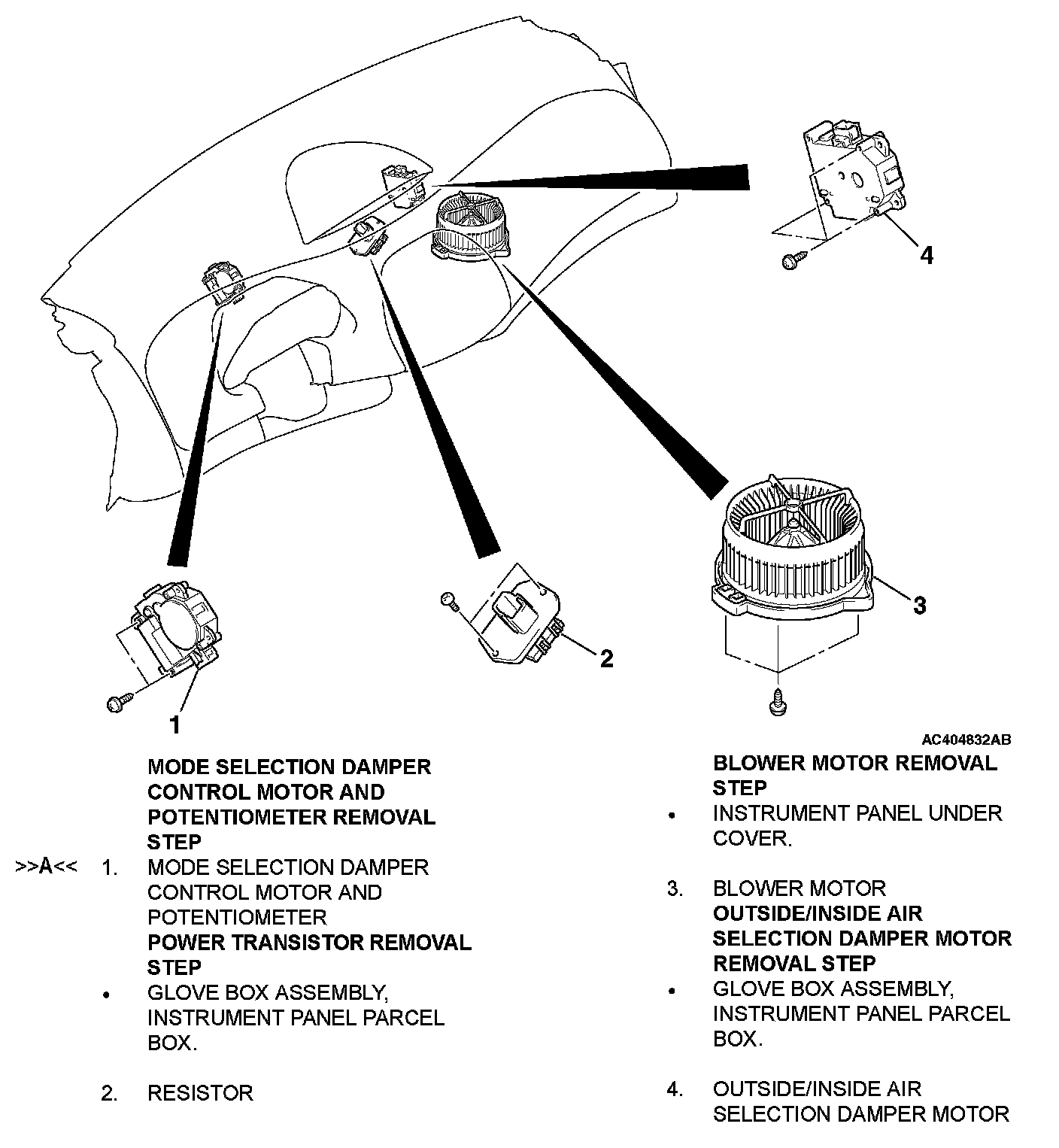

MOTORS AND TRANSISTORREMOVAL AND INSTALLATION
Removal Steps 1-4:
INSTALLATION SERVICE POINT

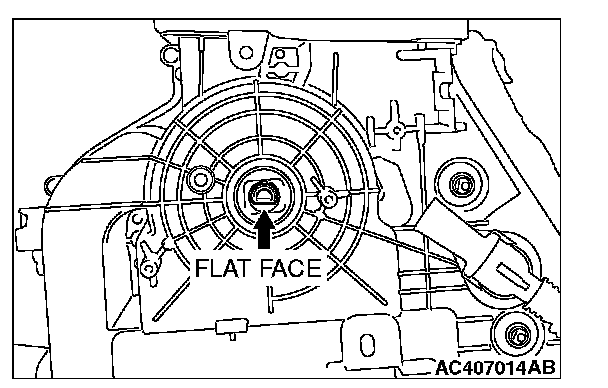

]]A[[ MODE SELECTION DAMPER CONTROL MOTOR AND POTENTIOMETER INSTALLATION
Place the flat face as shown downward and install.
REMOVAL AND INSTALLATION
INSTALLATION SERVICE POINT
]]A[[ MODE SELECTION DAMPER CONTROL MOTOR AND POTENTIOMETER INSTALLATION
Place the flat face as shown downward and install.
