Mode Selection Damper Control Motor and Potentiometer Check

MODE SELECTION DAMPER CONTROL MOTOR AND POTENTIOMETER CHECK

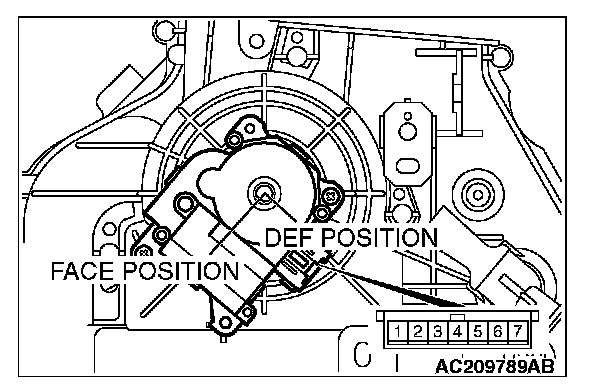

CAUTION: Do not apply battery voltage when the damper is in the FACE or DEF position.

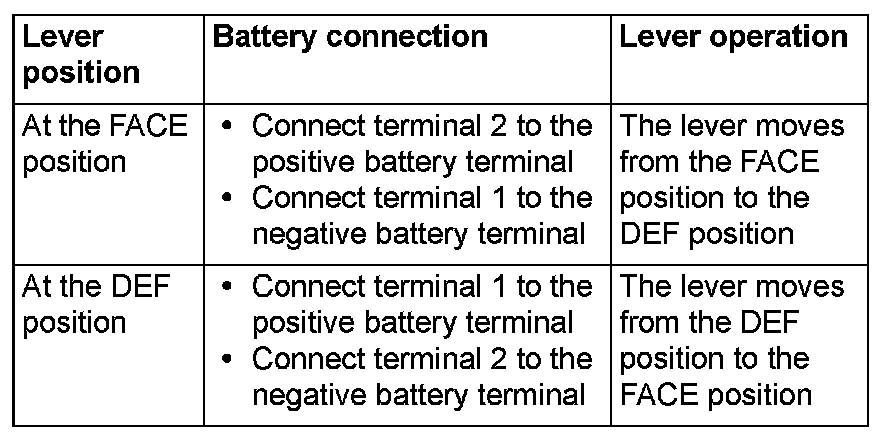

Check the mode selection damper control motor and potentiometer by the following procedures.
