Air Cleaner Housing: Service and Repair
AIR CLEANER

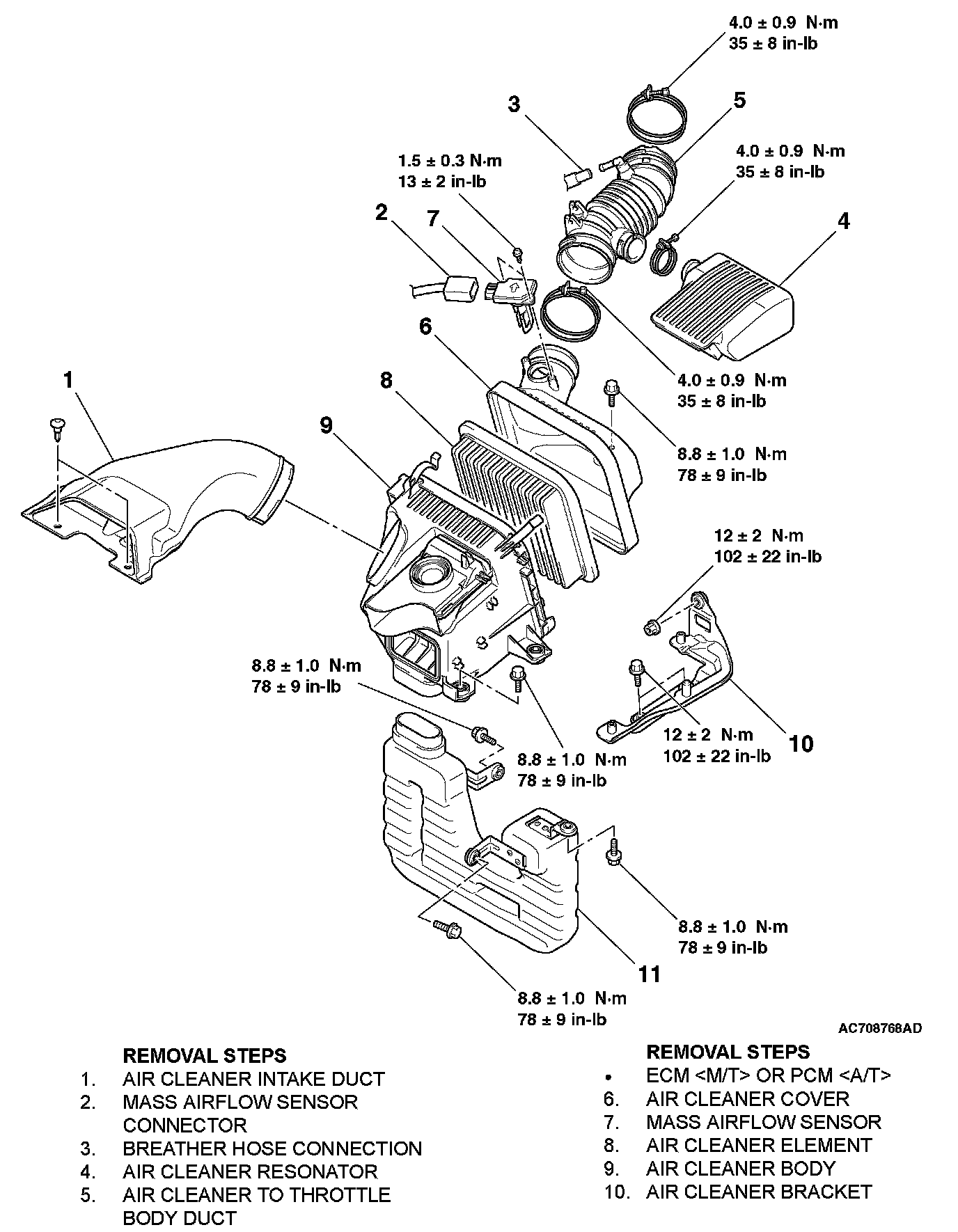

Removal Steps 1-11:

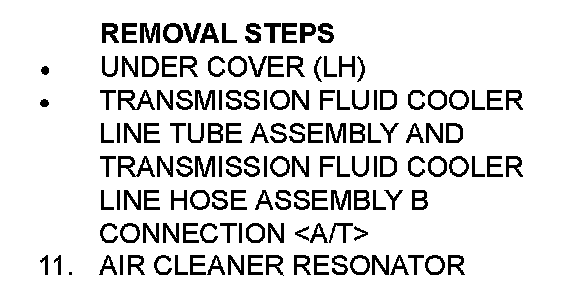

Removal Steps 1-11 (Part 1):

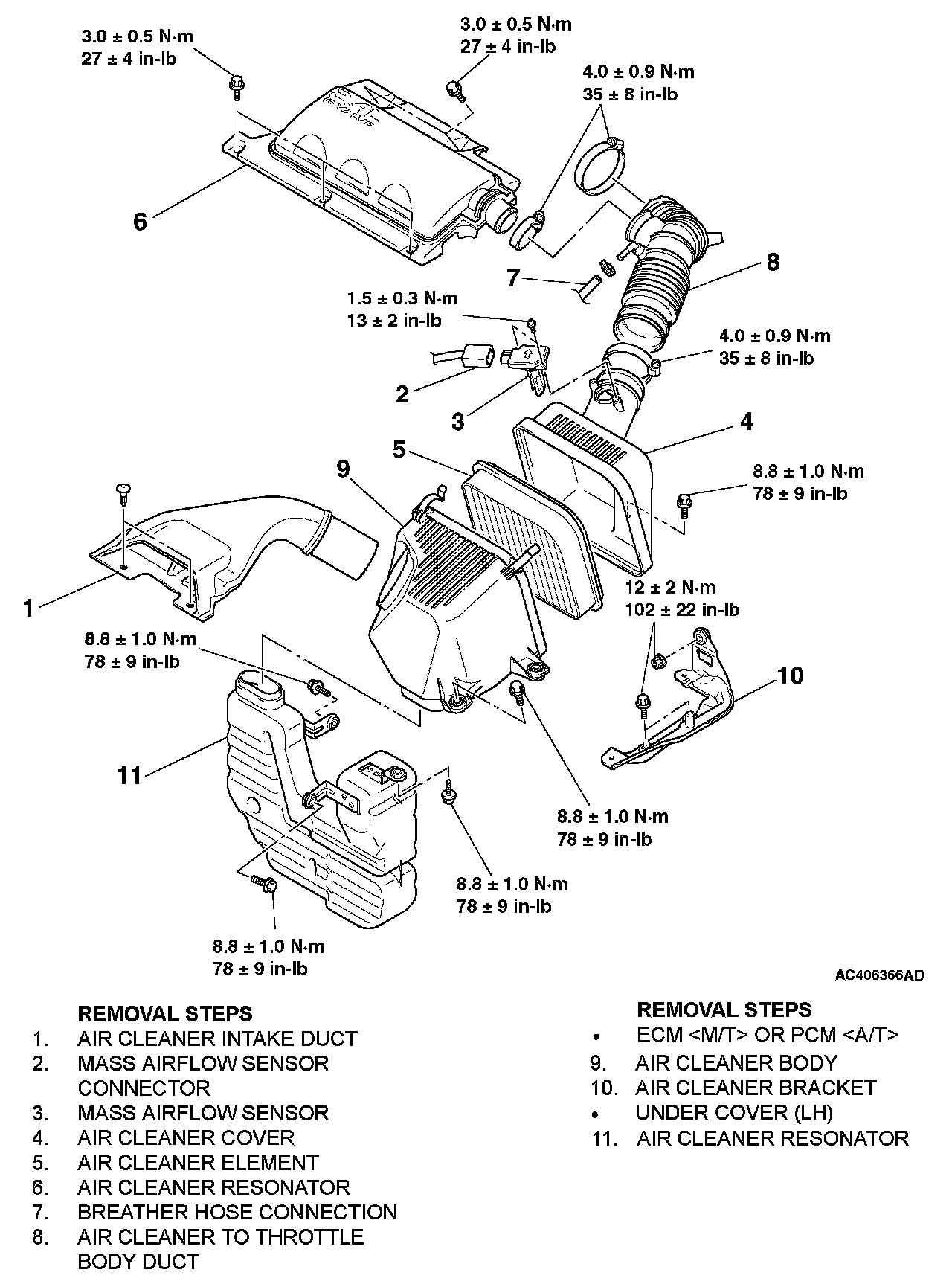

Removal Steps 1-11 (Part 2):
