FUEL AND EMISSION PARTS

REMOVAL AND INSTALLATION

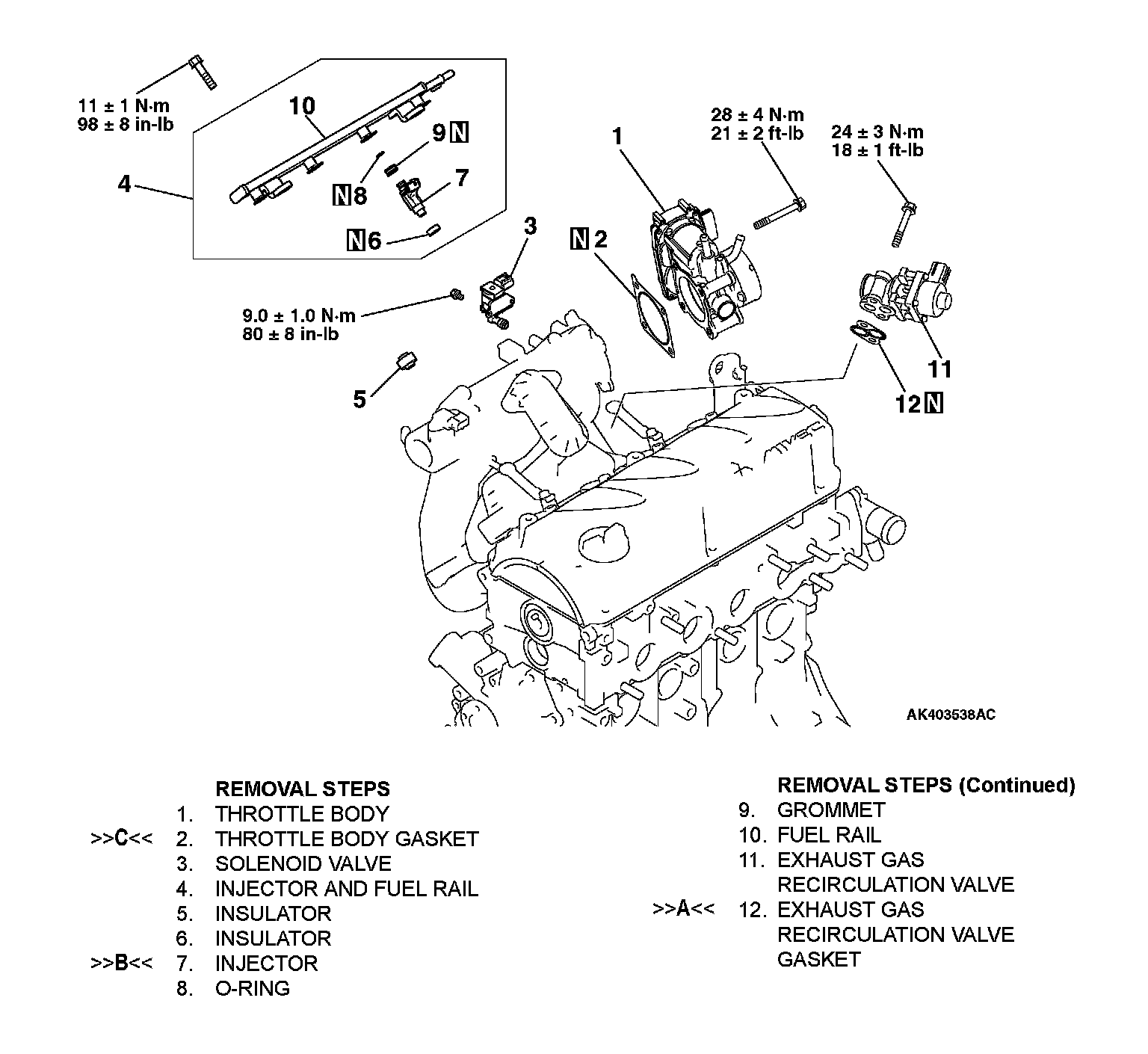

Removal Steps 1-12:

INSTALLATION SERVICE POINTS

[A] EXHAUST GAS RECIRCULATION VALVE GASKET INSTALLATION

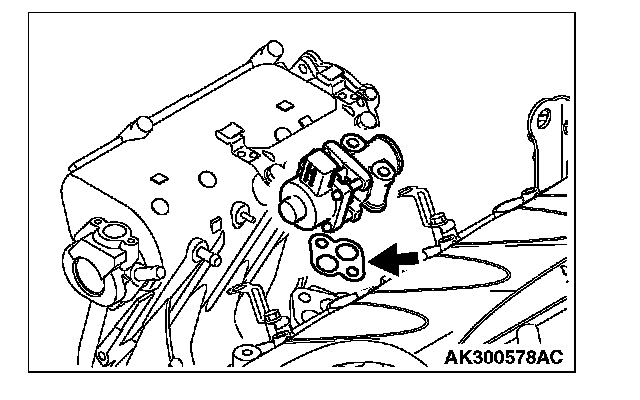

Install a new gasket in the position shown in the illustration.

[B] INJECTORS INSTALLATION





1. Apply clean gasoline to the O-ring.

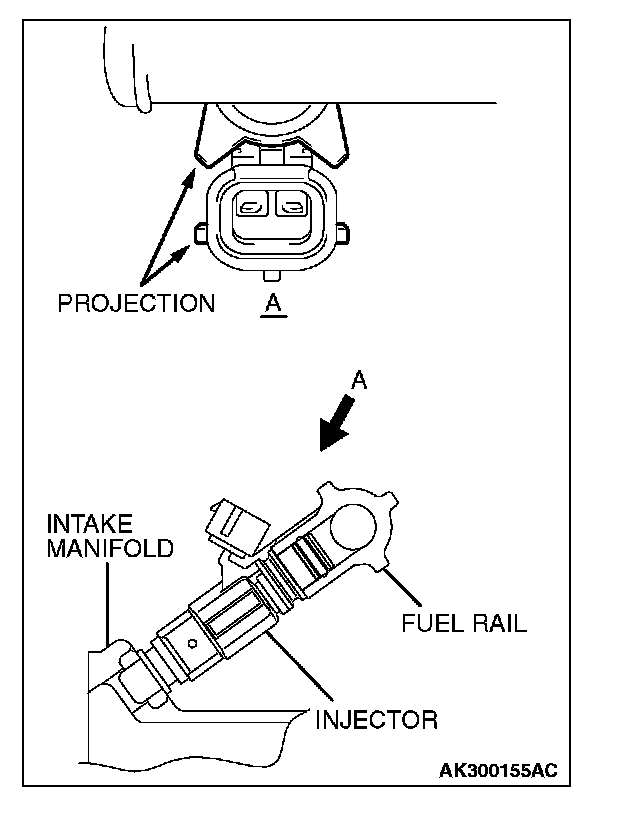

2. Insert the injector into the fuel rail.
3. Make sure the injector rotates smoothly.
If not, remove the injector to check the O-ring for damage, and replace the O-ring if necessary. Then, reinstall the injector and check that it rotates smoothly.

[C] THROTTLE BODY GASKET INSTALLATION

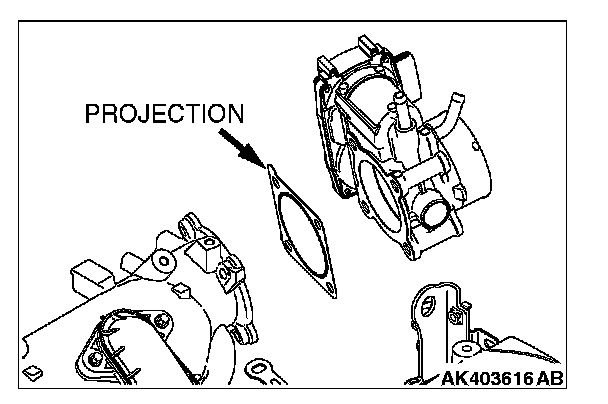

Install a new gasket so that the projection is positioned as shown in the illustration.
