Drive Belts, Mounts, Brackets and Accessories: Service and Repair

ENGINE ROLL STOPPER AND CENTERMEMBER

REMOVAL AND INSTALLATION

CAUTION
*: Indicates parts which should be initially tightened, and then fully tightened after placing the vehicle horizontally and loading the full weight of the engine on the vehicle body.

Pre-removal & Post-installation Operation:

Removal Steps 1-7:

INSTALLATION SERVICE POINTS

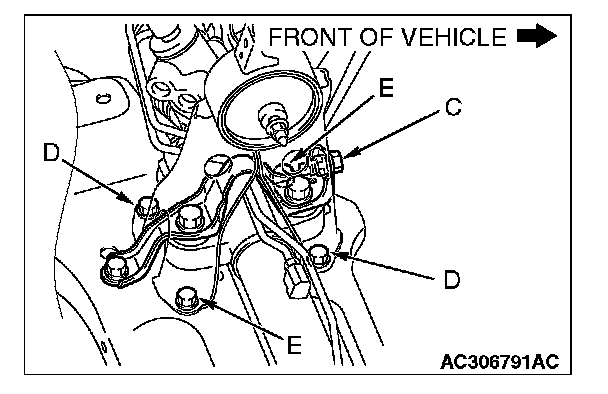

[A] ENGINE REAR ROLL STOPPER BRACKET INSTALLATION

Removal Steps 1-7:

Tighten the bolts in the following sequence:
1. Tighten bolts E finger tight.
2. Tighten bolt C and then tighten bolts D.
3. Tighten bolts E.

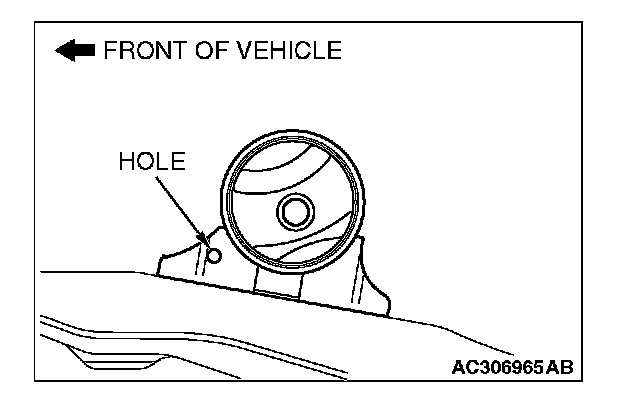

[B] ENGINE FRONT ROLL STOPPER BRACKET INSTALLATION





Install the engine front roll stopper bracket so that its hole points towards the front side of the vehicle.
