Engine: Description and Operation

General Description

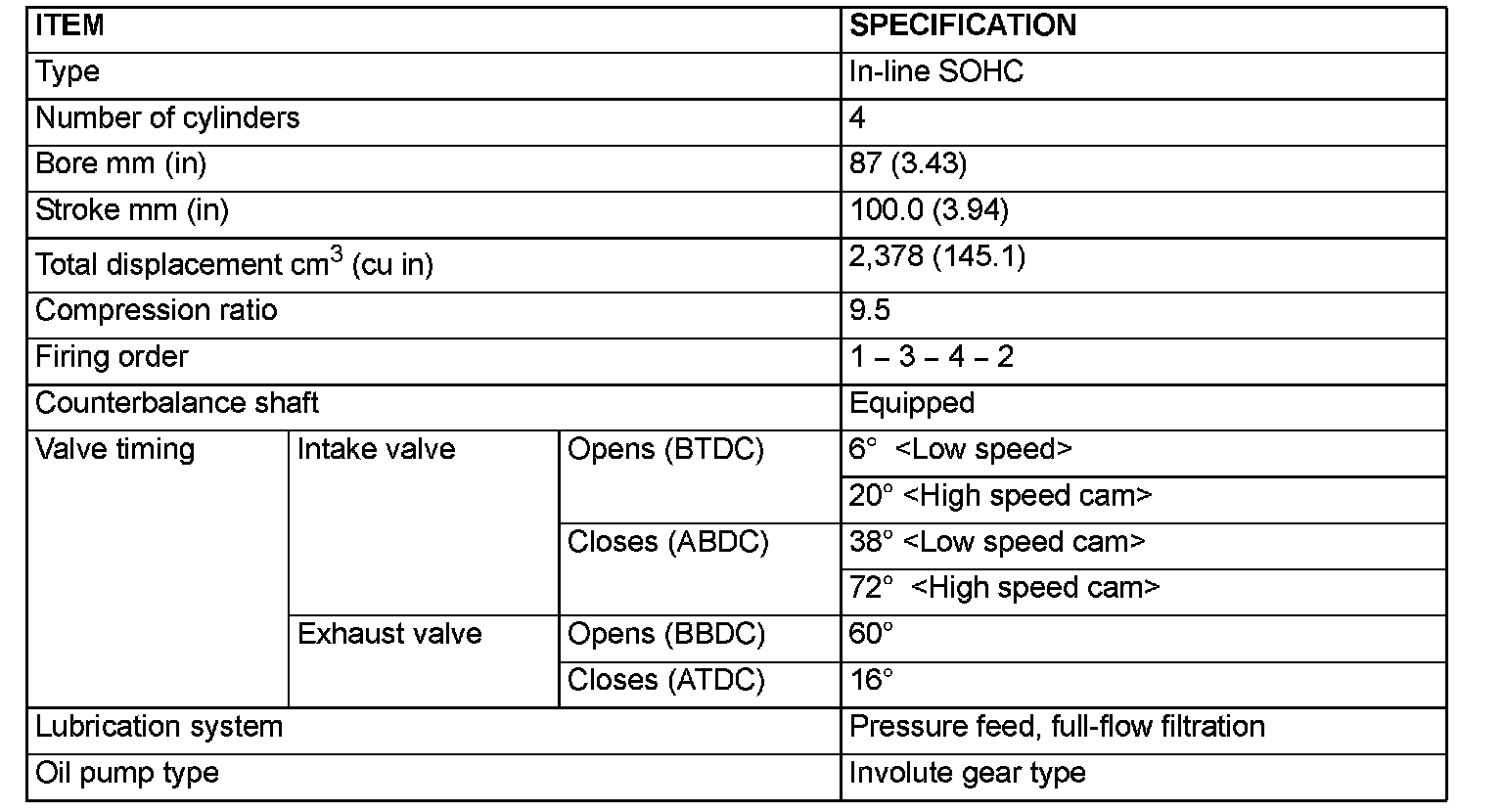

The 4G69 (2.4L) engine is an in-line four cylinder engine. The cylinder numbers are assigned a 1 - 2 - 3 - 4 from the front of the engine (timing belt side). This engine is fired in the order of the 1,3,4, and 2 cylinders.
