Cooling System: Description and Operation

GENERAL DESCRIPTION
The cooling system is a water-cooled pressurized, forced circulation type which offers the following features.
^ To stabilize engine coolant temperature, the thermostat is located at the coolant inlet port from the radiator.
^ To improve engine cooling performance and save weight, a plastic tank and aluminum radiator fins are used.
^ The speed of the fan motor is controlled by a fan control module. The engine control module (ECM) [M/T] or powertrain control module (PCM) [A/T] detects driving conditions and controls the controller so that the fan operating noise is minimized and fuel efficiency is improved [3.8L Engine].

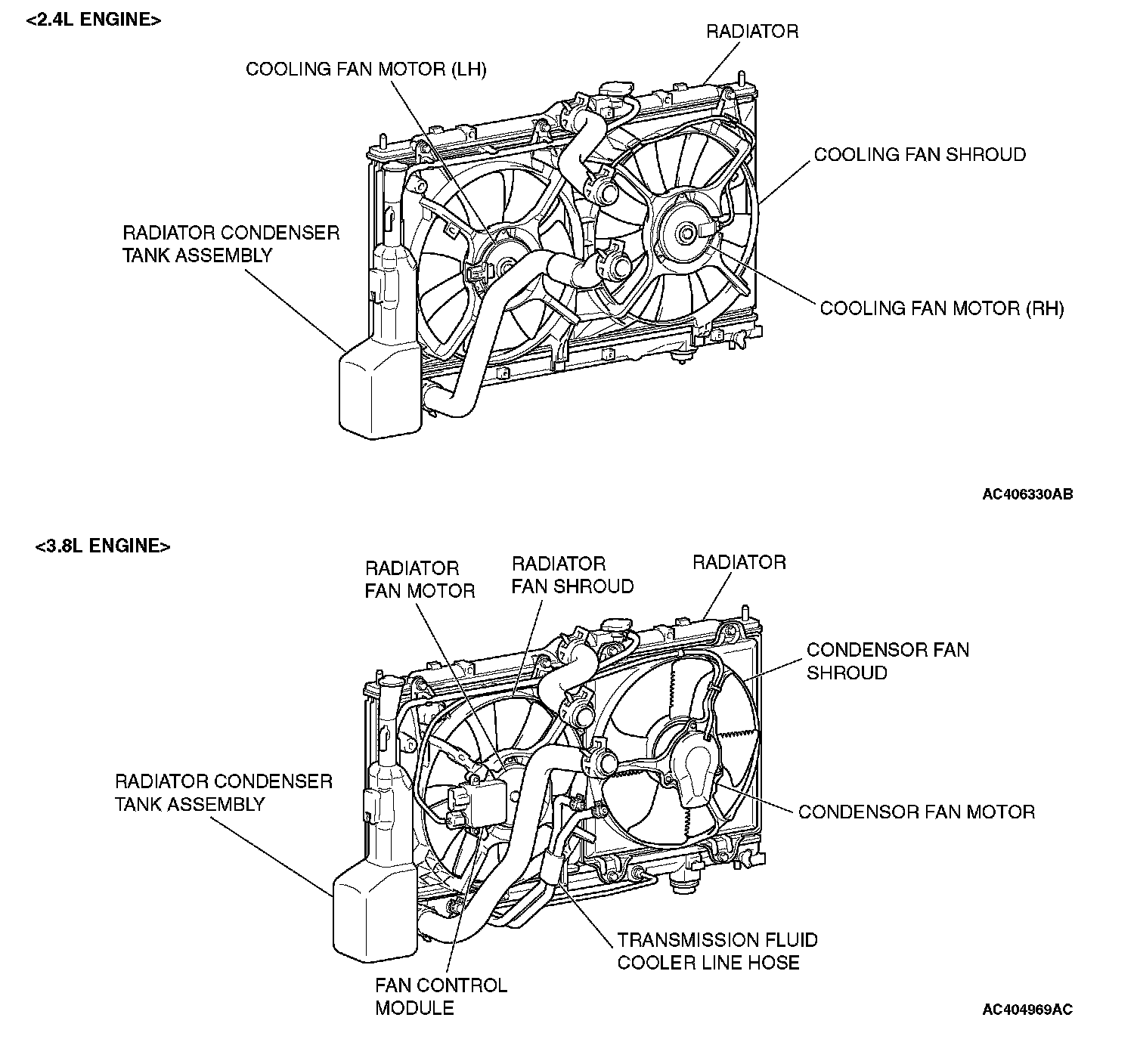

CONSTRUCTION DIAGRAM
