Underdrive Clutch and Input Shaft
Underdrive Clutch and Input Shaft

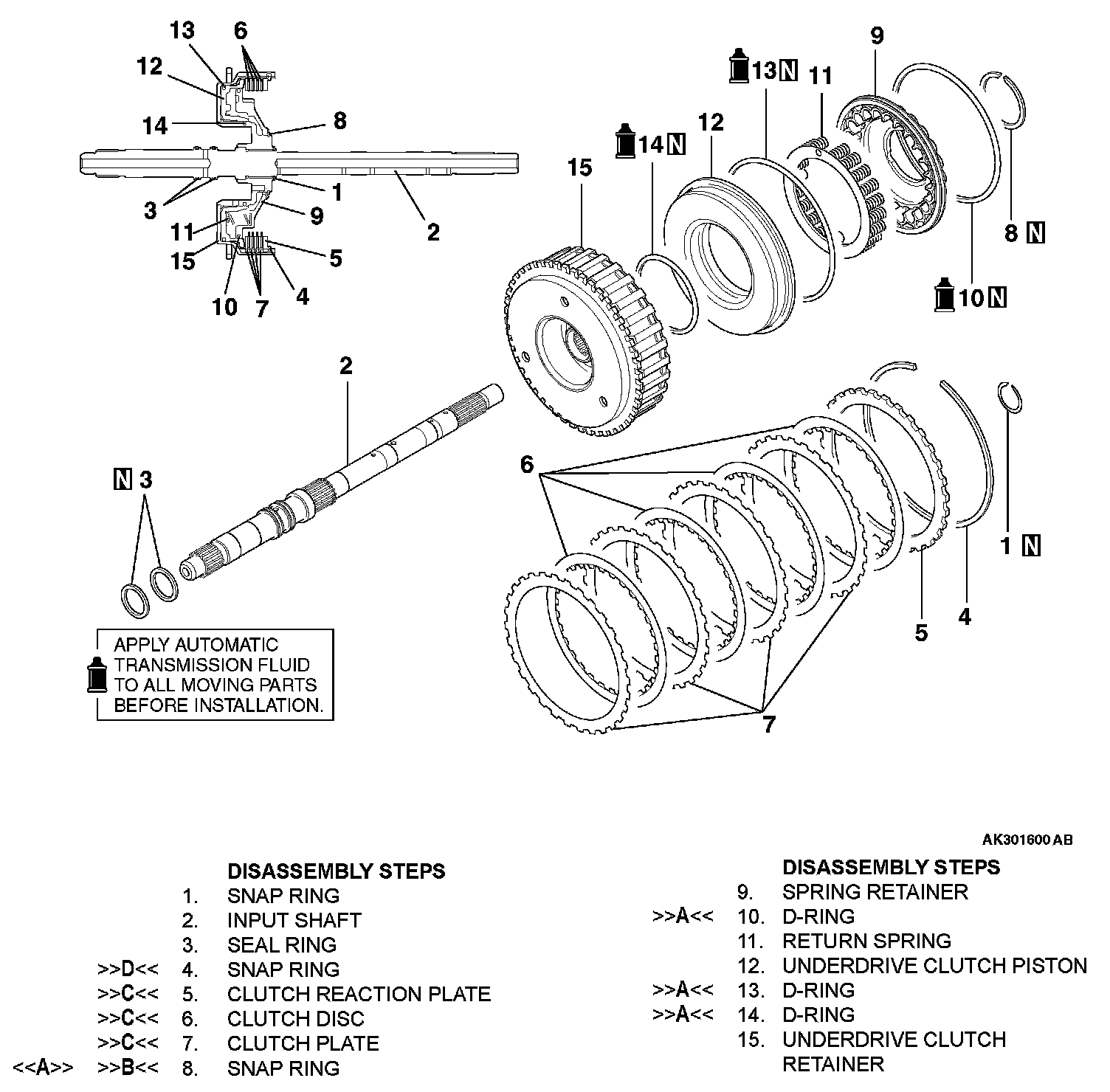

UNDERDRIVE CLUTCH AND INPUT SHAFT
DISASSEMBLY AND ASSEMBLY
Disassembly Steps 1-15:
