Vehicles With Discharge Type Headlight

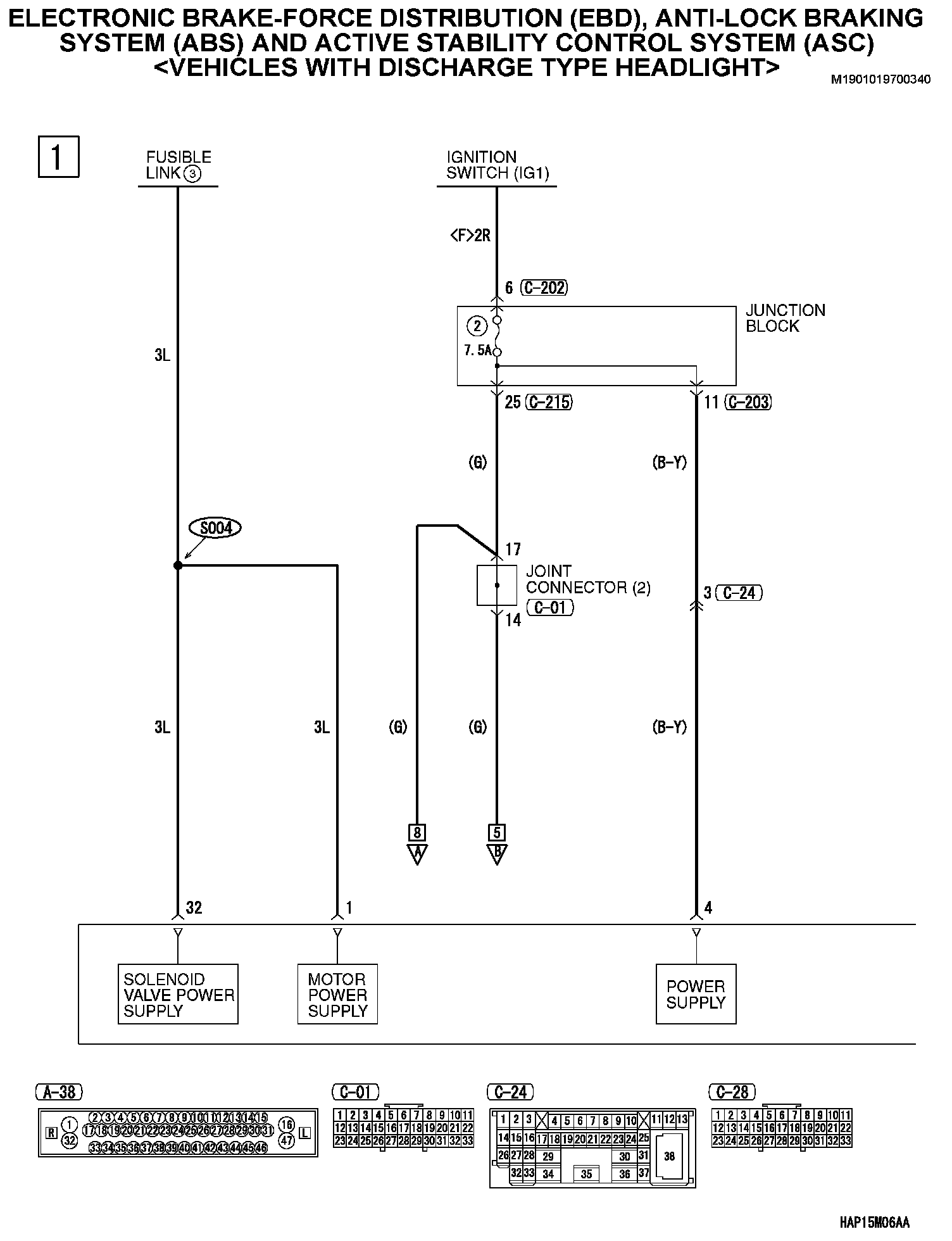

EBD, ABS and ASC [Vehicles With Discharge Type Headlight] (Part 1):

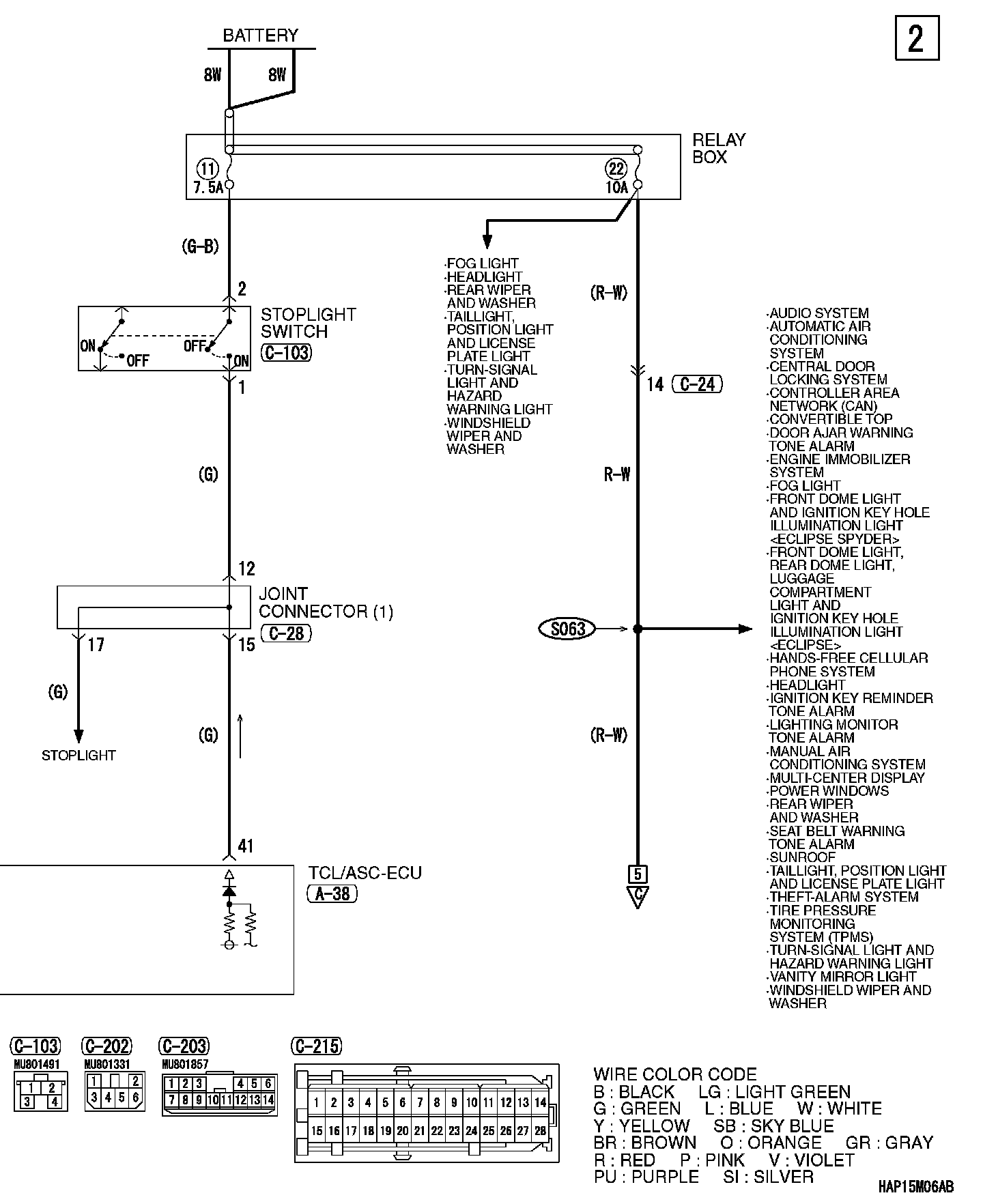

EBD, ABS and ASC [Vehicles With Discharge Type Headlight] (Part 2):

EBD, ABS and ASC [Vehicles With Discharge Type Headlight] (Part 3):

EBD, ABS and ASC [Vehicles With Discharge Type Headlight] (Part 4):

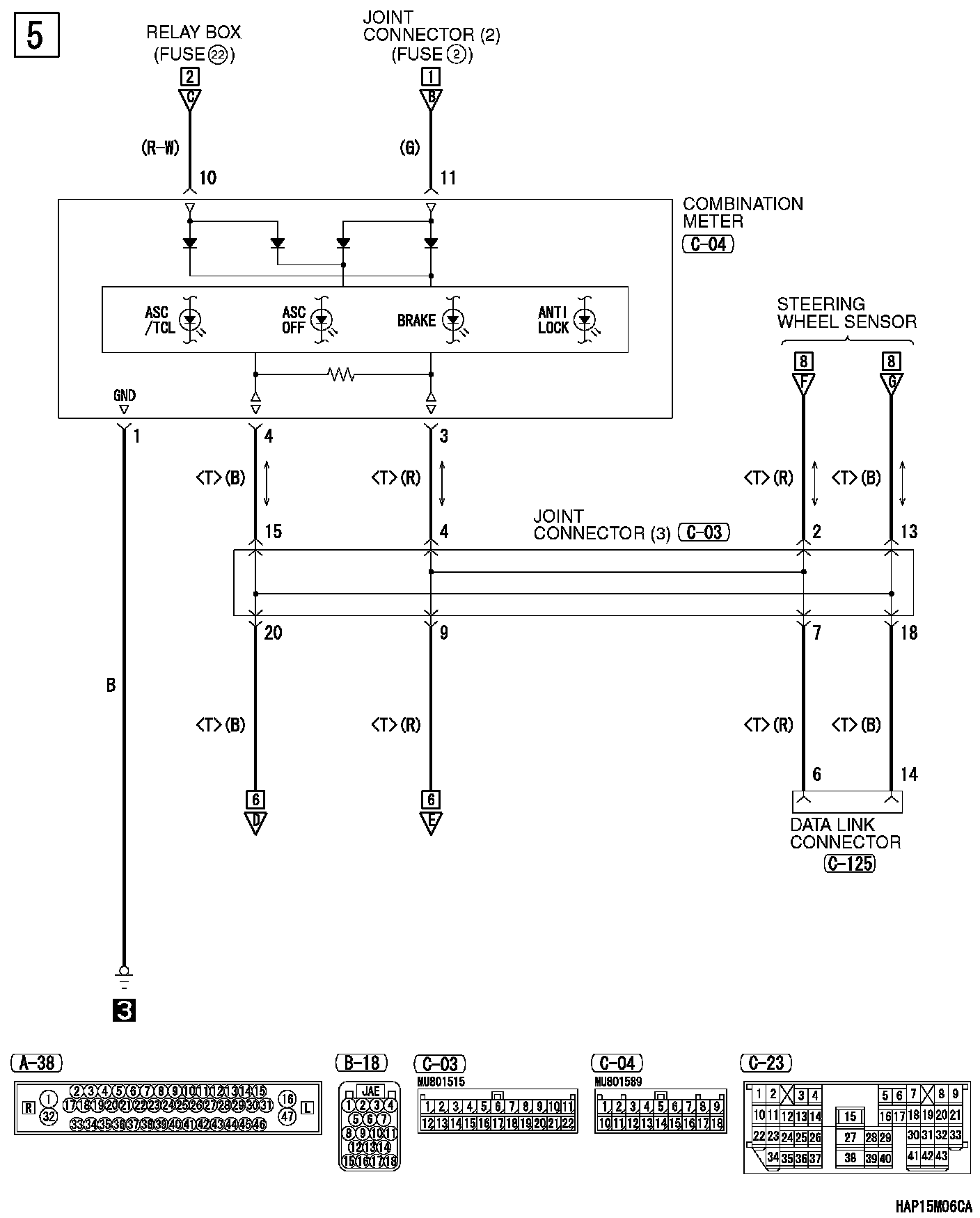

EBD, ABS and ASC [Vehicles With Discharge Type Headlight] (Part 5):

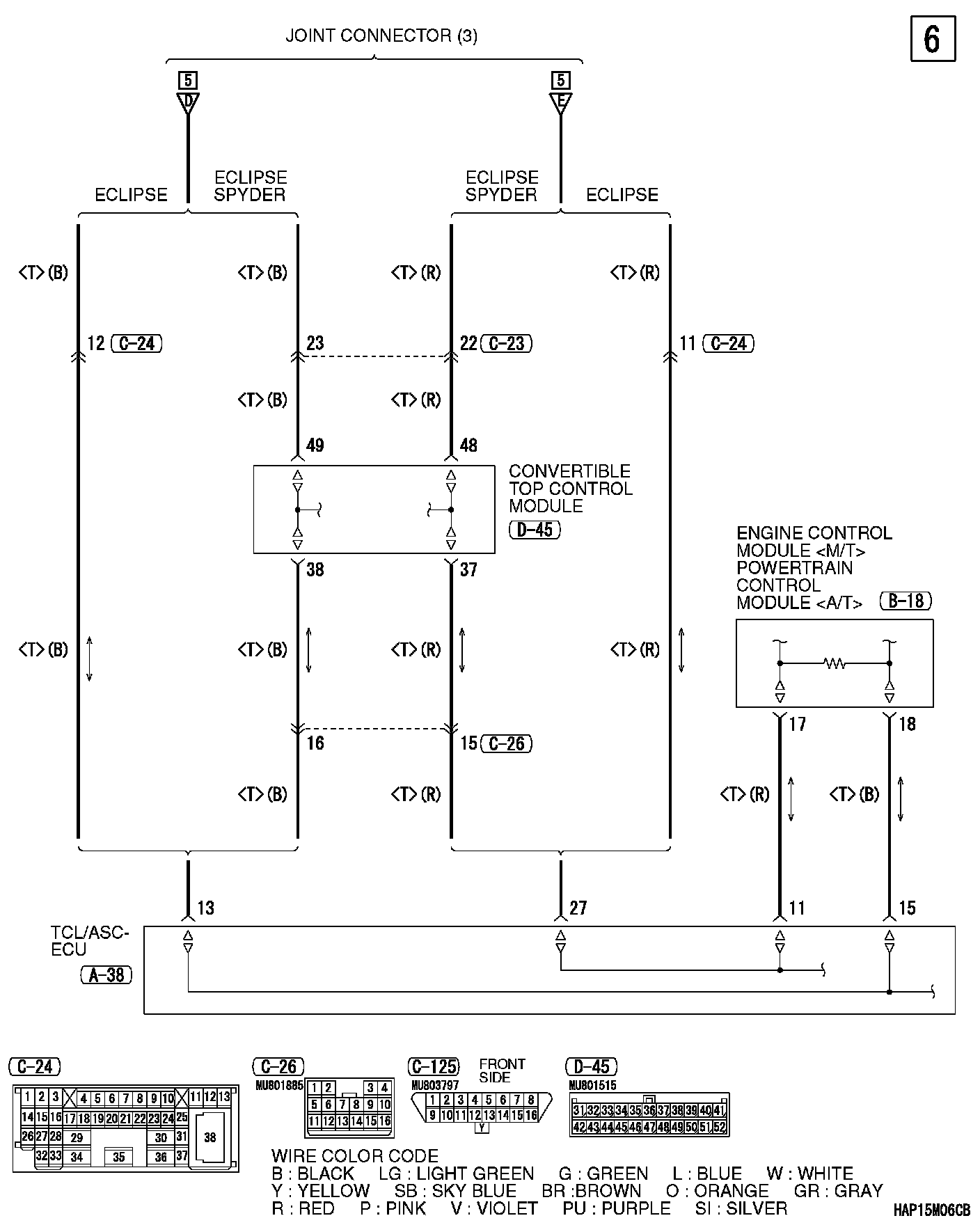

EBD, ABS and ASC [Vehicles With Discharge Type Headlight] (Part 6):

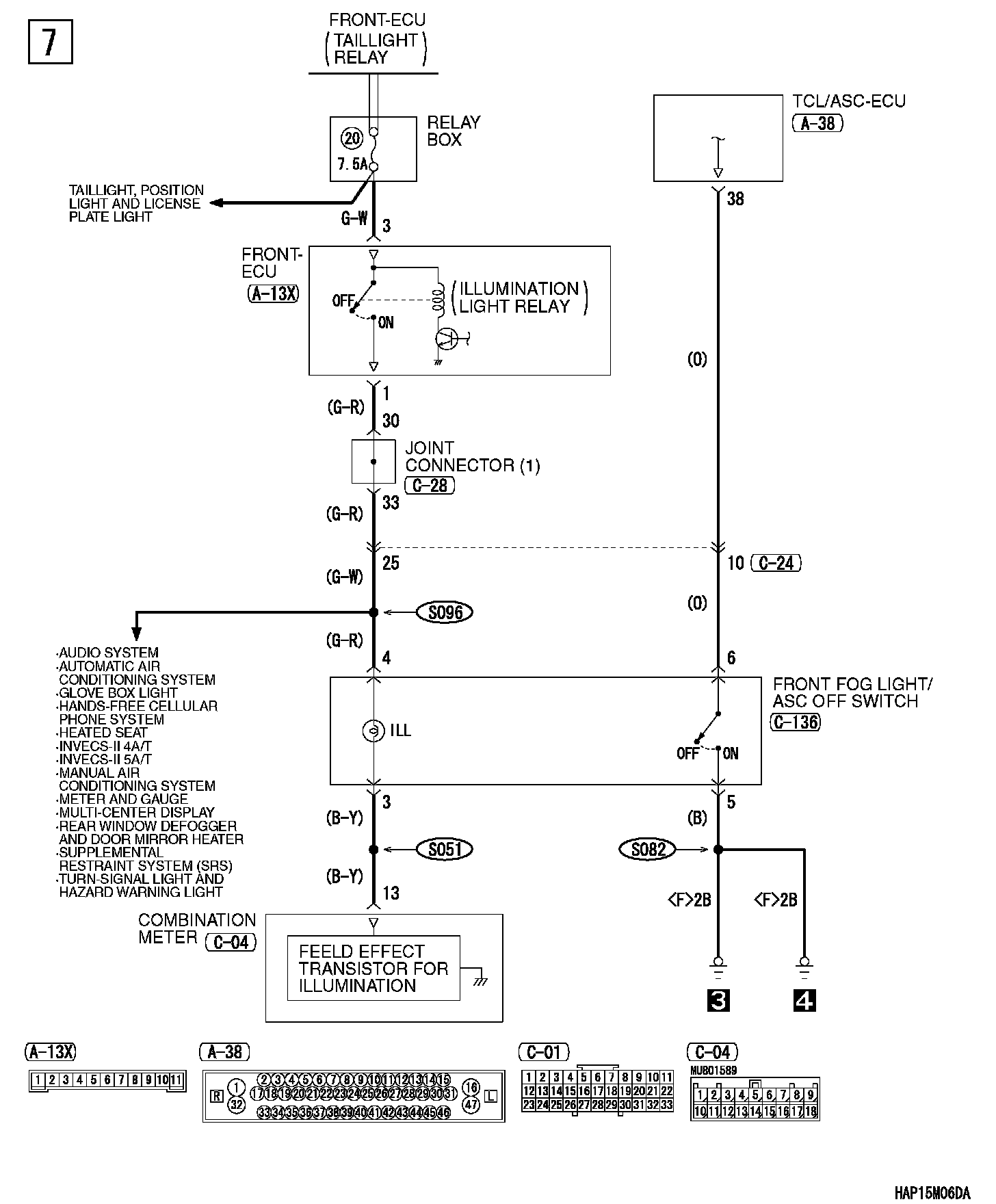

EBD, ABS and ASC [Vehicles With Discharge Type Headlight] (Part 7):

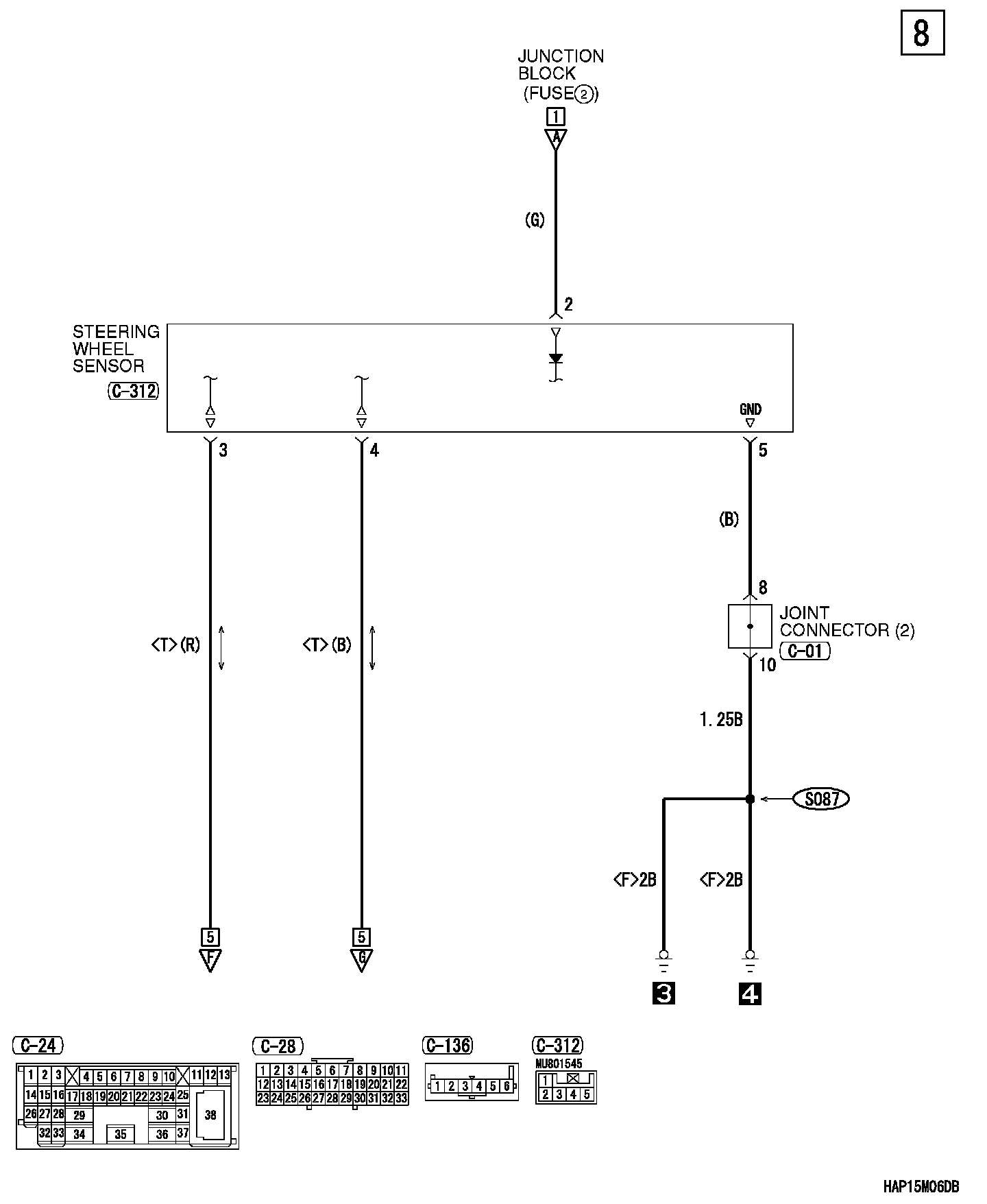

EBD, ABS and ASC [Vehicles With Discharge Type Headlight] (Part 8):

Connector/Component Locations: The locations of connectors and components referred to within these diagrams can be found via the connector number at Vehicle Connector Locations. Connector Locations

Splice Locations: The locations of Splices referred to within these diagrams can be found via the splice number at Vehicle Splice Locations. Splice Locations

Ground Locations: The locations of grounds referred to within these diagrams can be found via the ground number at Vehicle Ground Locations. Ground Locations
