CLUTCH PEDAL POSITION SWITCH (M/T)
1.
Disconnect the connector.
2.

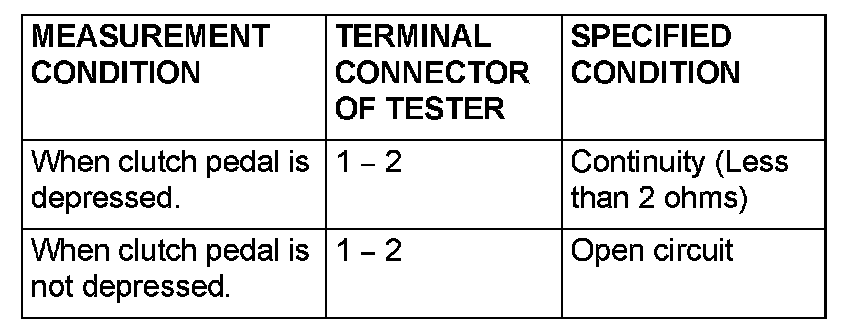

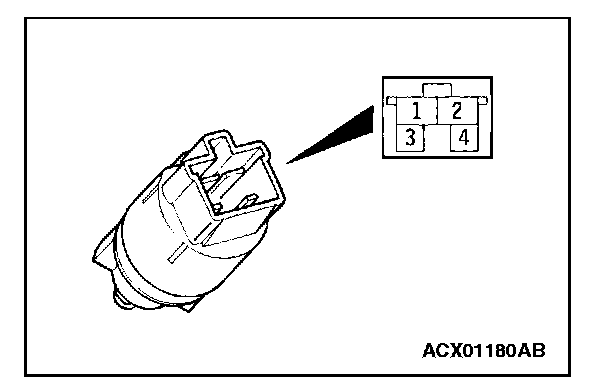

Check for continuity between the terminals of the switch.
