Vacuum Brake Booster Check Valve: Testing and Inspection

CHECK VALVE OPERATION CHECK

CAUTION
The check valve should not be removed from the vacuum hose.

1. Remove the vacuum hose.

CAUTION
If the check valve is defective, replace it as an assembly together with the vacuum hose.

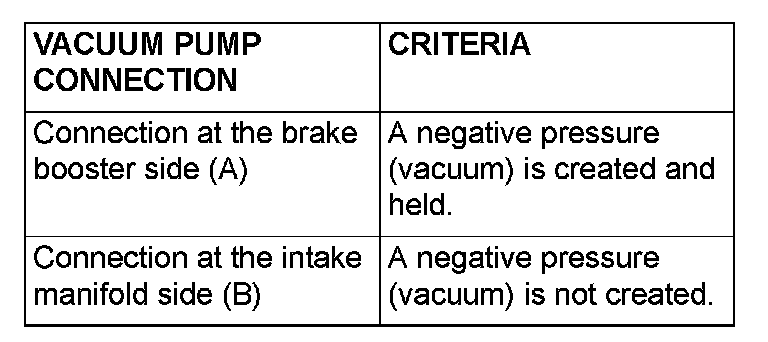

2. Check the operation of the check valve by using a vacuum pump.
