INSPECTION PROCEDURE 6: When the Ignition Switch is Turned to the "ON" Position (Engine Stopped), the TCL/ASC Work Indicator does not Illuminate.

INSPECTION PROCEDURE 7: The "ASC OFF" Indicator Remains Illuminated After the Engine is Started.

INSPECTION PROCEDURE 8: The TCL/ASC Work Indicator Remains Illuminated After the Engine is Started.

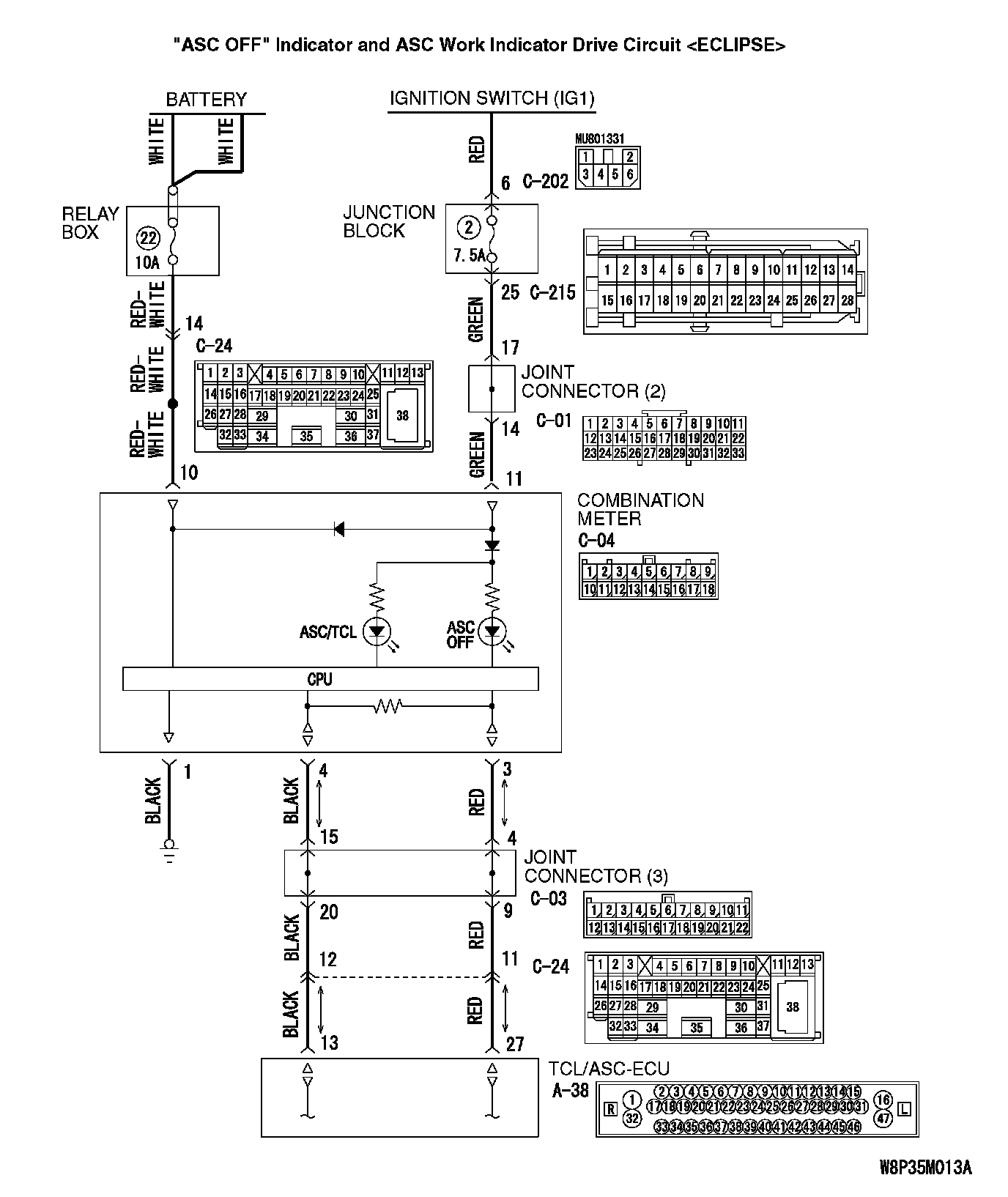

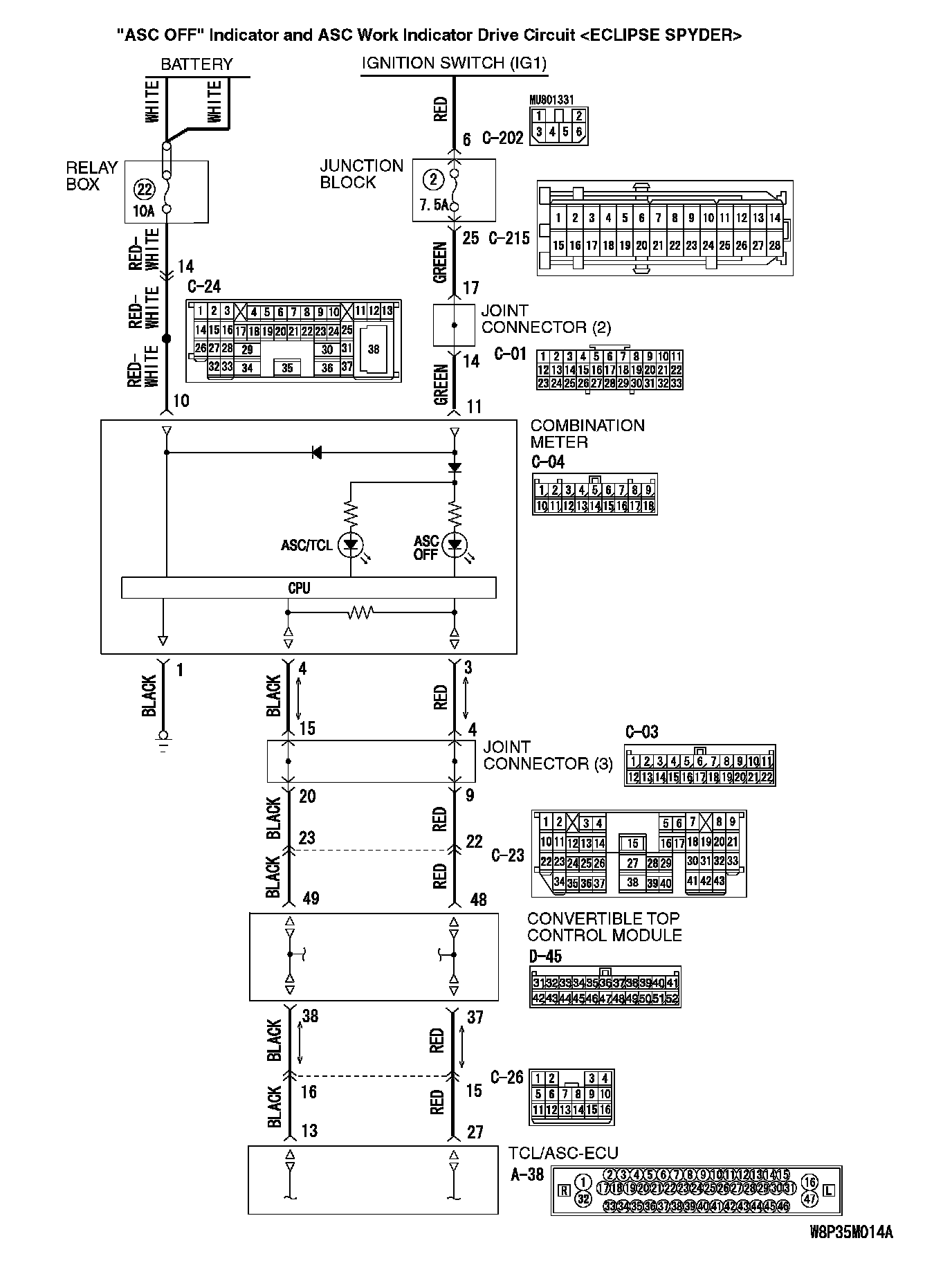

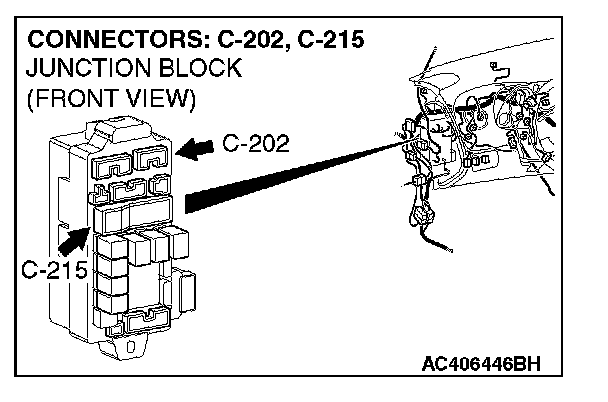

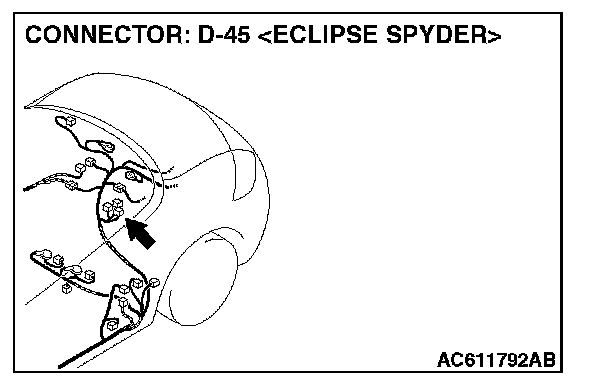

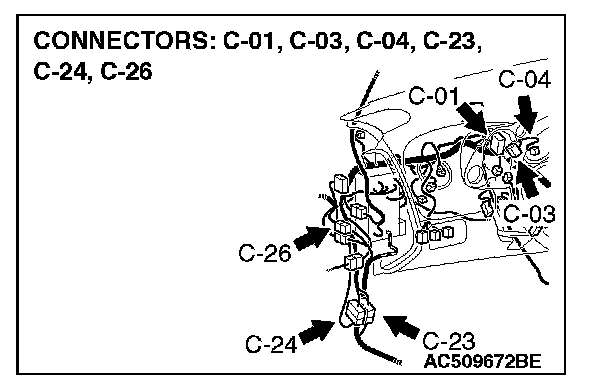

CIRCUIT OPERATION
^ TCL/ASC-ECU send the illumination signal of "ASC OFF" indicator and TCL/ASC work indicator to the combination meter via the CAN communication.
^ TCL/ASC-ECU operates the "ASC OFF" indicator and the TCL/ASC work indicator for three seconds after the ignition switch is turned "ON" position for bulb check.

COMMENT
This may be caused by faults in the CAN bus line, the combination meter or the TCL/ASC-ECU.

TROUBLESHOOTING HINTS
^ Malfunction of the combination meter
^ Damaged harness, connector
^ Malfunction of the TCL/ASC-ECU

DIAGNOSIS

Required Special Tools:
^ MB991958: Scan Tool (M.U.T.-III Sub Assembly)
^ MB991824: Vehicle Communication Interface (V.C.I.)
^ MB991827: M.U.T.-III USB Cable
^ MB991910: M.U.T.-III Main Harness A

STEP 1. Using scan tool MB991958, diagnose the CAN bus line.

CAUTION

To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.

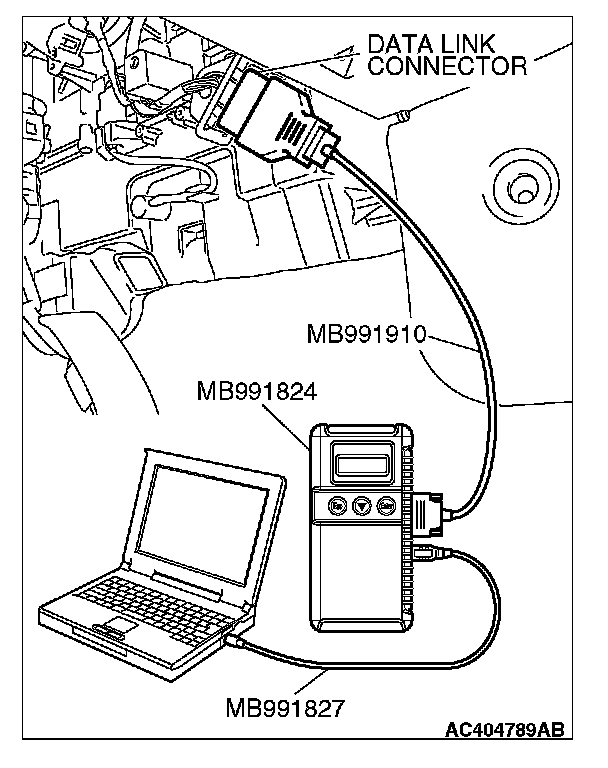

1) Connect scan tool MB991958 to the data link connector.
2) Turn the ignition switch to the "ON" position.
3) Diagnose the CAN bus line.
4) Turn the ignition switch to the "LOCK" (OFF) position.
5) Disconnect scan tool MB991958.
Q: Is the check result satisfactory?
YES: Go to Step 2
NO: Repair the CAN bus lines. (Refer to Diagnosis - Can Bus Diagnostic Chart CAN Bus Diagnostics Table). Then go to Step 4.

STEP 2. Using scan tool MB991958, read the diagnostic trouble code.

CAUTION

To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.

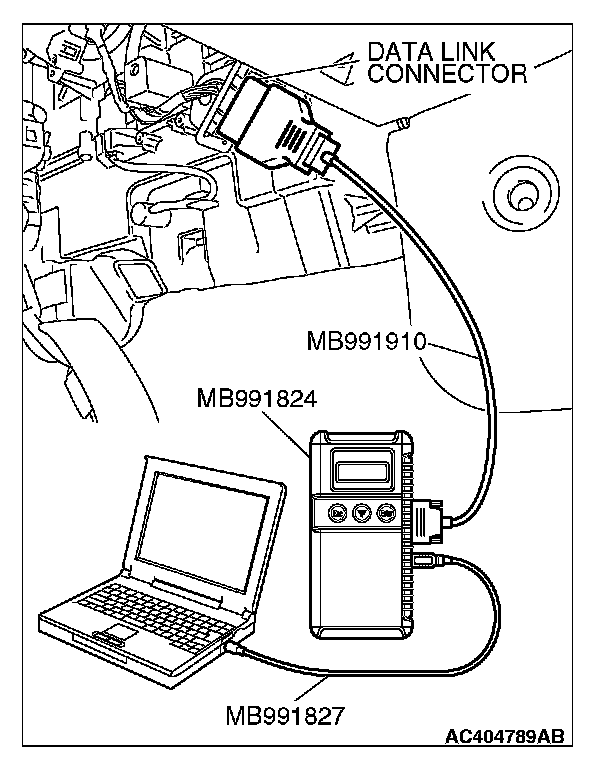

1) Connect scan tool MB991958 to the data link connector.
2) Turn the ignition switch to the "ON" position.
3) Use scan tool MB991958 to read the TCL/ASC diagnostic trouble codes. (Refer to How to Connect the Scan Tool (M.U.T.-III)).
4) Turn the ignition switch to the "LOCK" (OFF) position.
5) Disconnect scan tool MB991958.
Q: Is any DTC set?
YES: Refer to Diagnostic Trouble Code Chart. Diagnostic Trouble Code Descriptions Then go to Step 4.
NO: Go to Step 3.

STEP 3. Using scan tool MB991958, read the diagnostic trouble code.

CAUTION

To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.

1) Connect scan tool MB991958 to the data link connector.
2) Turn the ignition switch to the "ON" position.
3) Check for Combination meter system diagnostic trouble code. (Refer to Combination Meter Assembly Diagnosis - Diagnosis Function - How to Read and Erase Diagnostic Trouble Code How to Read and Erase Diagnostic Trouble Codes).
4) Turn the ignition switch to the "LOCK" (OFF) position.
5) Disconnect scan tool MB991958.
Q: Is DTC U1102 set?

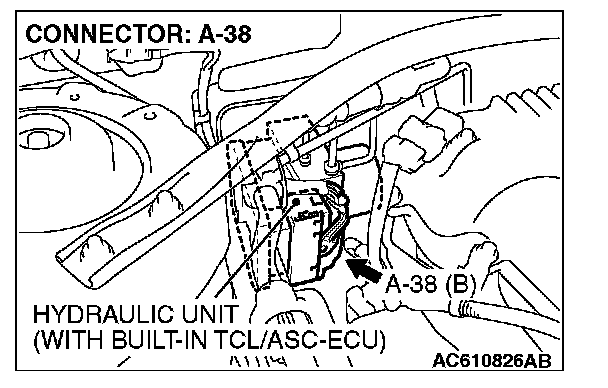

YES: Replace the hydraulic unit (integrated with TCL/ASC-ECU). Then go to Step 4.
NO: Replace the combination meter assembly. Then go to Step 4.

STEP 4. Retest the system
Q: Turn the ignition switch to the "ON" position. Do the "ASC OFF" indicator and the TCL/ASC work indicator illuminate for three seconds, and then go out after the engine starts?
YES: The procedure is complete.
NO: Return to Step 1.
