Data List Reference Table

DATA LIST REFERENCE TABLE
The following items can be read by the scan tool from the TCL/ASC-ECU input data.

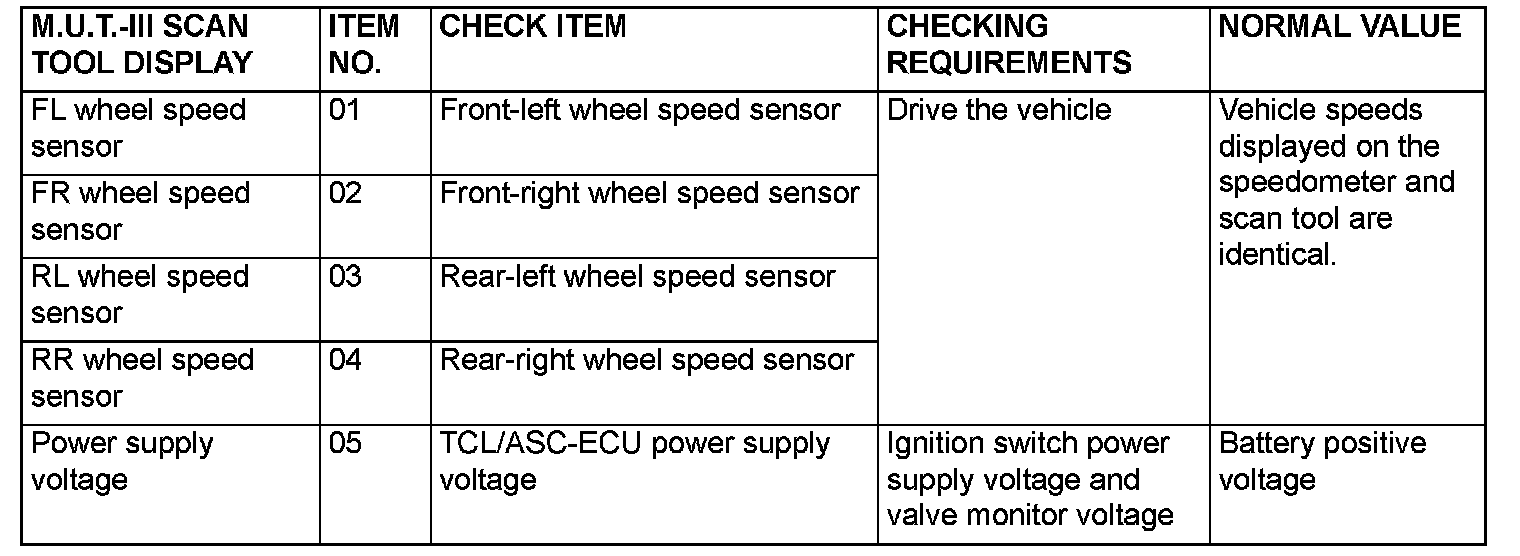

Part 1:

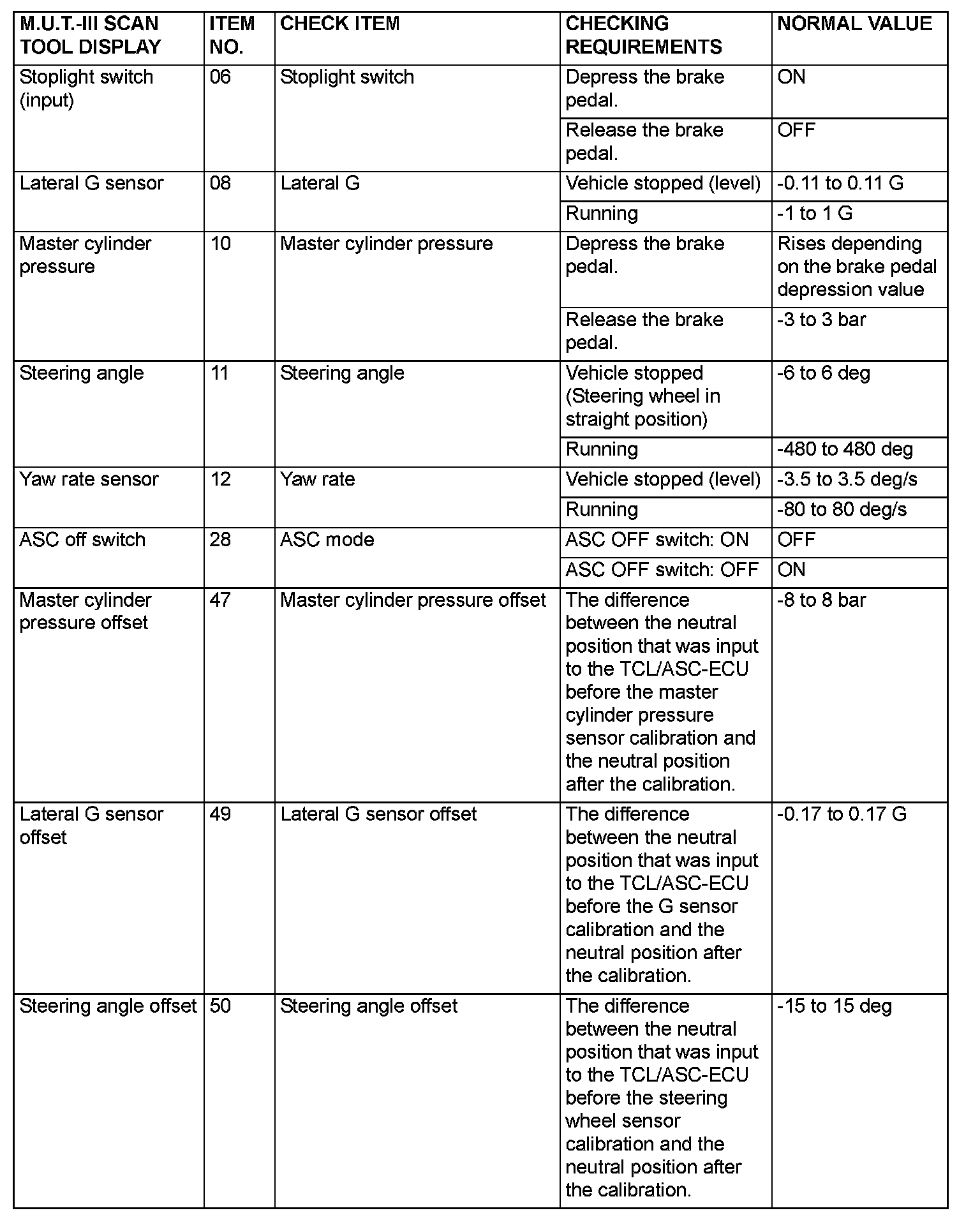

Part 2:
