Rear Seat Assembly

REAR SEAT ASSEMBLY

REMOVAL AND INSTALLATION

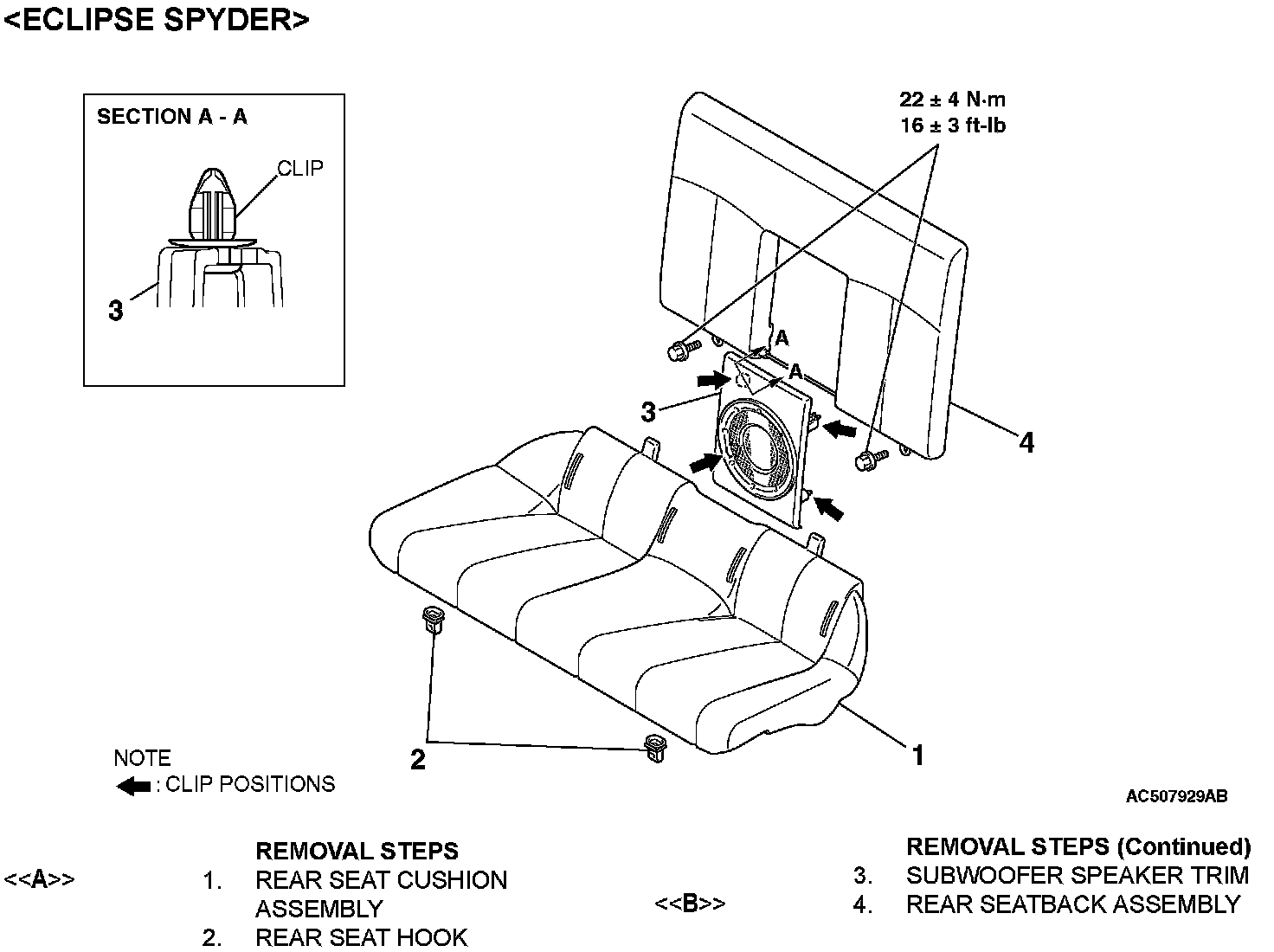

Removal Steps 1-4:

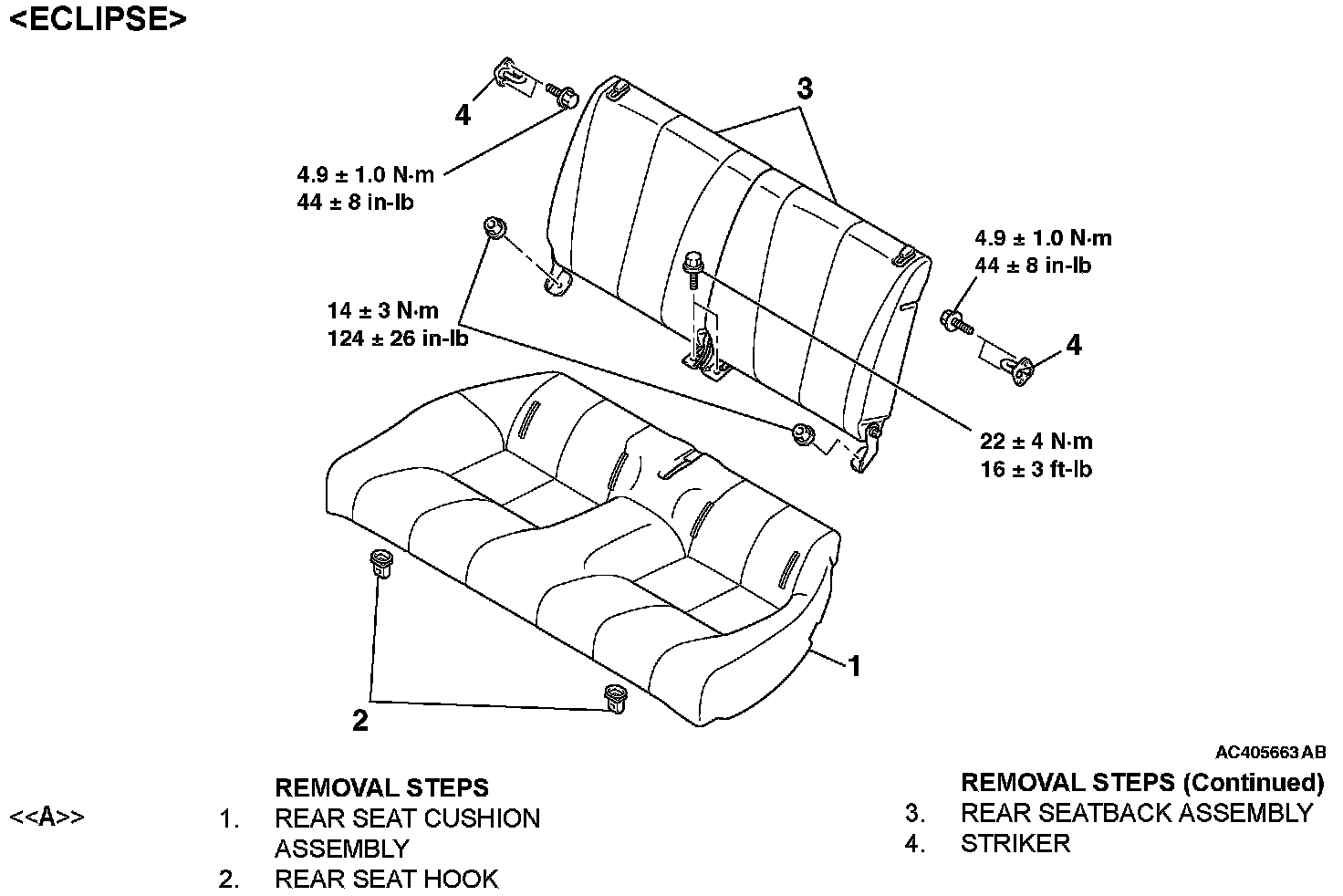

Removal Steps 1-4:

INSTALLATION SERVICE POINTS

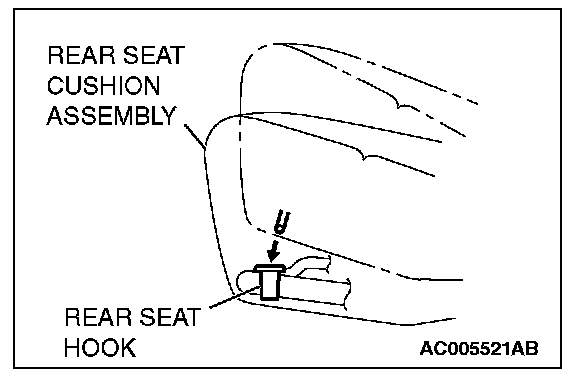

[[A]] INSTALLATION OF REAR SEAT CUSHION ASSEMBLY







Fit the rear seat cushion into the rear seat hook securely.

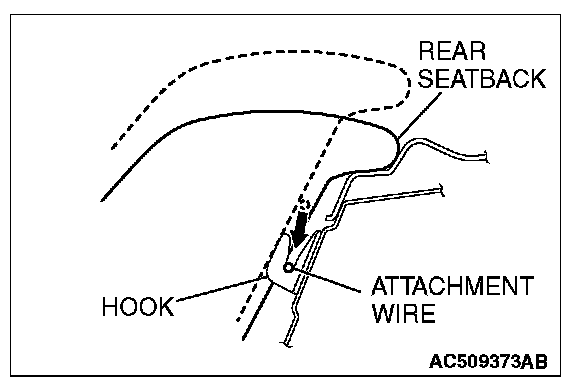

[[B]] INSTALLATION OF REAR SEATBACK ASSEMBLY







Push the rear seatback in the direction indicated in the illustration; then securely attach the attachment wire to the body side hook and install the rear seatback.
