Front Seat Assembly

FRONT SEAT ASSEMBLY

REMOVAL AND INSTALLATION

WARNING:
- Before removing the front seat assembly, refer to SRS, Service Precautions and Air Bag Module and Clock Spring.
- When removing and installing the front passenger seat, be sure to carry out accuracy check of occupant classification sensor after the seat has been installed in the vehicle. (Refer to SRS, On-vehicle Service.)

CAUTION: Do not impact the seat. If any impact is applied to the seat, the occupant classification sensor transmitting error may occur.

Post-installation Operation:

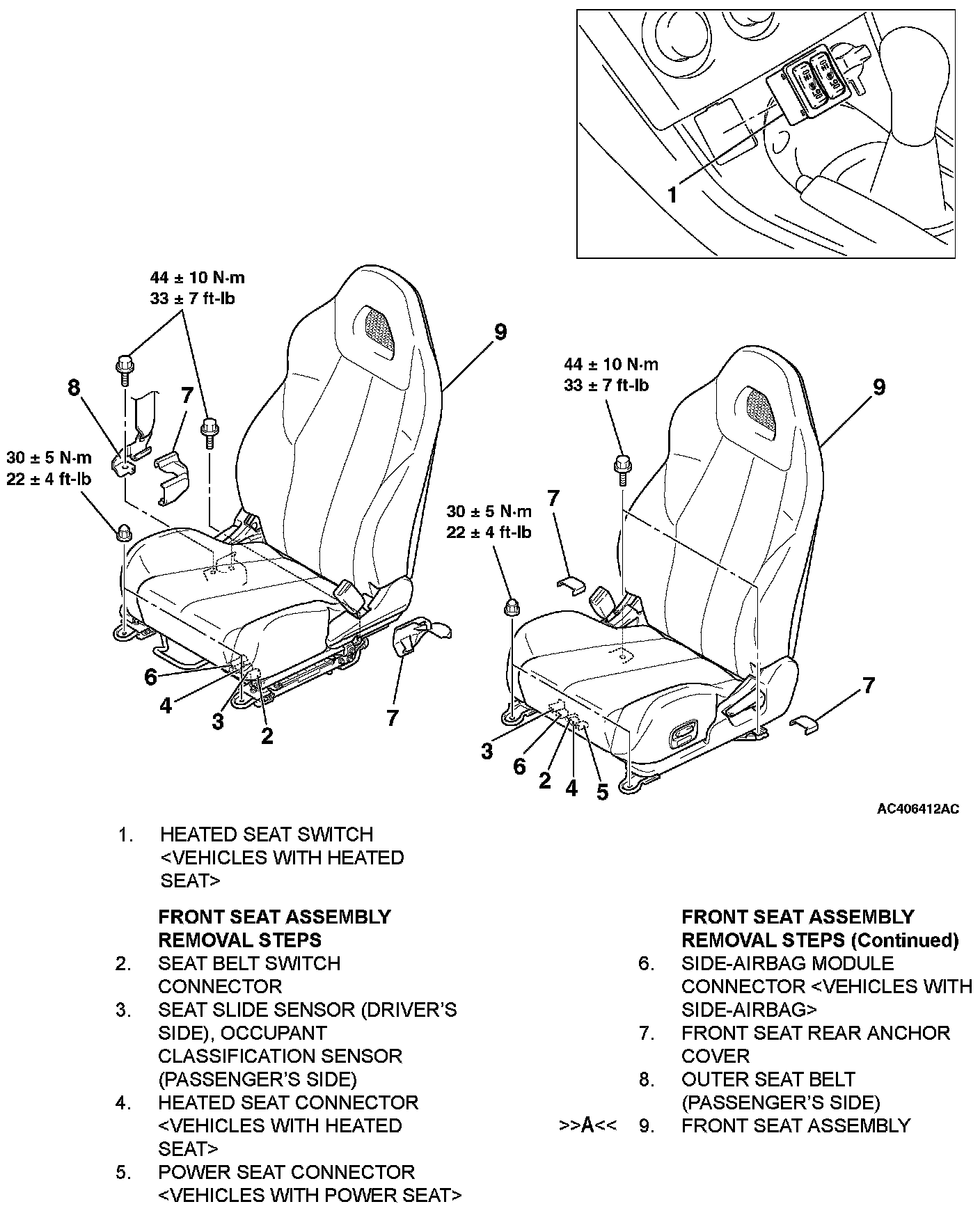

Removal Steps 1-9:

INSTALLATION SERVICE POINT

>>A<< FRONT SEAT ASSEMBLY INSTALLATION







CAUTION: Install the front passenger's seat assembly before installing the outer seat belt.

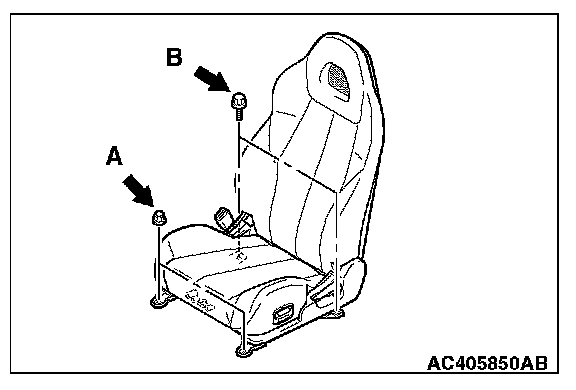

1. Temporarily tighten the nuts in mounting locations shown in the illustration with no weight on the front seat cushion and check the operation of the seat slide.
2. Temporarily tighten the bolts in mounting locations shown in the illustration with no weight on the front seat cushion.
3. Tighten the nuts and bolts in all mounting locations to the specified torque.

Tightening torque:
A: 30 ± 5 N.m (22 ± 4 ft-lb)
B: 44 ± 10 N.m (33 ± 7 ft-lb)
