Removal and Replacement

CONVERTIBLE TOP ASSEMBLY

REMOVAL AND INSTALLATION

Pre-removal And Post-installation Operation:

Removal Step 1:

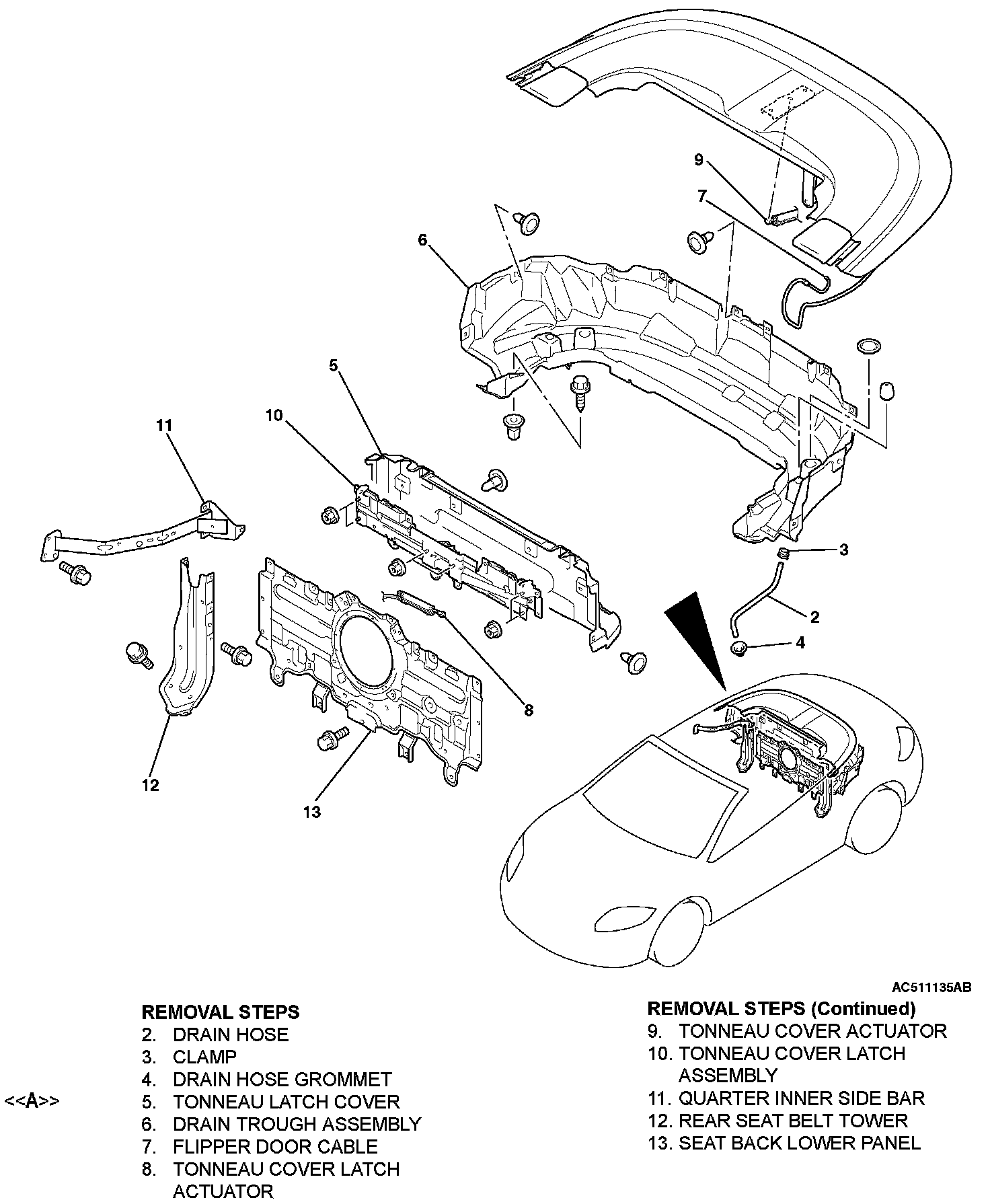

Removal Steps 2-13:

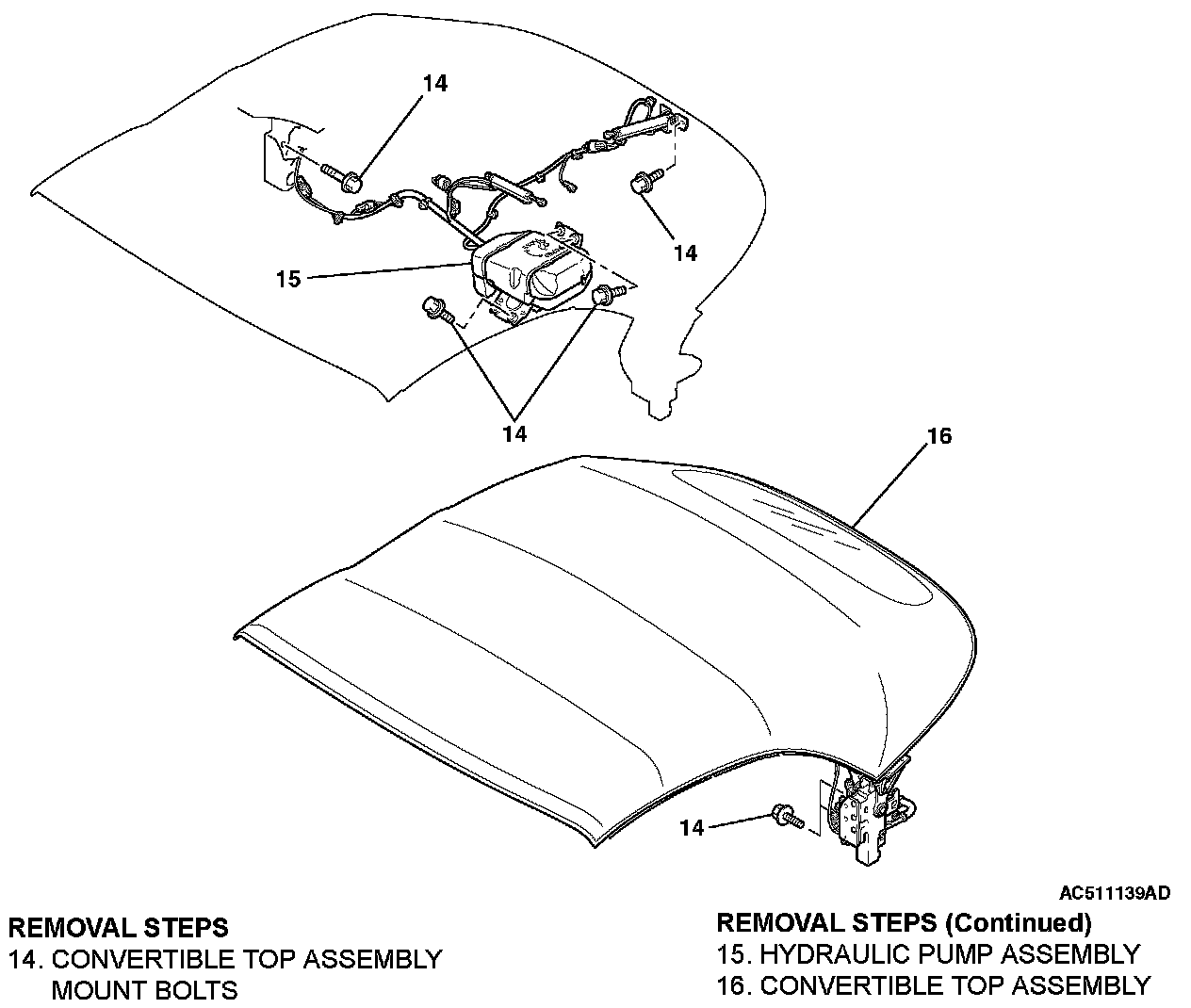

Removal Steps 14-16:

REMOVAL SERVICE POINT

[[A]] TONNEAU LATCH COVER REMOVAL

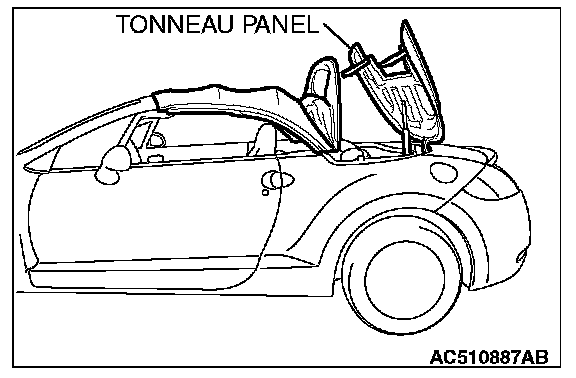

1. 5-bow and tonneau panel are opened.

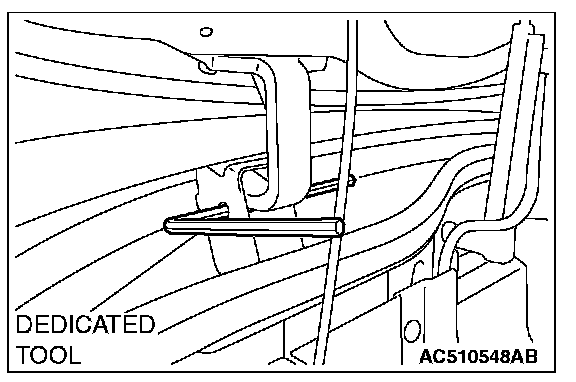

2. Raise the tonneau panel, and insert the dedicated tool into the hinge hole to hold the tonneau panel in place.
3. Remove the tonneau latch cover.
