Convertible Top Position Sensor / Switch: Testing and Inspection

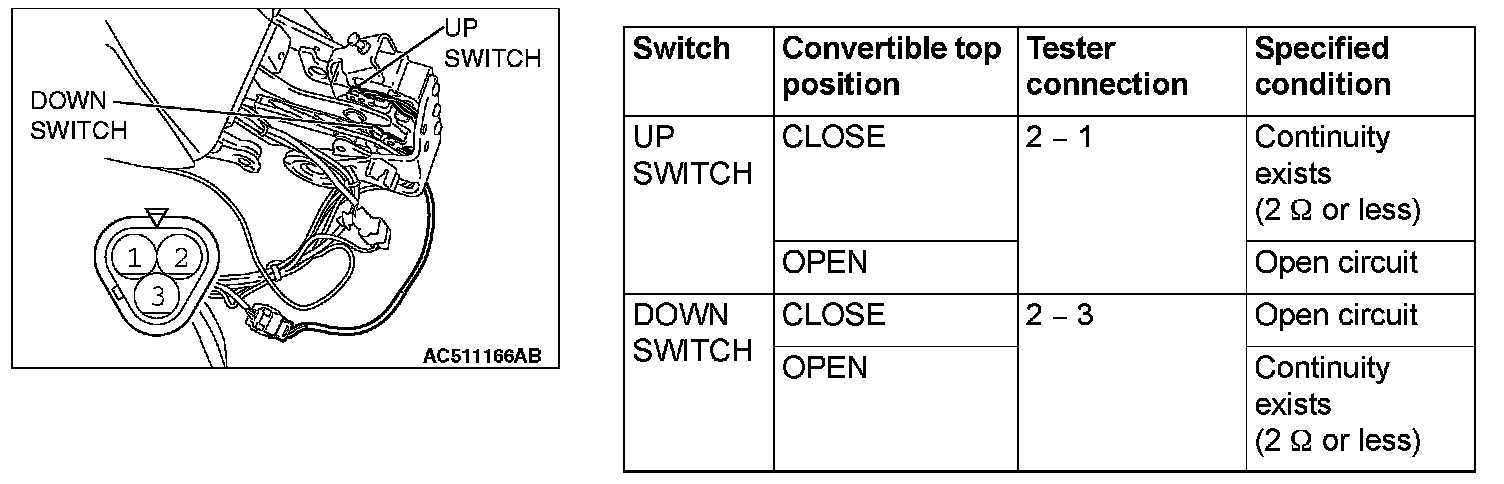

CONVERTIBLE TOP POSITION SWITCH CONTINUITY CHECK


Convertible Top Position Switch Continuity Check:
