Convertible Top Motor: Service and Repair

TOP STACK DRIVE MOTOR

REMOVAL AND INSTALLATION

Removal Steps 1-7:

REMOVAL SERVICE POINT

[[A]] TONNEAU LATCH COVER REMOVAL

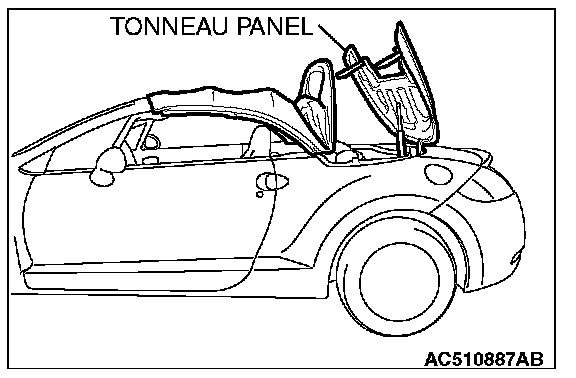

1. 5-bow and tonneau panel are opened.

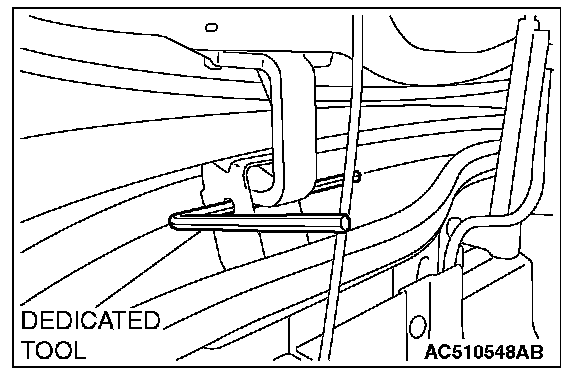

2. Raise the tonneau panel, and insert the dedicated tool into the hinge hole to hold the tonneau panel in place.
3. Remove the tonneau latch cover.
