Convertible Top Hydraulic Cylinder: Testing and Inspection

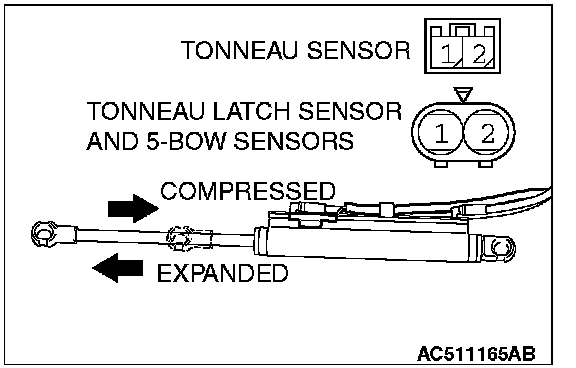

SENSOR (HALL IC) CHECK










Continuity between terminal 1 and terminal 2 when time when cylinder expanded and cylinder are compressed is checked.
