Topstack No.2 and No.3 Bows
Topstack No.2 and No.3 Bows

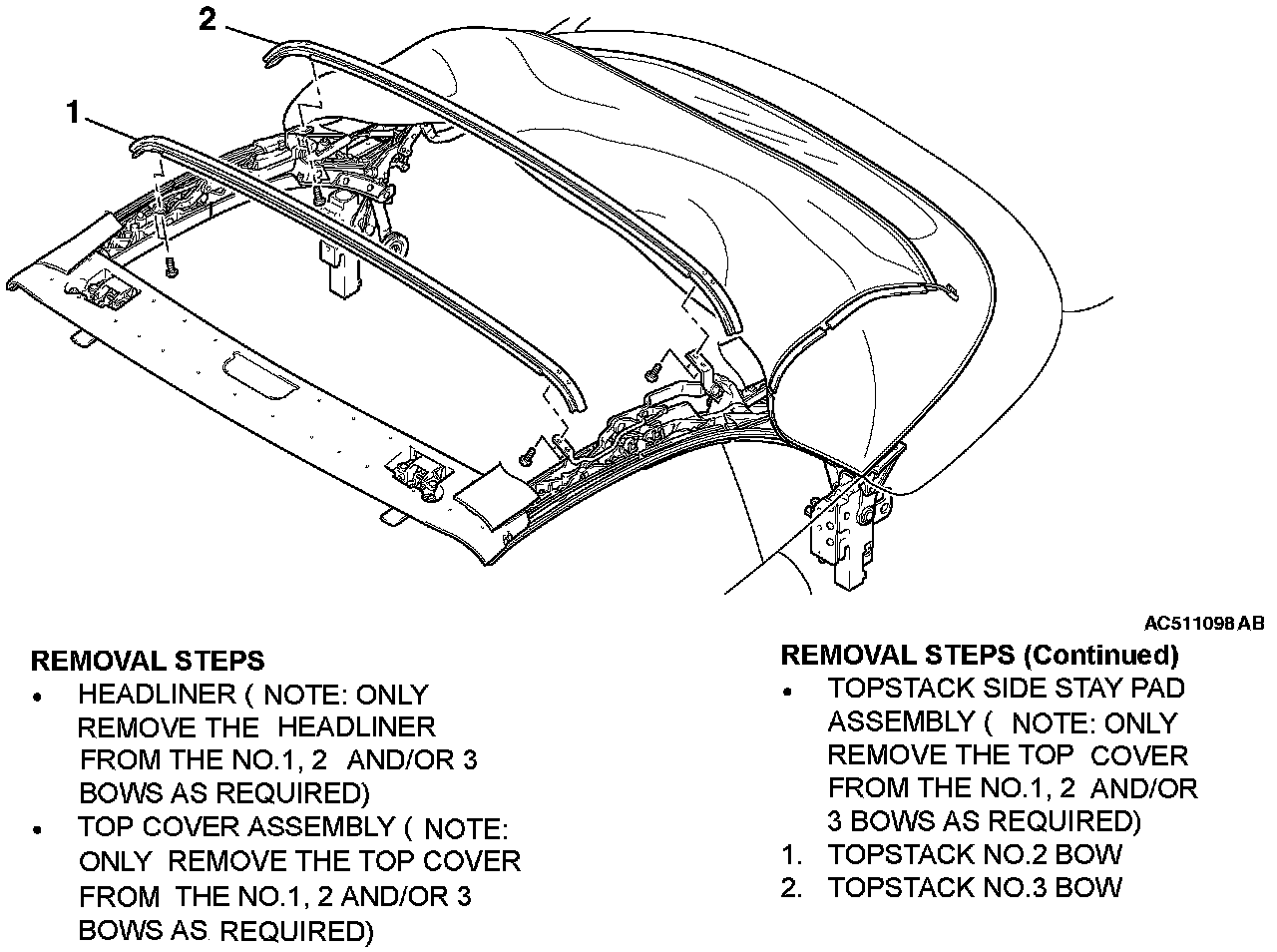

TOP STACK No.2 AND No.3 BOWS
REMOVAL AND INSTALLATION
Post-installation Operation:
Removal Steps 1-2:
