Side Rail

SIDE RAIL

REMOVAL AND INSTALLATION

Post-installation Operation:

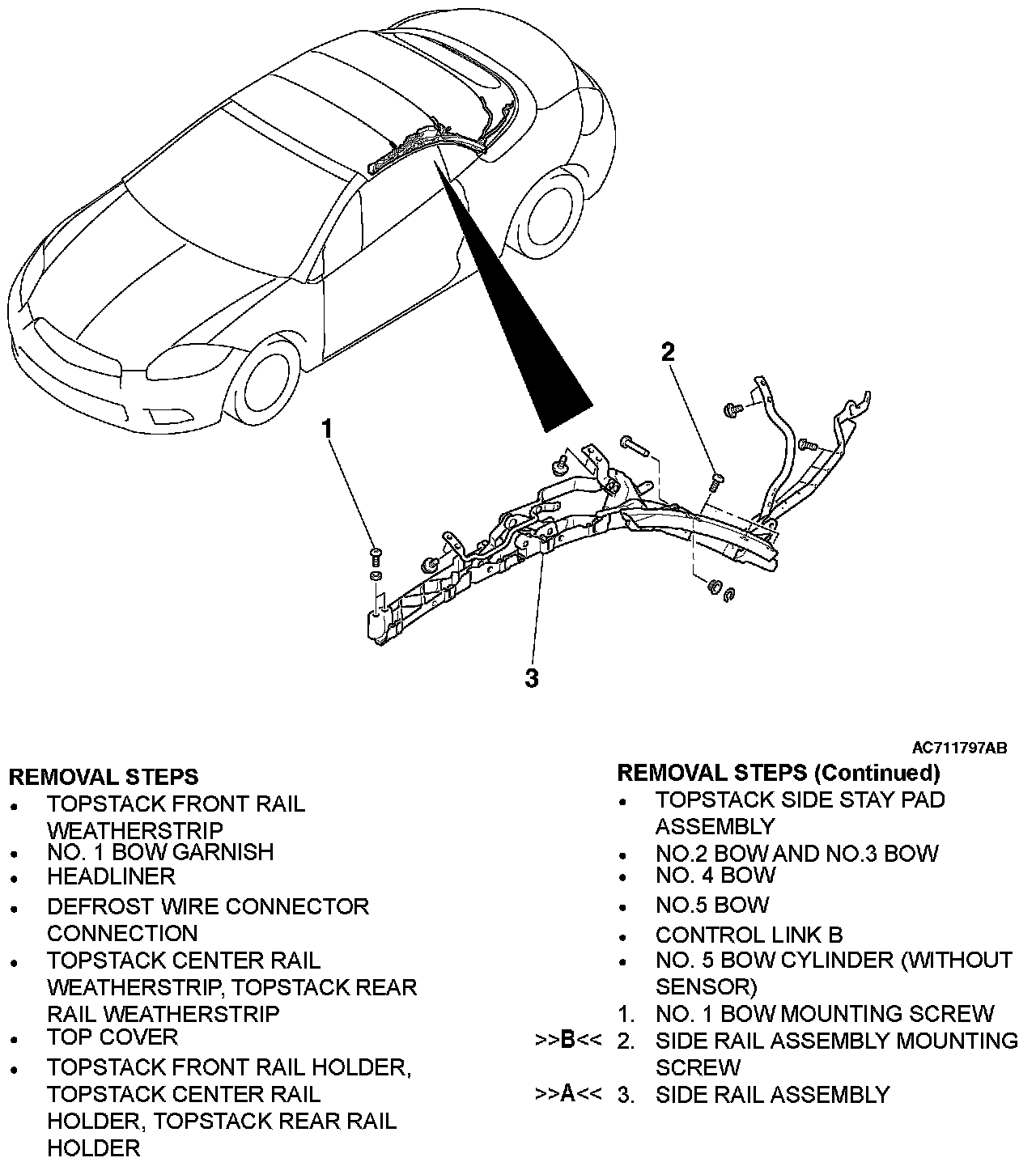

Removal Steps 1-3:

INSTALLATION SERVICE POINTS

]]A[[ SIDE RAIL ASSEMBLY INSTALLATION

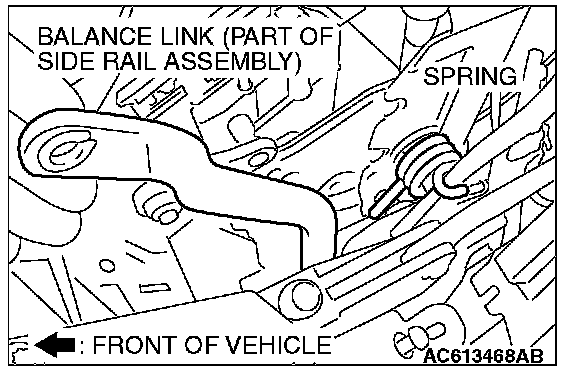

Install the side rail assembly so that the balance link is at the front of the spring.

]]B[[ SIDE RAIL ASSEMBLY MOUNTING

SCREW INSTALLATION

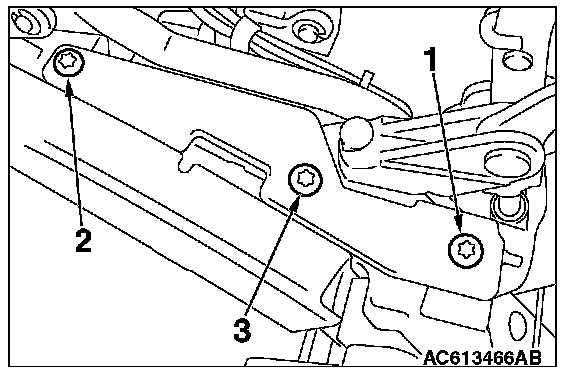

Tighten the side rail assembly mounting screws in the order shown.
