Remote Controlled Mirror Operation Check

REMOTE CONTROLLED MIRROR OPERATION CHECK

Remote Controlled Mirror Operation Check:

Check that the mirror moves as described in the table when each terminal is connected to the battery.

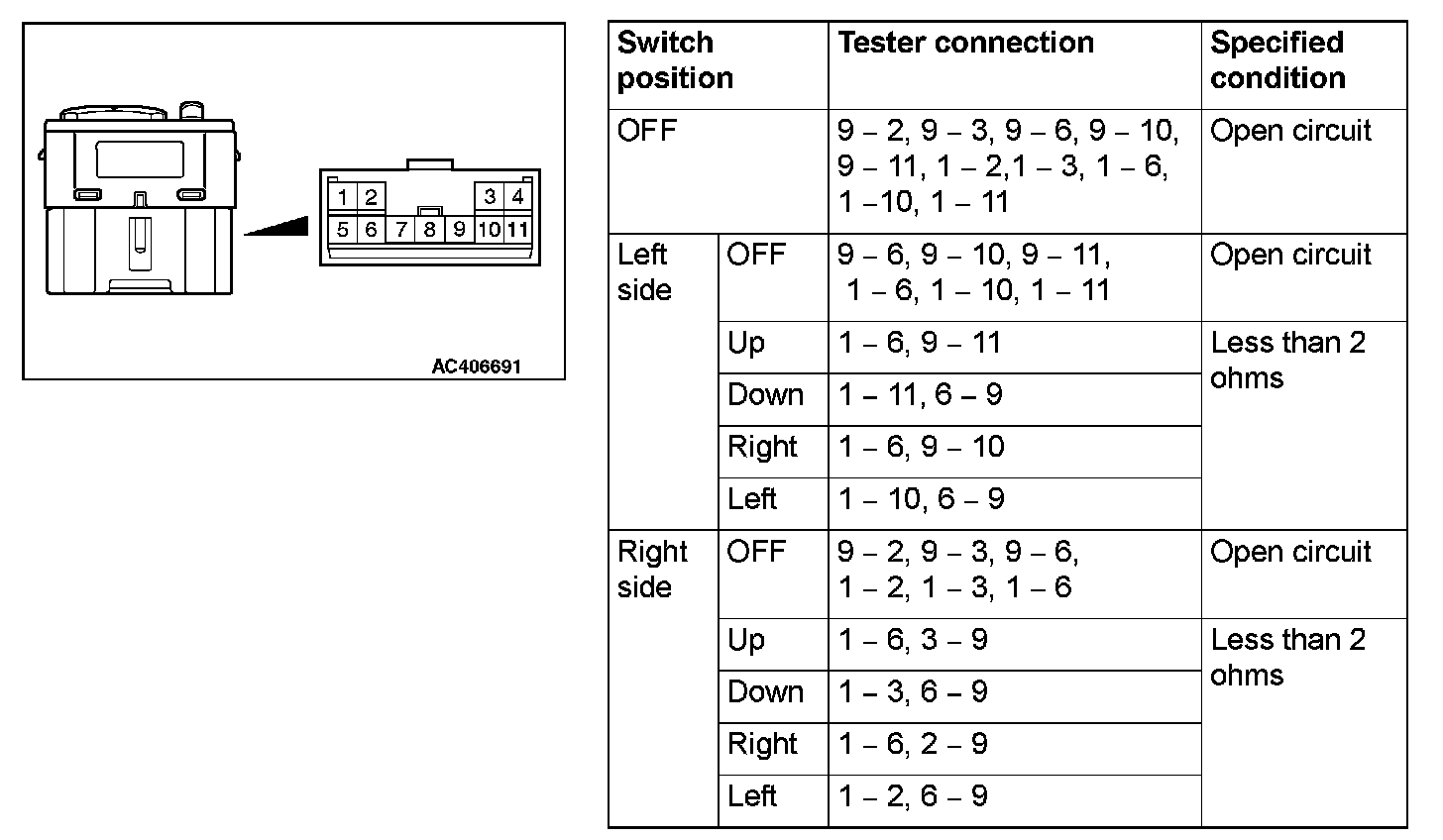

DOOR MIRROR CONTROL SWITCH CONTINUITY CHECK

Door Mirror Control Switch Continuity Check:

HEATED DOOR MIRROR CHECK







CAUTION: When relocating the car between locations with extremely different temperatures (warm and cold), leave the car in the location for a while to adapt to the temperature prior to checking it.

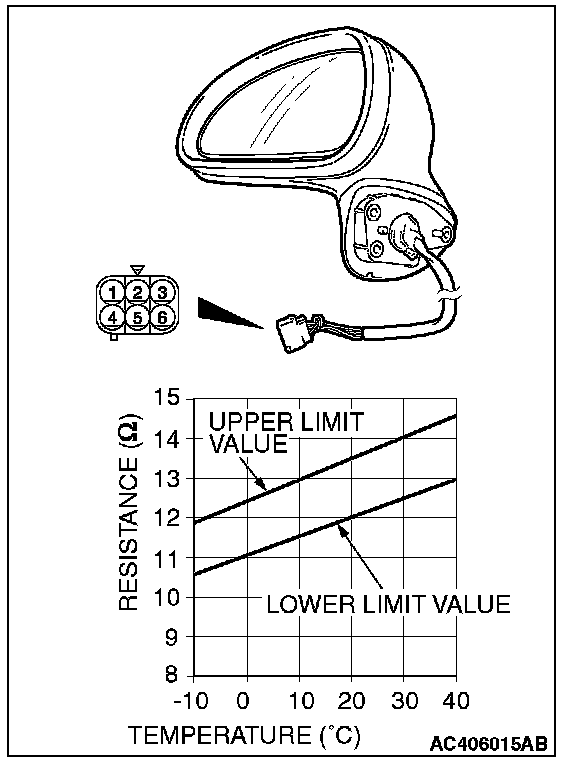

Check to see that the resistance shown in the graph is almost satisfied when measuring the resistance of terminal 1 and 3 of the door mirror connectors. If the resistance is not within the specified range, replace the door mirror.
