Interior Moulding / Trim: Service and Repair

TRIMS

REMOVAL AND INSTALLATION

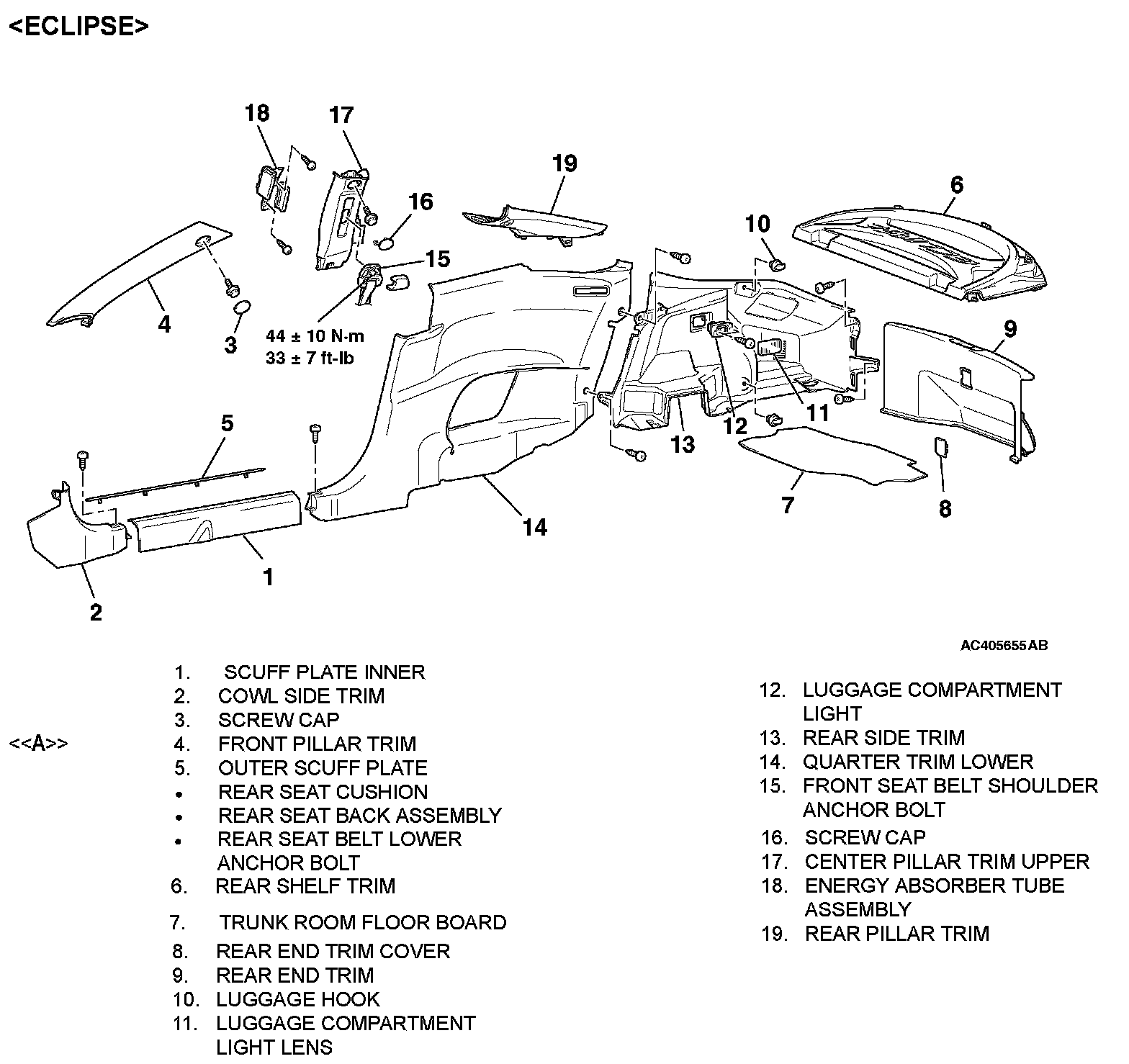

Removal Steps 1-19:

Removal Steps 1-23:

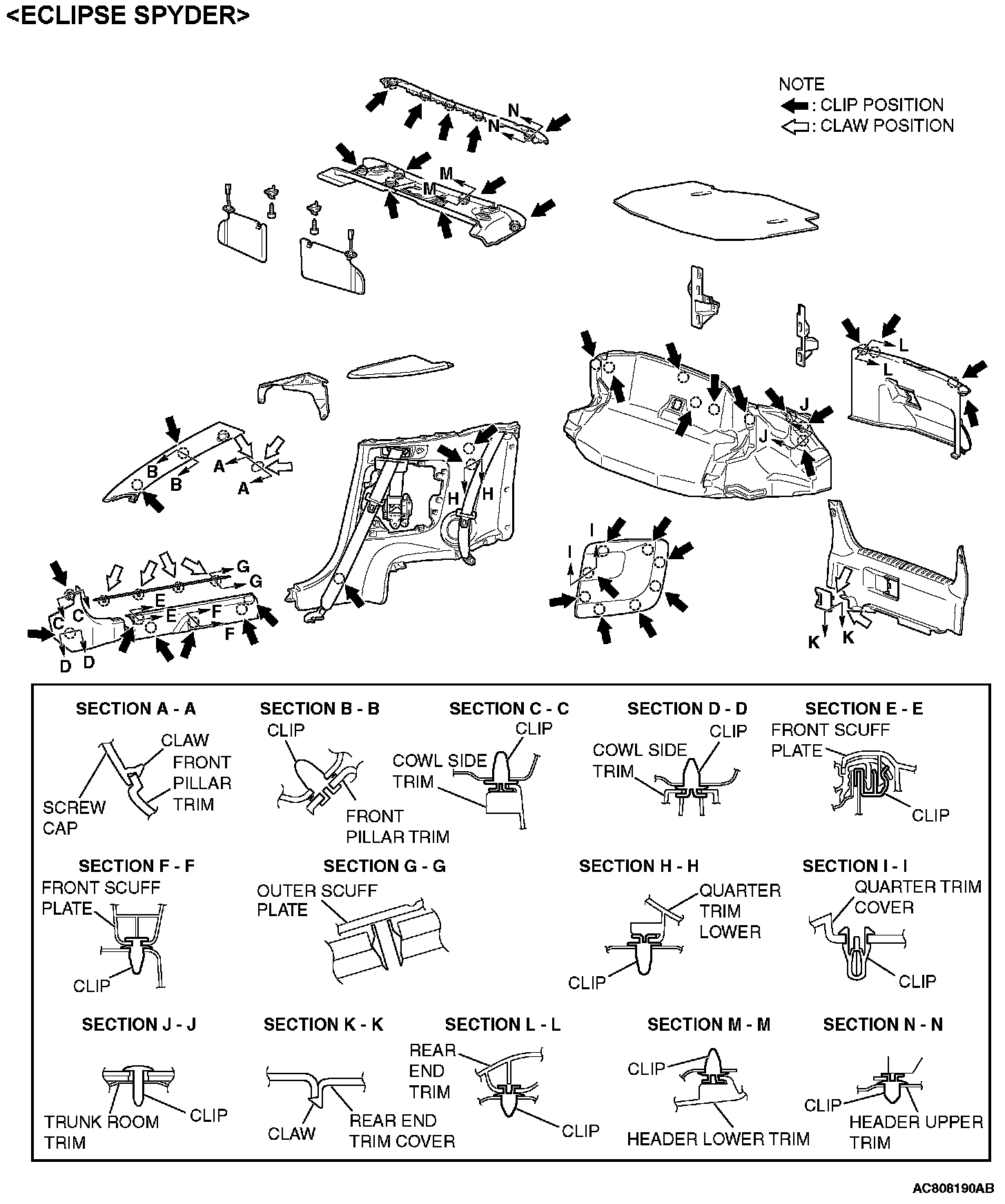

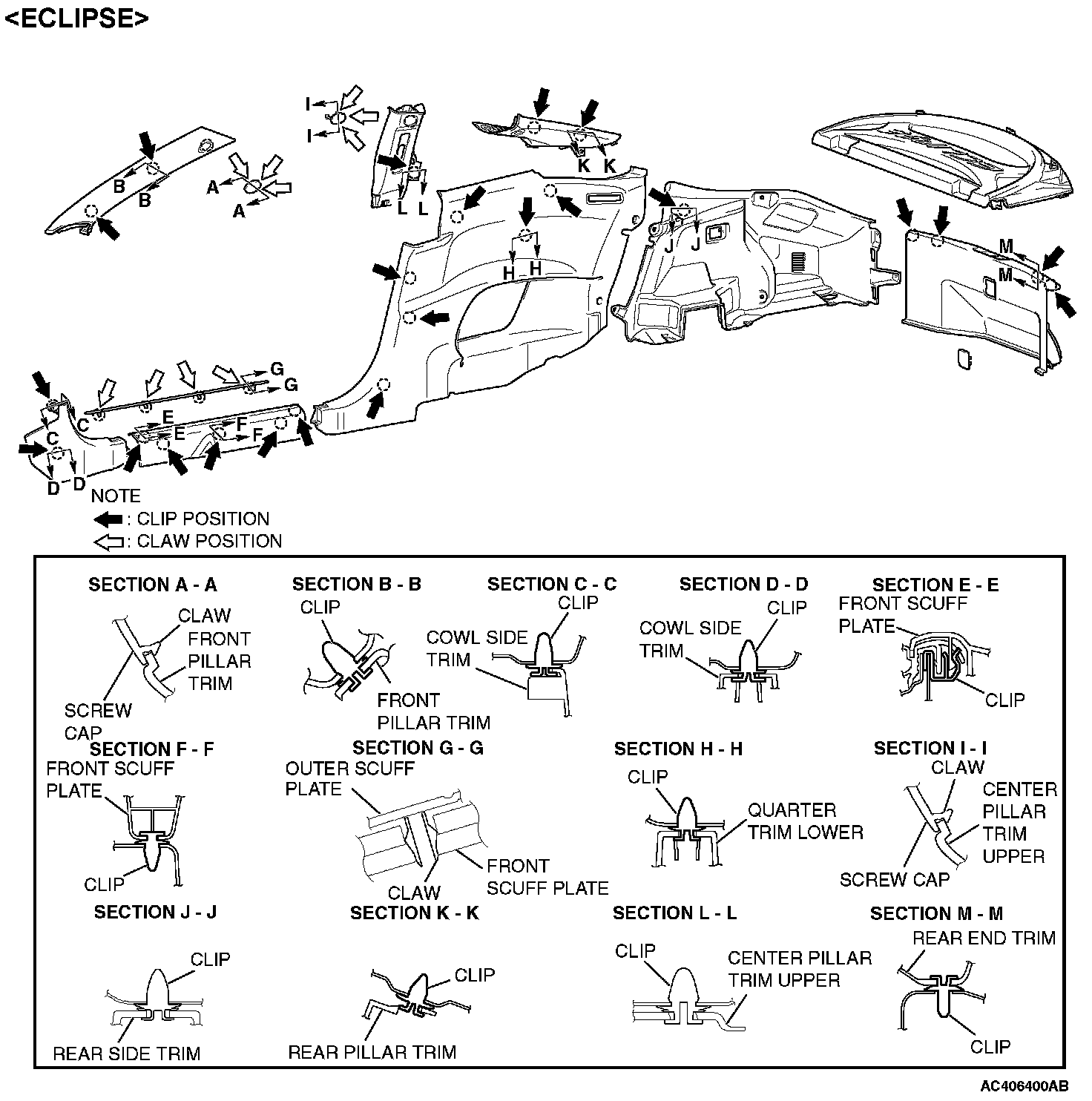

CLIP AND CLAW POSITION [ECLIPSE]

Clip And Claw Position:

REMOVAL SERVICE POINT

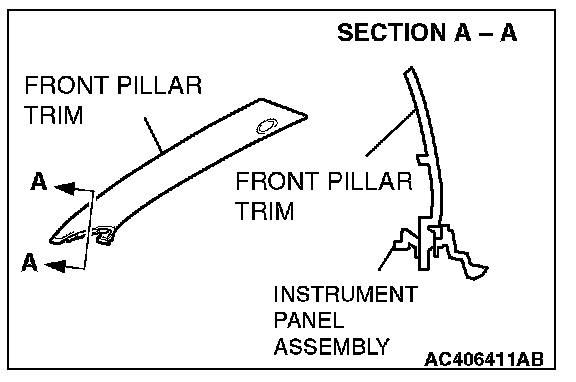

[[A]] FRONT PILLAR TRIM REMOVAL

Release the clip and remove the interphone microphone (Refer to chassis electrical, Hands-free cellular phone system.) at the left side (vehicles with hands-free cellular phone system) and the front pillar trim by pulling it to the direction shown.
