Eclipse

HEADLINING

REMOVAL AND INSTALLATION

WARNING: When removing and installing the front passenger seat, be sure to carry out accuracy check of occupant classification sensor after the seat has been installed in the vehicle. (Refer to SRS, On-vehicle Service.)

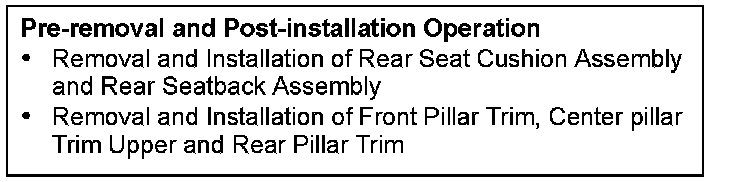

Pre-removal And Post-installation Operation:

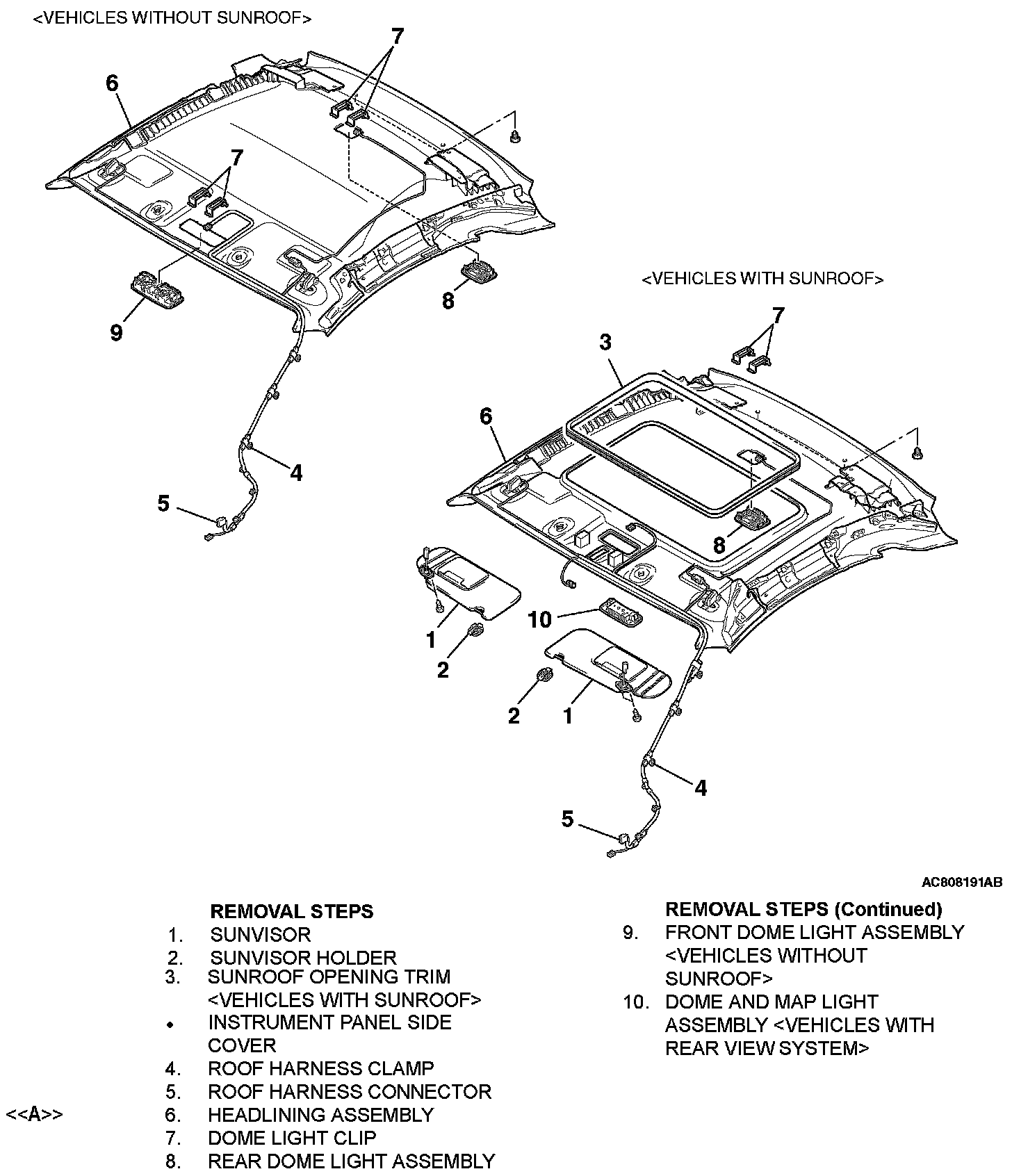

Removal Steps 1-10:

REMOVAL SERVICE POINT

[[A]] HEADLINING ASSEMBLY REMOVAL

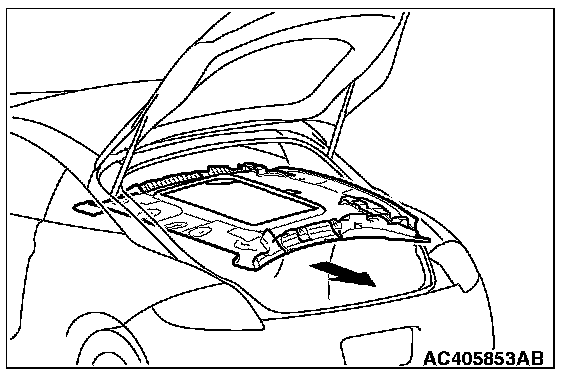

Turn the headlining assembly 90 ° as shown and remove it from the liftgate side.
