Home >> Mitsubishi >> 2010 >> Eclipse L4-2.4L (4G69) >> Repair and Diagnosis >> Body and Frame >> Exterior Moulding / Trim >> Service and Repair

Exterior Moulding / Trim: Service and Repair



INSTALLATION AND REMOVAL OF ADHESIVE COMPONENTS

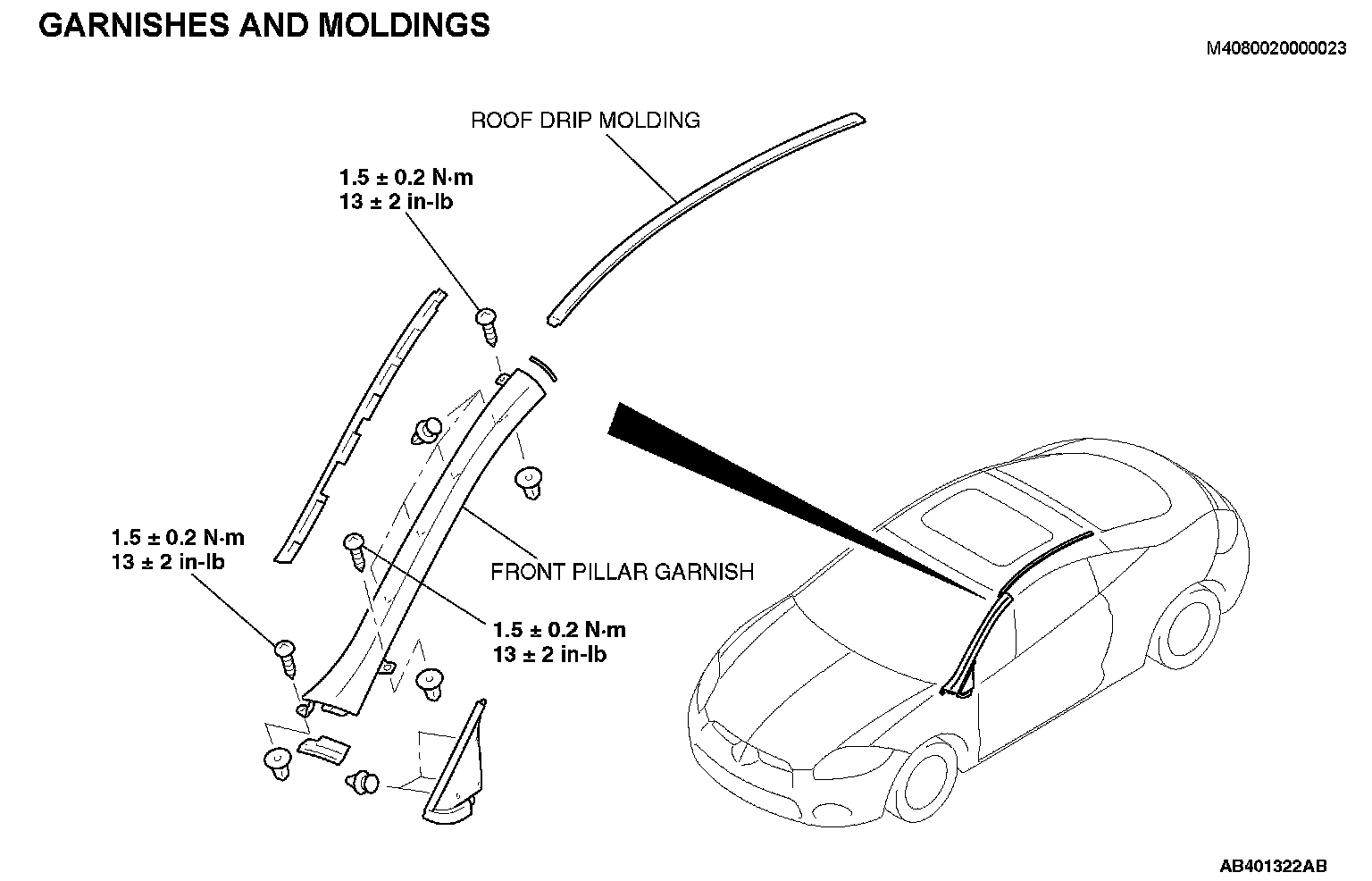

GARNISHES AND MOLDINGS

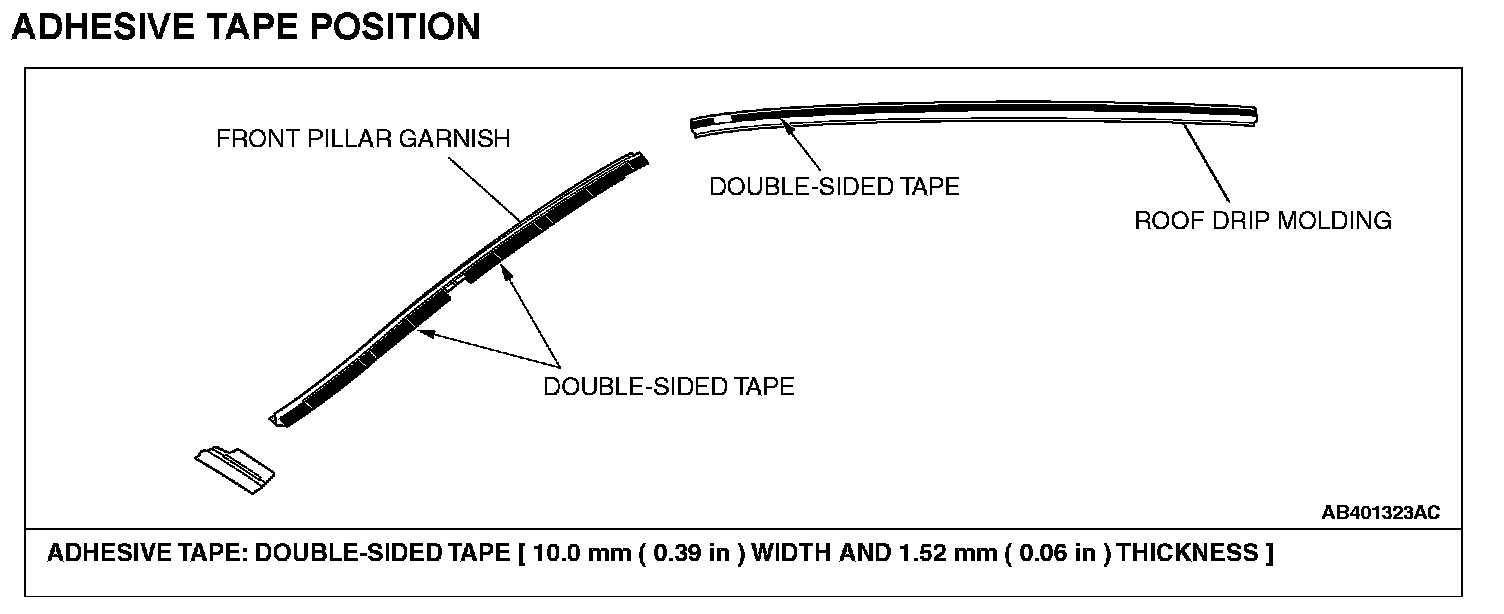

ADHESIVE TAPE POSITION

Required Special Tool:
- MB990784: Ornament Remover
