Testing and Inspection
>>
Liftgate Latch Switch [Eclipse]
Liftgate Latch Switch [Eclipse]

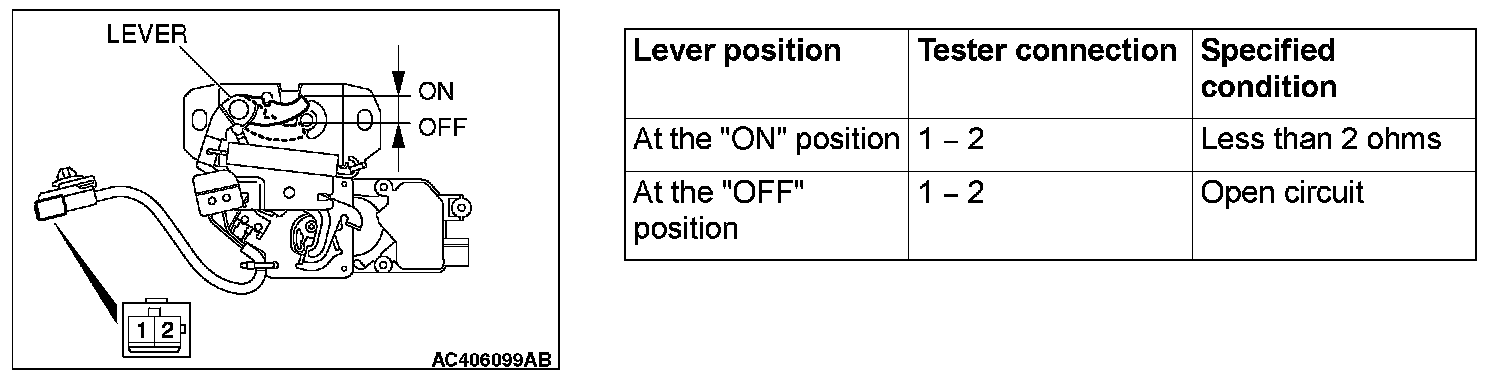

LIFTGATE LATCH SWITCH
Liftgate Latch Switch:
