Maintenance, Serviceability (Eclipse)

MAINTENANCE, SERVICEABILITY

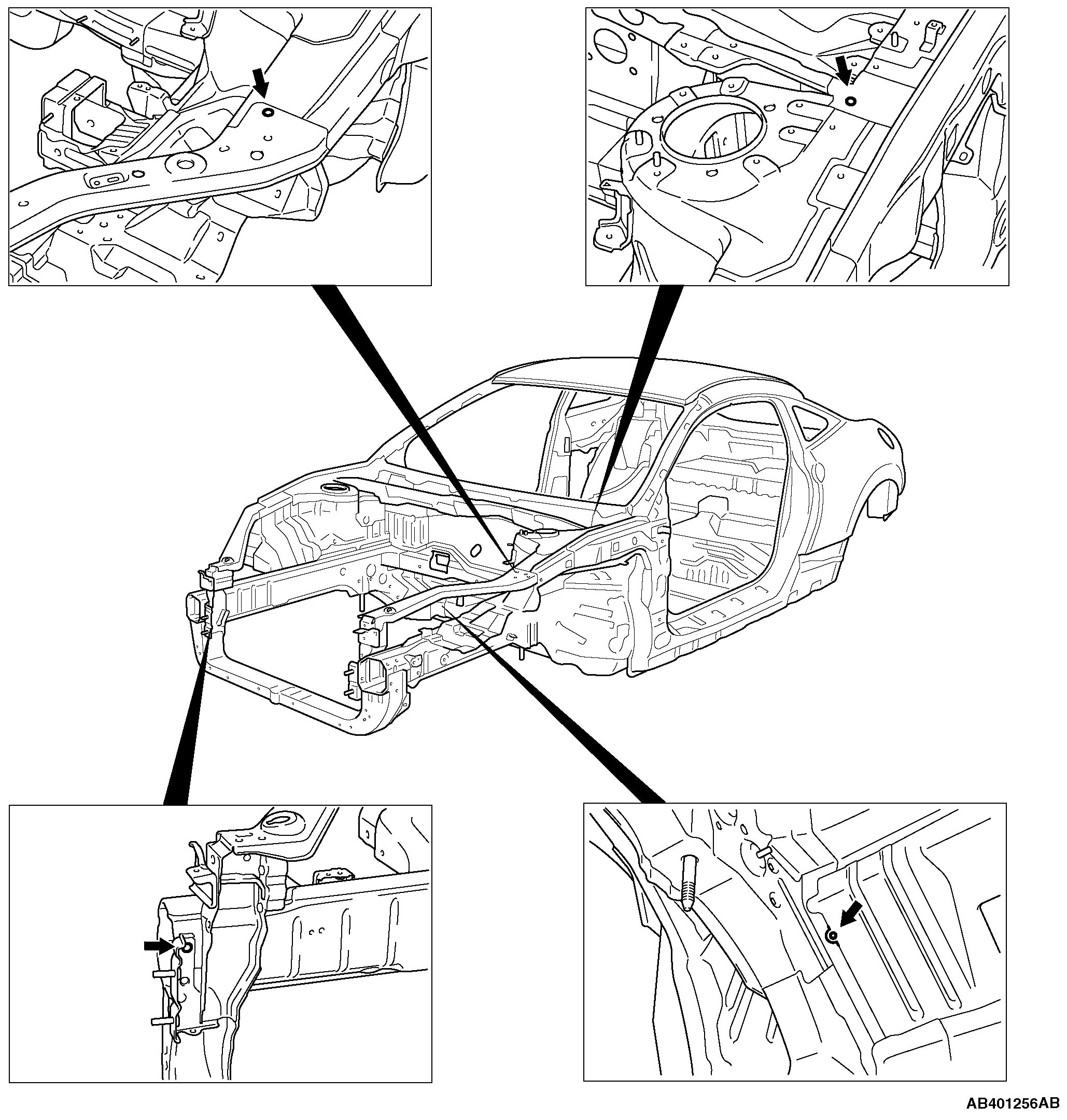

FENDER SHIELD




Positioning holes and notches have been provided at the overlapped areas to improve operation performance when replacing panels.

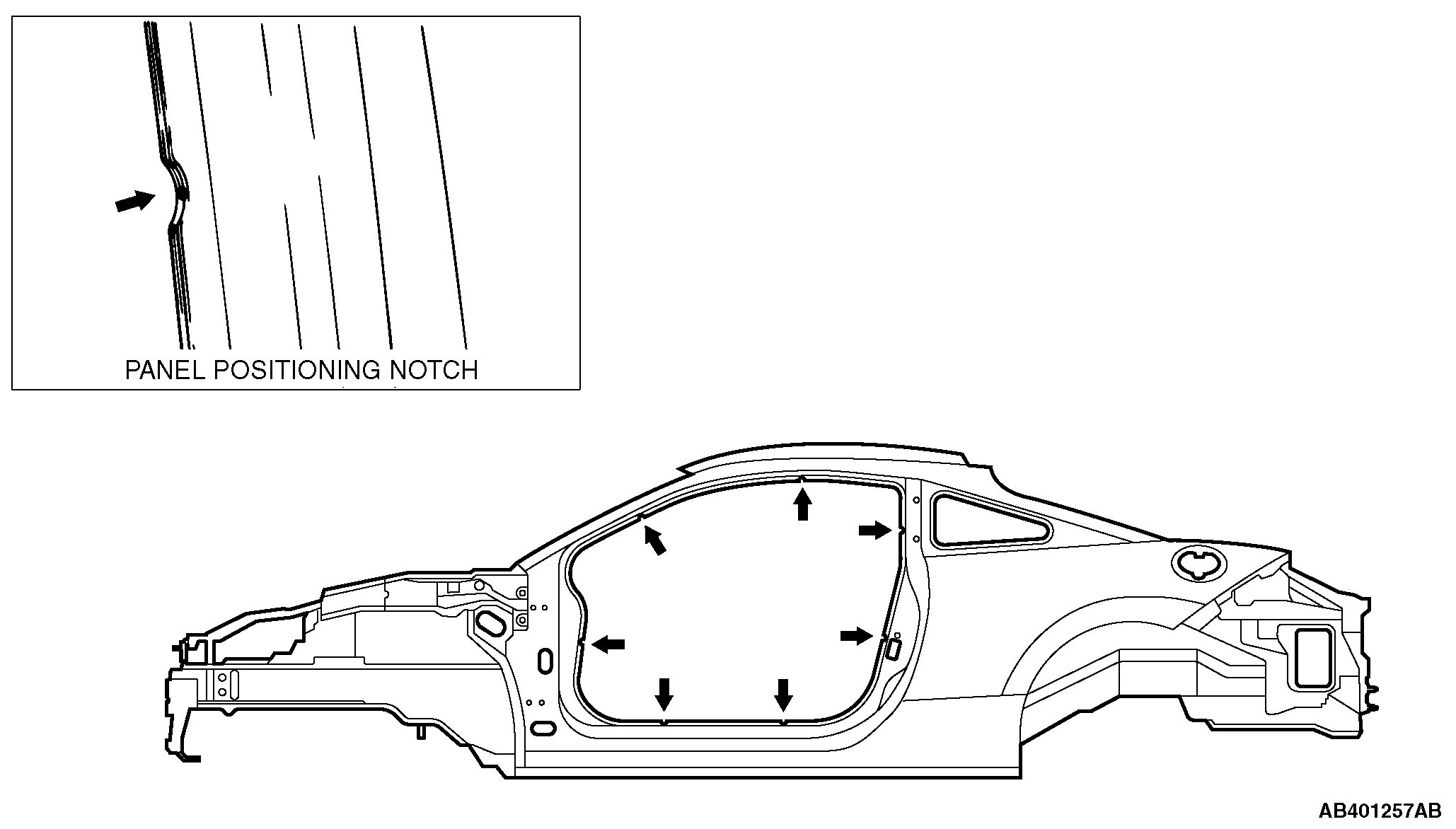

SIDE STRUCTURE




Panel positioning notches have been provided at the door opening section to improve operation performance when replacing panels.

SIDE OUTER PANEL




Spare parts are provided in the cut form with the adoption of the pillar integral type side outer panel.
