Speaker: Service and Repair
SPEAKER
REMOVAL AND INSTALLATION

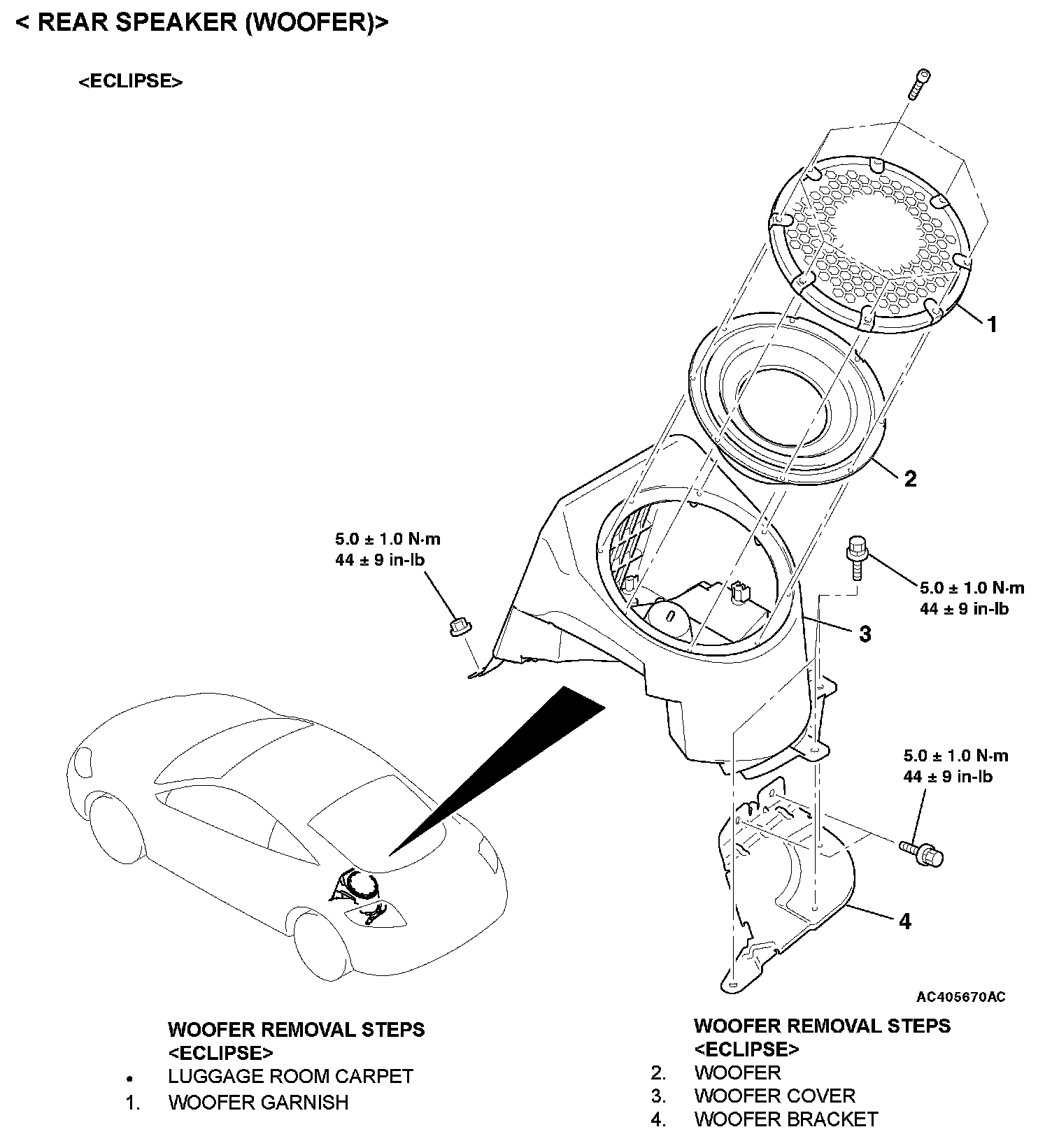

Removal Steps 1-6 (Part 1):
Removal Steps 1-6 (Part 2):

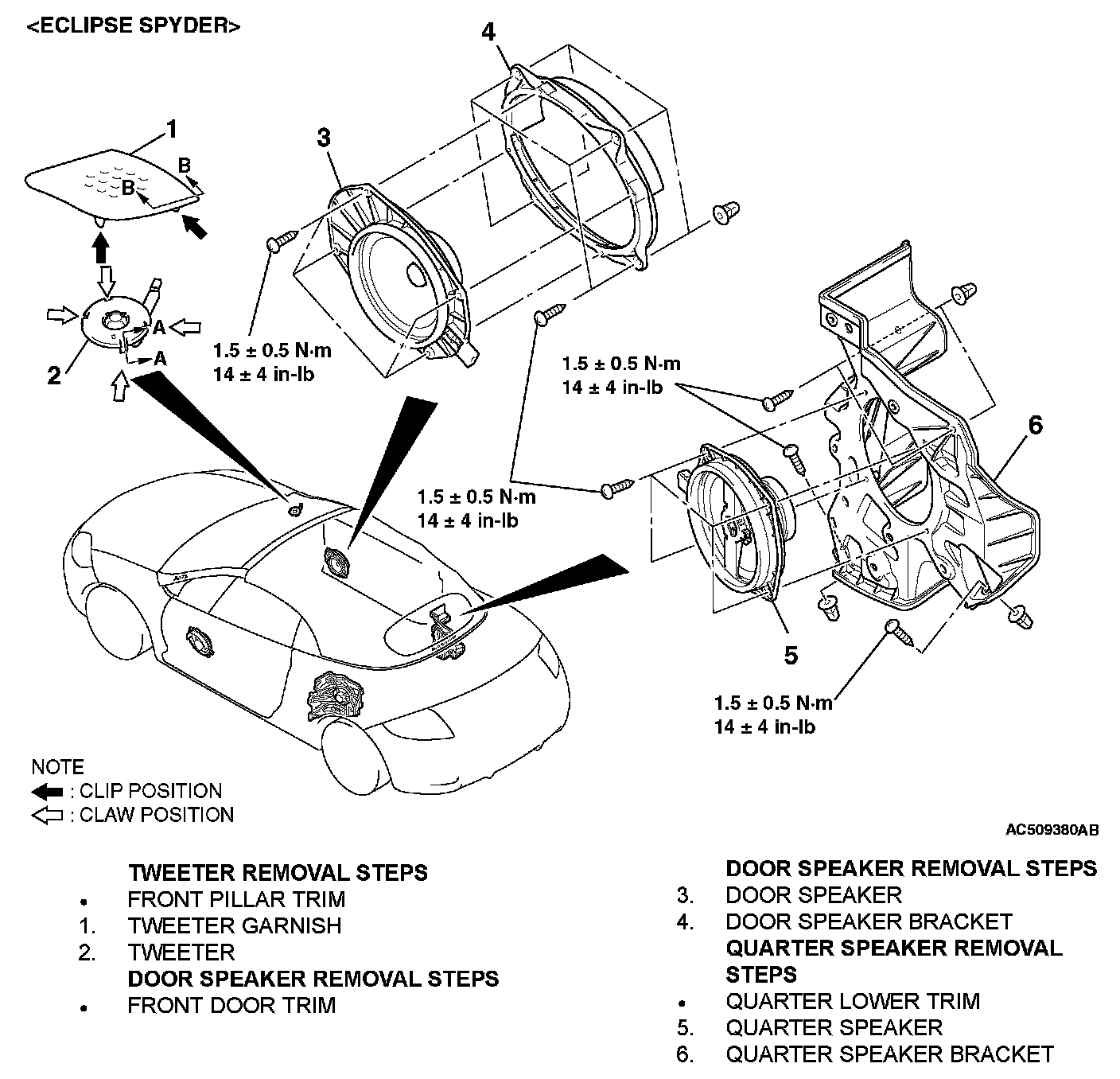

Removal Steps 1-4:

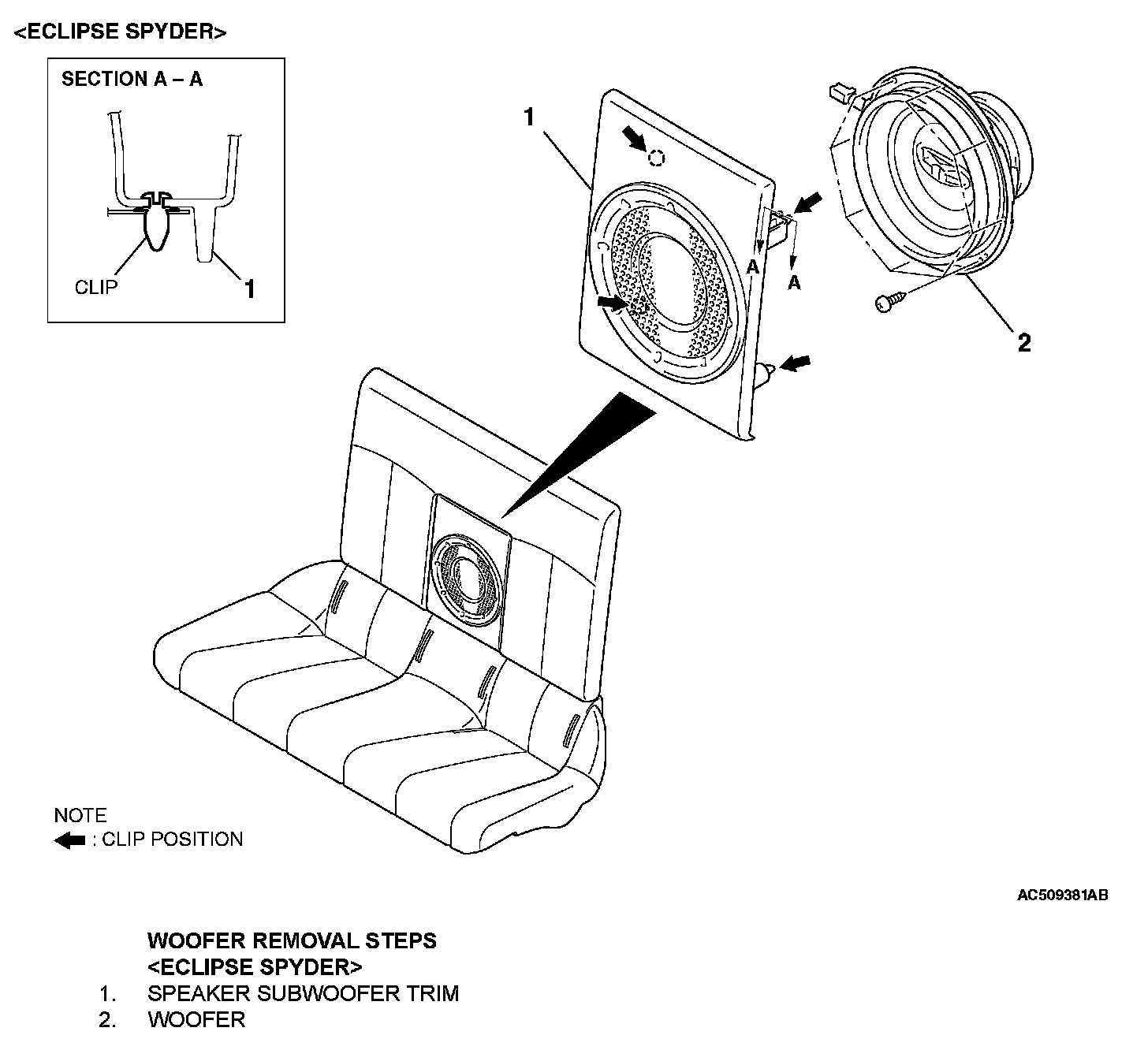

Removal Steps 1-2:
