Introduction to Satellite Radio Diagnosis

DIAGNOSIS

INTRODUCTION TO SATELLITE RADIO DIAGNOSIS

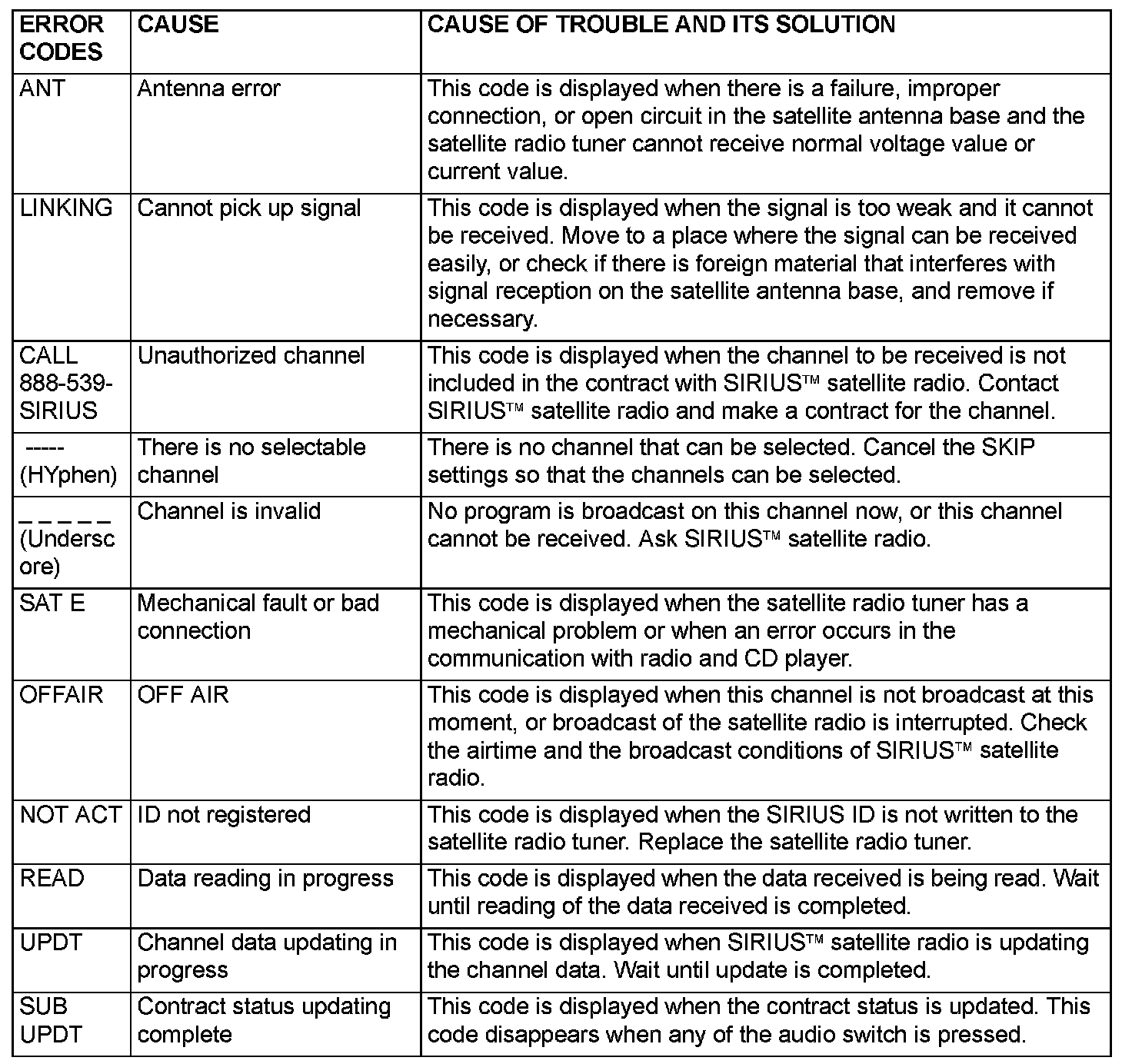

ERROR CODE (SIRIUS satellite radio)
The multi-center display displays the error codes below if an abnormality related to the satellite radio is detected.
