Radio Tuner: Service and Repair

REMOVAL AND INSTALLATION

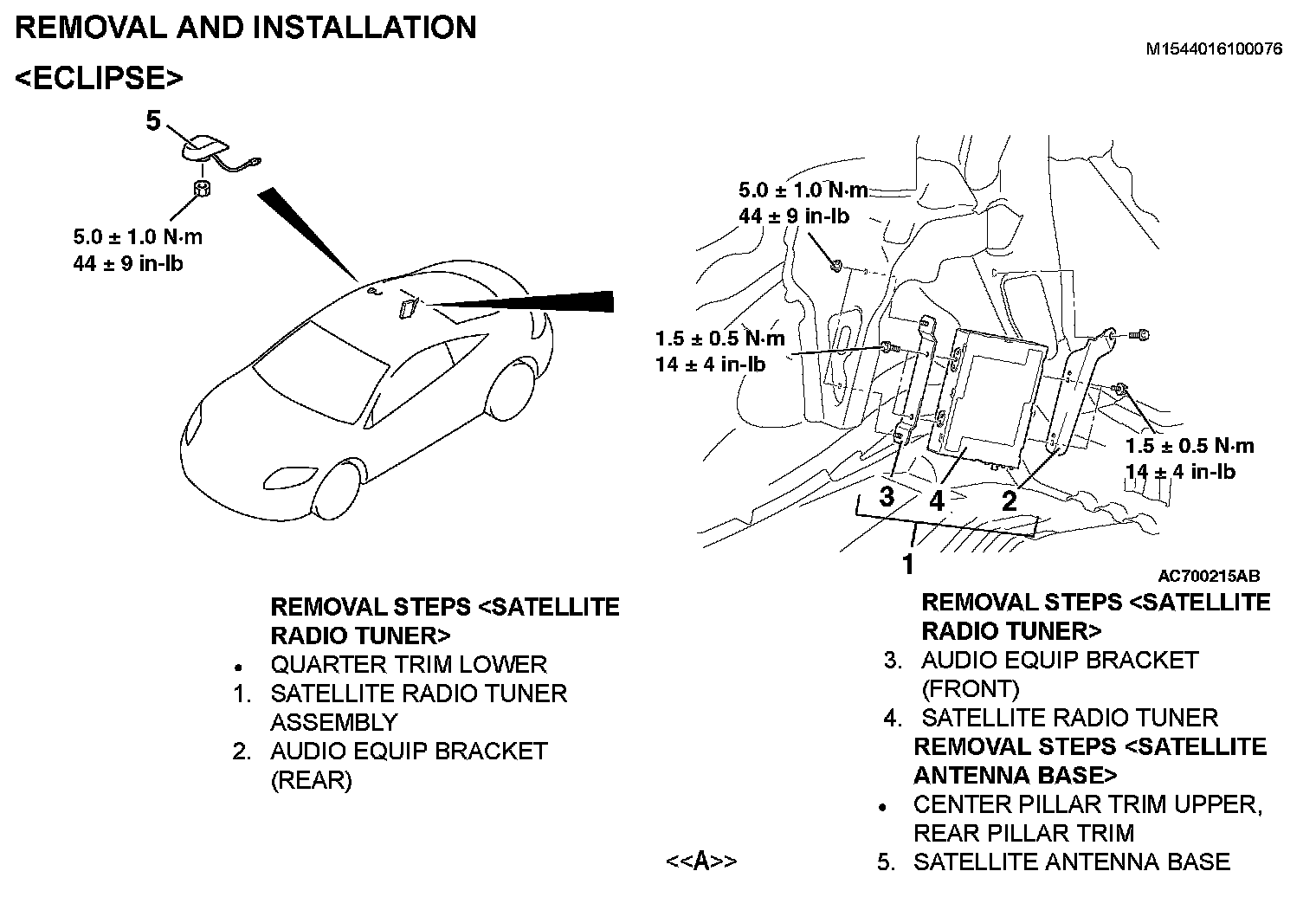

Removal Steps 1-5:

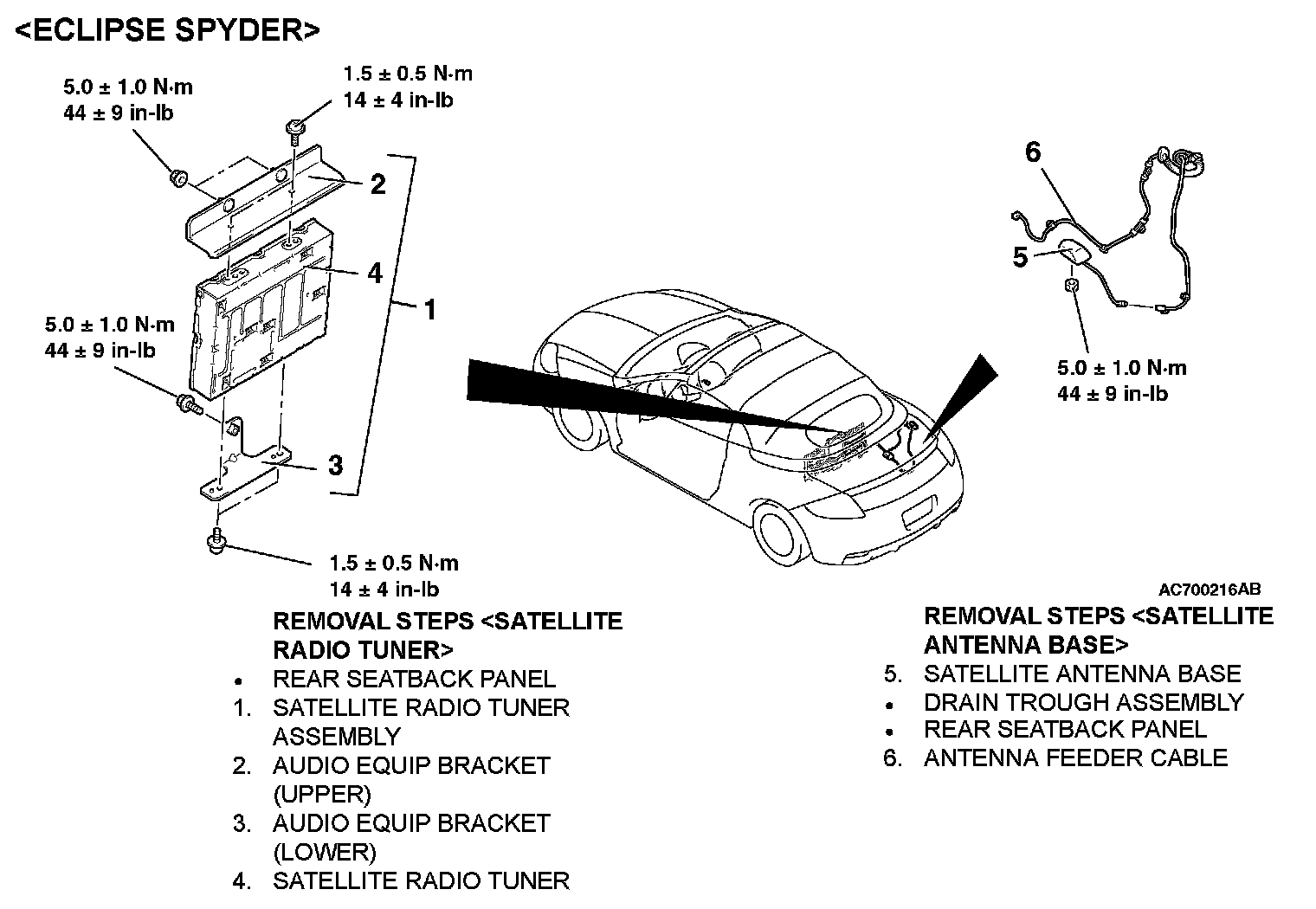

Removal Steps 1-6:






REMOVAL SERVICE POINT

[[A]] REMOVAL OF SATELLITE ANTENNA BASE

Lower the headlining assembly and remove it.
