Pinout Values and Diagnostic Parameters

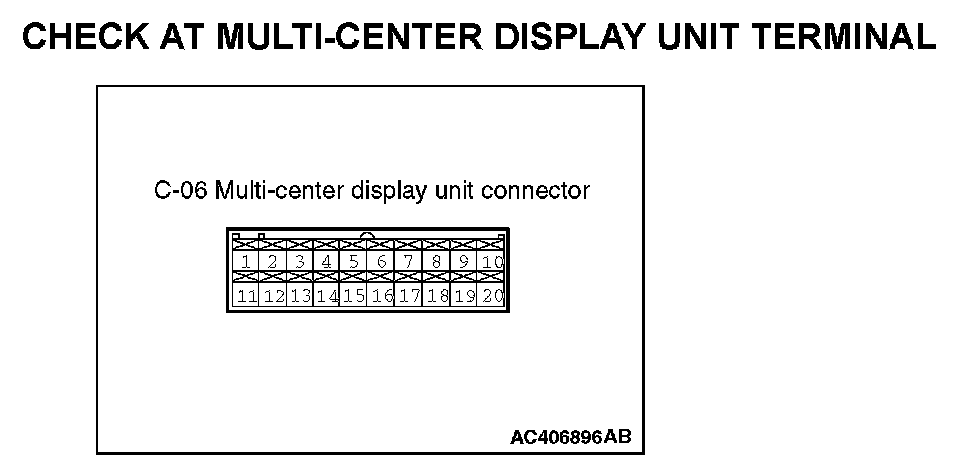

CHECK AT MULTI-CENTER DISPLAY UNIT TERMINAL

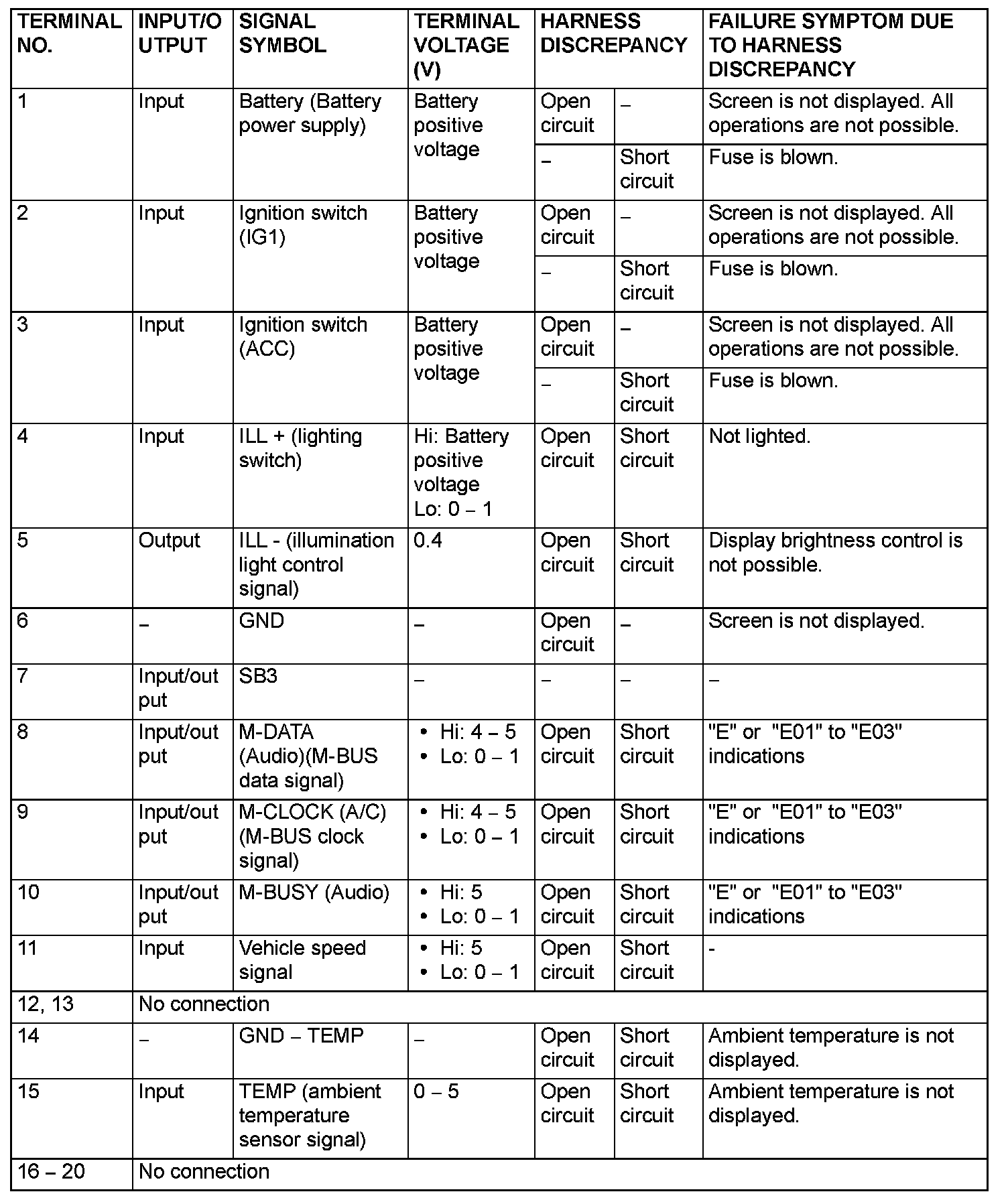

Check At Multi-Center Display Unit Terminal (Part 1):
Check At Multi-Center Display Unit Terminal (Part 2):
