Adjust For Compass Variance
ADJUST FOR COMPASS VARIANCE1. Turn the ignition switch to "ON" position.

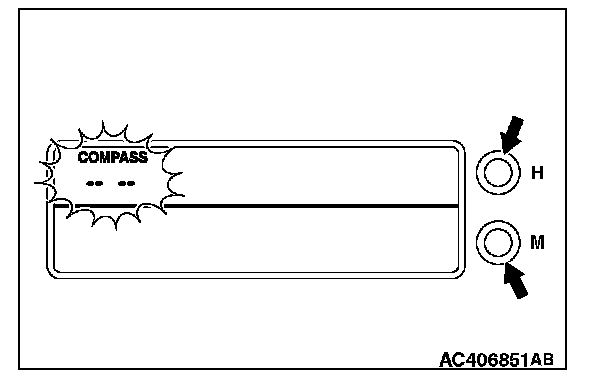

2. Press the "H" switch and the "M" switch simultaneously
3. Release the "H" switch and the "M" switch simultaneously within 10 seconds. This will switch the multi-center display to the compass setting mode, and "COMPASS" and "-- --" will flash.
NOTE: When any of the following conditions is met during the compass setting mode, the multi-center display cancels the compass setting mode and returns to the normal display.
- The switch is not operated for 10 seconds or more.
- The vehicle speed is 3 mph (5 km/h) or more.
- The ignition switch is turned to the "OFF" position.

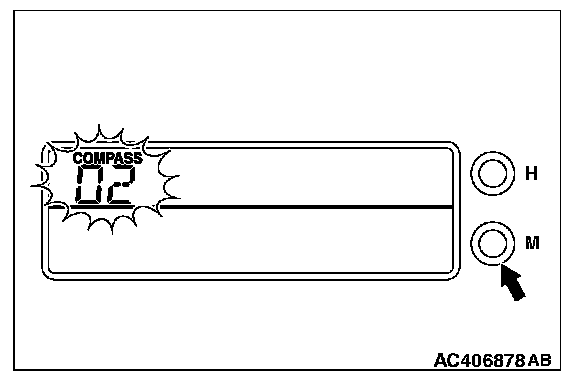

4. Press the "M" switch. This will switch the multi-center display to the zone setting mode, and the display shows "COMPASS" and "02 (when the previous zone number is 02)".
NOTE: When the ignition switch is turned to the "OFF" position or the vehicle speed is 3 mph (5 km/h) or more during the zone setting mode, the multi-center display cancels the zone setting mode and returns to the normal display.

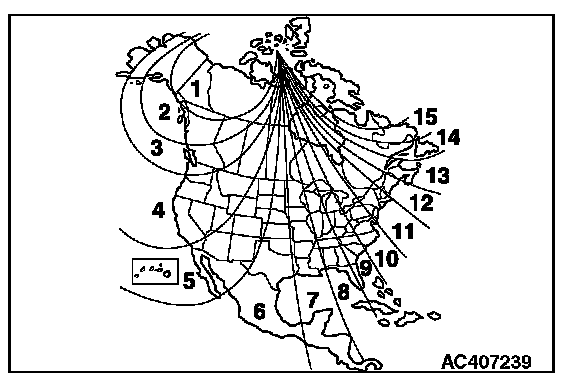

5. Find current location and variance zone number on the zone map.

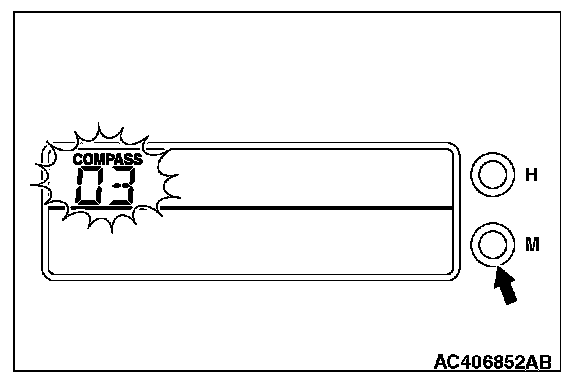

6. Press the "M" switch repeatedly until the correct zone number is displayed.

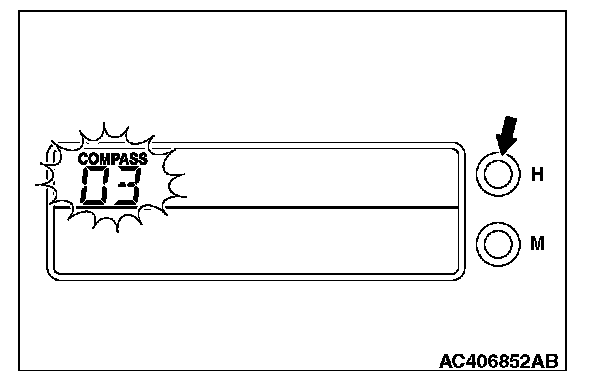

7. After selecting the correct zone number, press the "H" switch to set the zone number. This will complete the deflection angle compensation, and the multi-center display returns to the normal display. If the compass deviates from the correct indication soon after repeated adjustment, have the compass checked.
NOTE:
- Do not install a ski rack, antenna, etc., which are attached to the vehicle by means of a magnet. They affect the operation of the compass.
- The compass may not indicate the correct compass direction when in the places shown below:
- Tunnels
- Railroads
- Underpass/Overpass
- Transforming station
- Large metal structures
- Area over the subway
- The compass returns to the correct compass direction vehicle moves to an area where the geomagnetism is stabilized.
