Introduction to Hands Free Cellular Phone Diagnosis

DIAGNOSIS

INTRODUCTION TO HANDS FREE CELLULAR PHONE DIAGNOSIS

Prior to the troubleshooting, check if the causes below can be the case. If any, take actions according to the solution method.

Pairing of the cellular phone and hands-free module cannot be made.

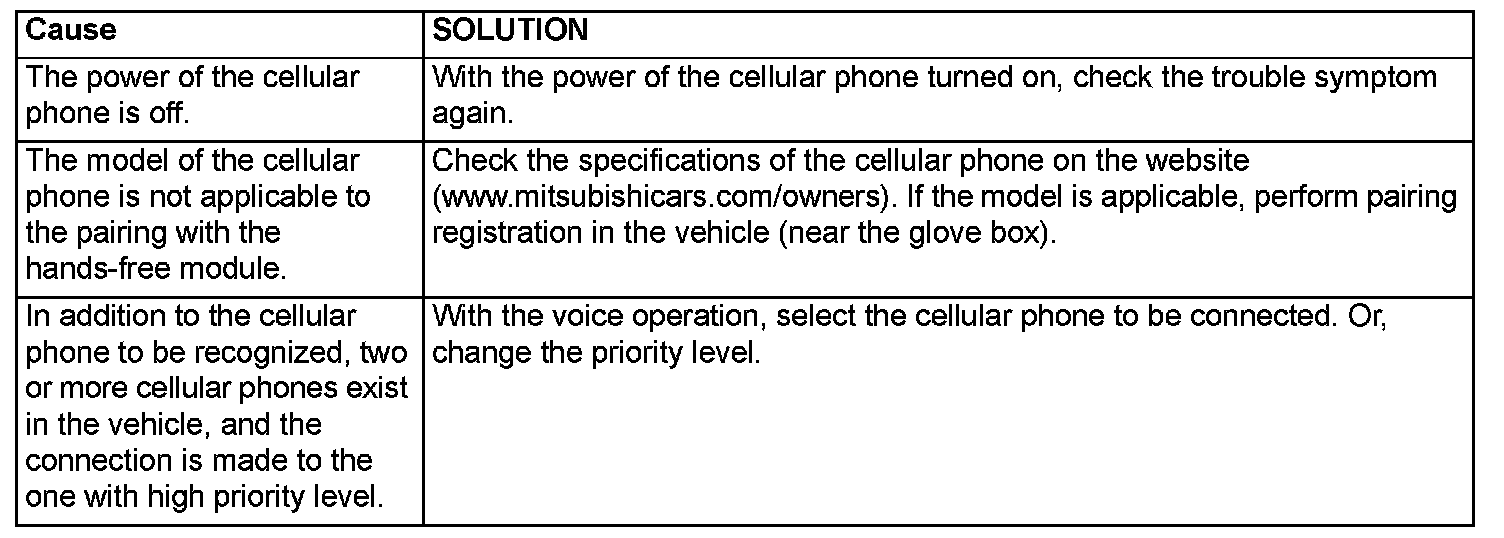

The hands-free module does not recognize the cellular phone.
The Bluetooth(R) connection between the cellular phone and hands-free module cannot be made.

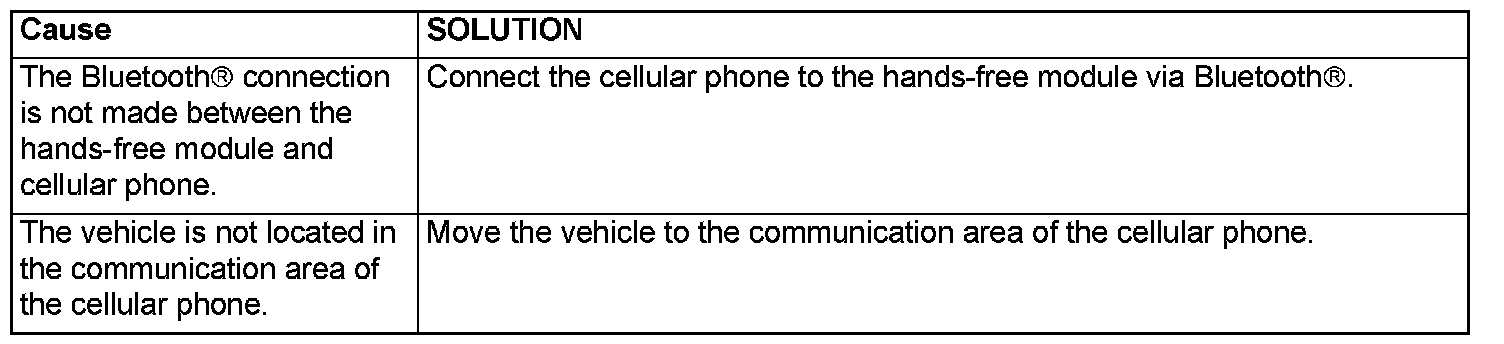

Calling cannot be made using the hands-free cellular phone system.

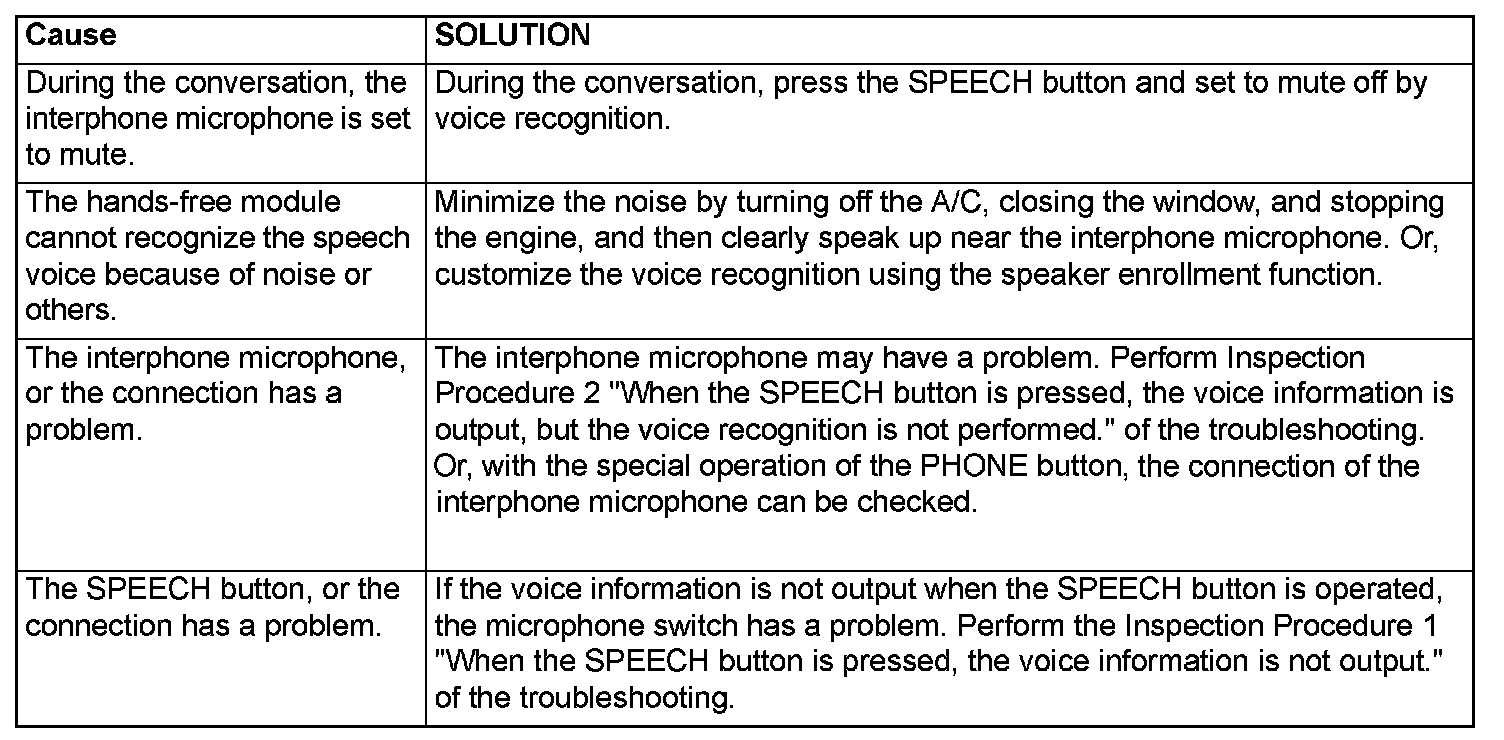

The voice recognition operation cannot be performed.
The communication voice cannot be heard by the other party.

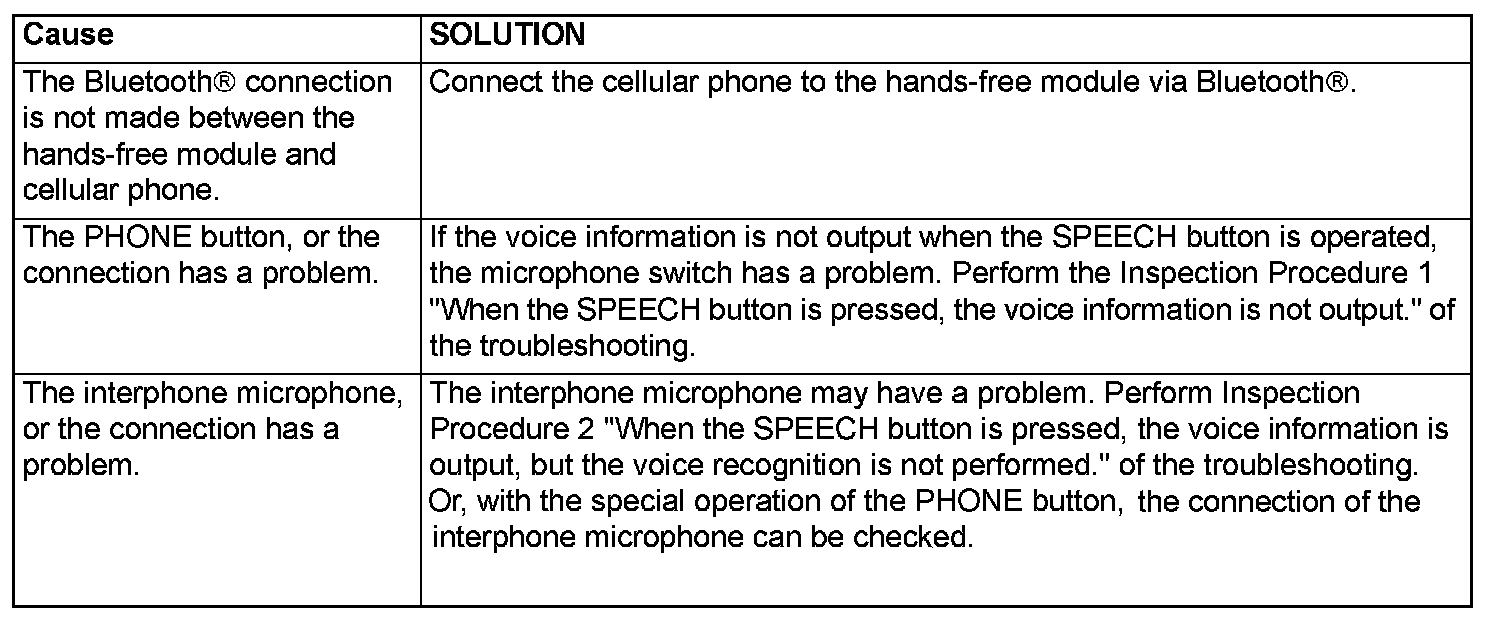

A call cannot be received when the PHONE button is pressed.
The voice information and communication voice cannot be output from the speaker.







The sound of other party cannot be heard from the speaker in the vehicle although the sound at the vehicle side can be heard by the other party.
