Cellular Phone Microphone: Service and Repair

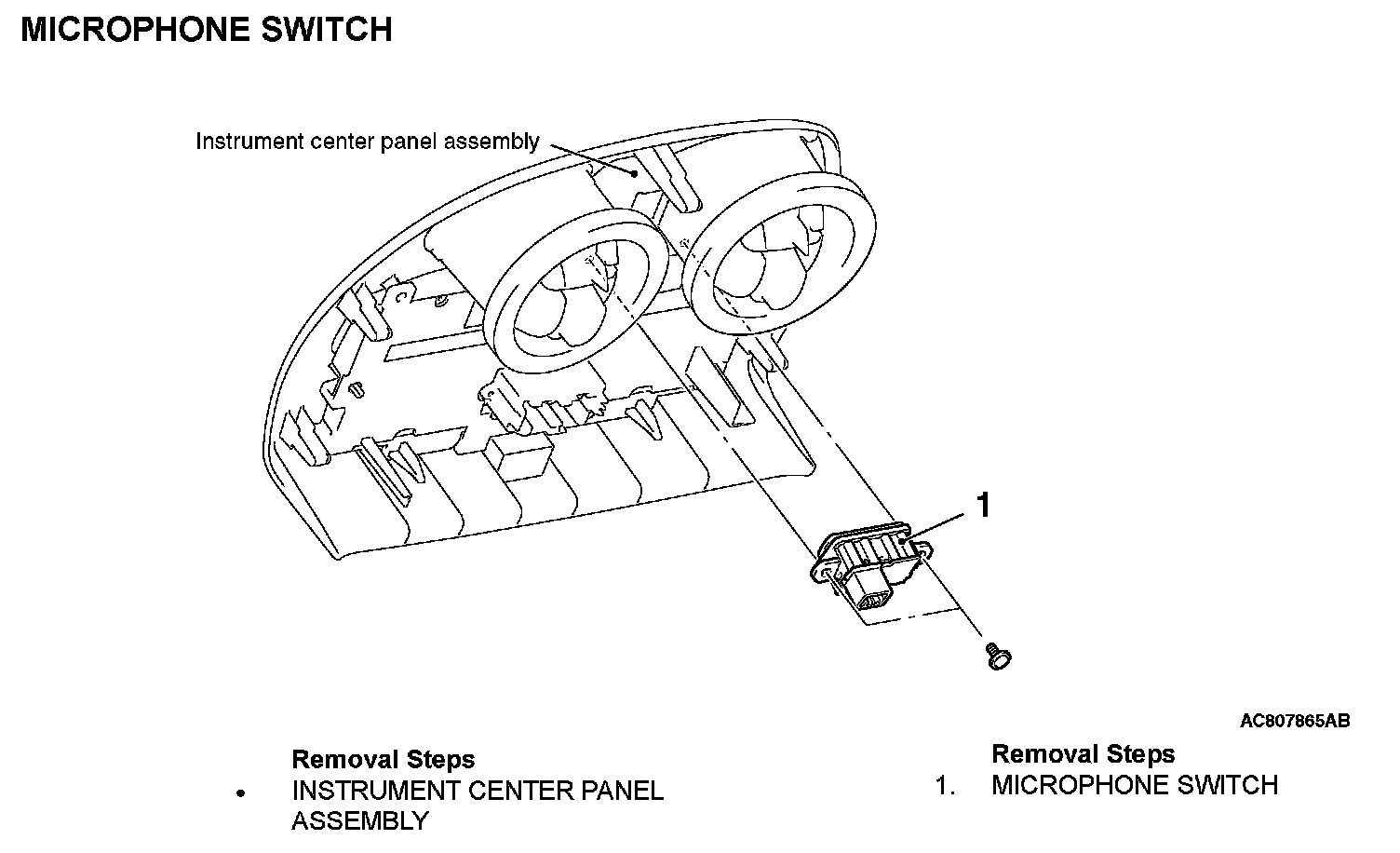

MICROPHONE SWITCH

Removal Step 1:

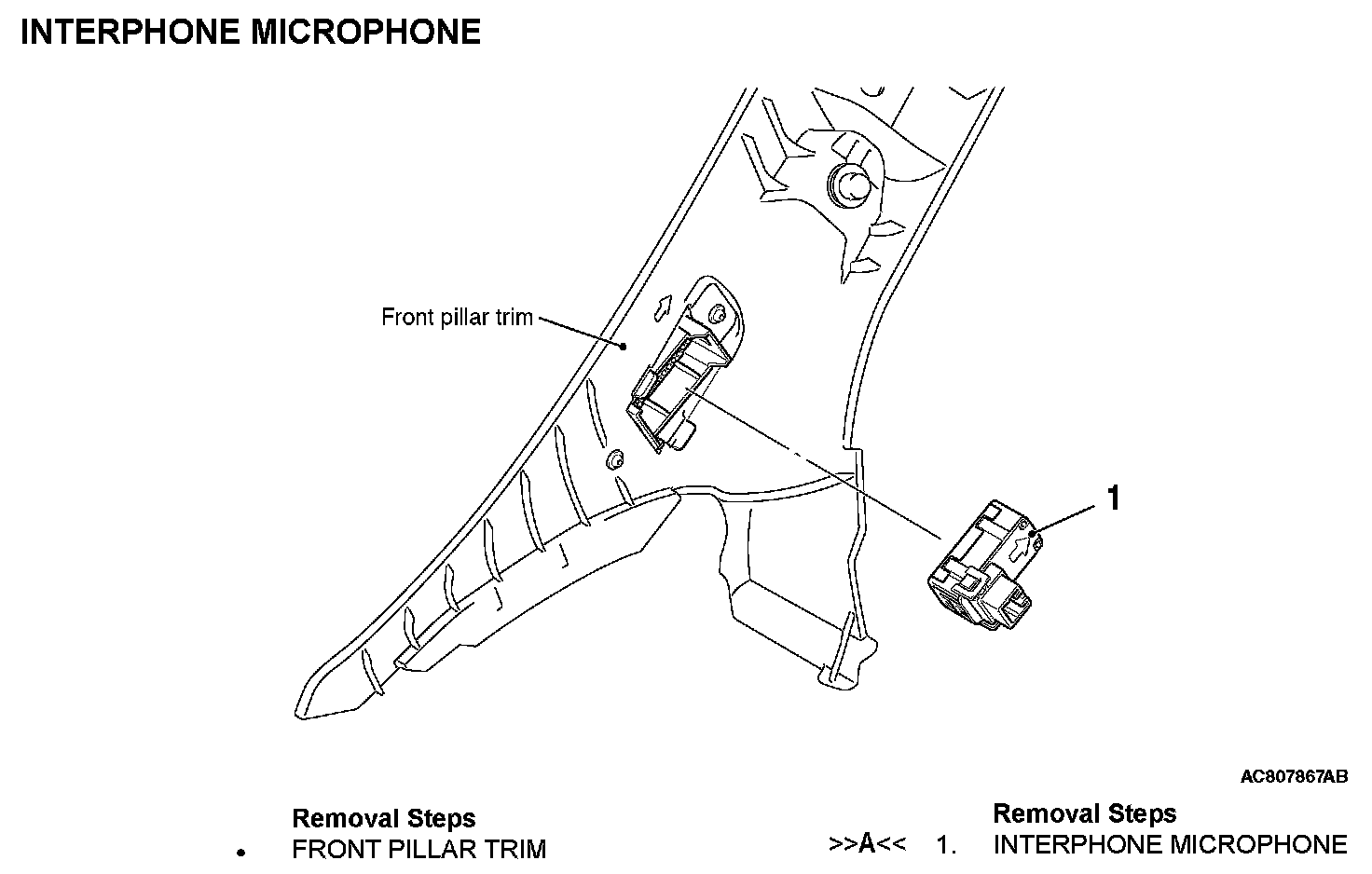

INTERPHONE MICROPHONE

Removal Step 1:

INSTALLATION SERVICE POINT

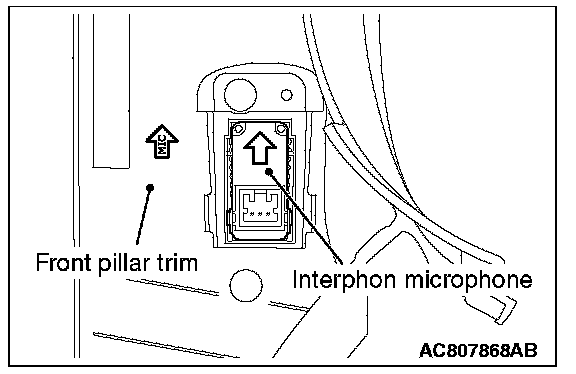

]]A[[ INTERPHONE MICROPHONE INSTALLATION







Install the interphone microphone so that the arrow mark is in the same direction as the one in the front pillar trim.
