Inspection Procedures
SYMPTOM PROCEDURESRear View Camera Image Is not Correctly Displayed.
CAUTION: Before replacing the rear view camera or inside rear view mirror assembly, ensure that the power supply circuit and the ground circuit are normal.

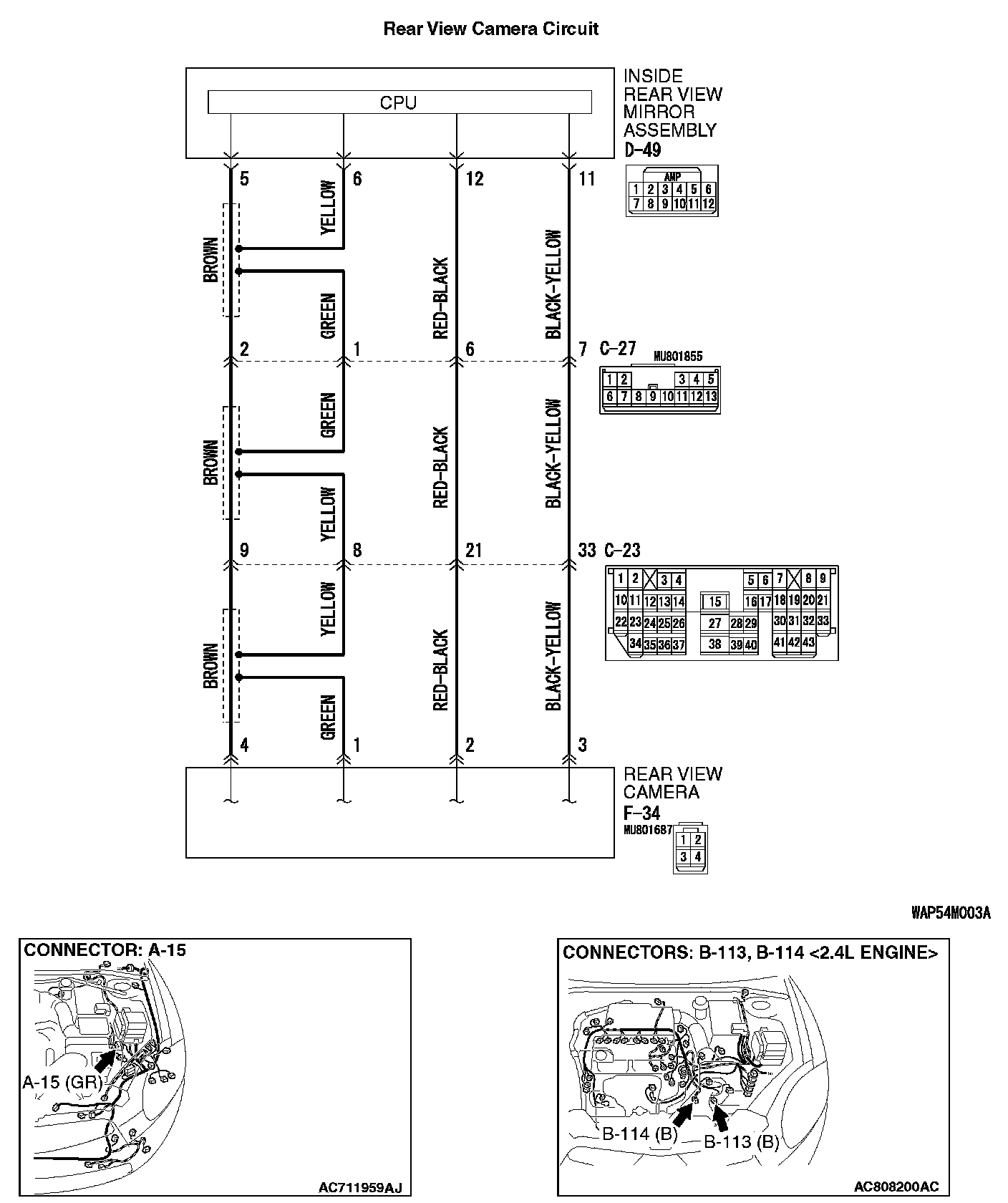

Rear View Camera Circuit (Part 1):
Rear View Camera Circuit (Part 2):
Rear View Camera Circuit (Part 3):
COMMENTS ON TROUBLE SYMPTOM
When the screen of rear view camera is not shown even if the selector or shift lever is "R" (Reverse) position, the rear view camera, the wiring harness, connectors, inside rear view mirror assembly, back up light switch [M/T] or transmission range switch [A/T] may be defective.
NOTE:
- If the indicator remains illuminated in a red color and the image is not displayed when the selector or the shift lever is turned to "R" (Reverse) position and "AUTO" button of inside rear view mirror assembly is pushed, the inside rear view mirror assembly has a problem.
- The inside rear view mirror assembly keeps the monitor non-displayed forcibly and illuminates the indicator when "AUTO" button is pressed and held for 12 seconds. Inside rear view mirror assembly stores the forced non-displayed state, it can be canceled by pushing "AUTO" button with the ignition switch "ON" position.
PROBABLE CAUSES
- The wiring harness or connectors may have loose, corroded, or damaged terminals, or terminals pushed back in the connector.
- Malfunction of the rear view camera
- Malfunction of the inside rear view mirror assembly
- Malfunction of the backup light switch [M/T] or transmission range switch [A/T]
DIAGNOSTIC PROCEDURE
STEP 1. Check the inside rear view mirror assembly.

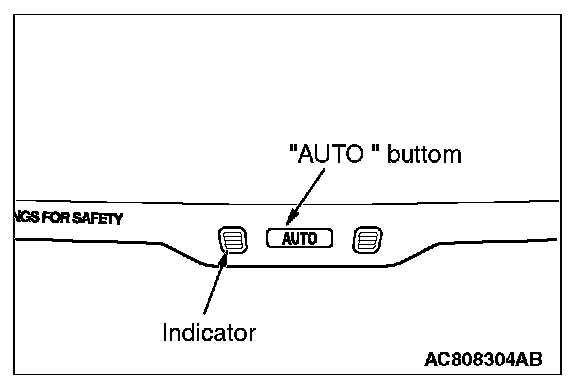

Check if the indicator of inside rear view mirror assembly illuminates in a red or blue color when the selector or the shift lever is turned to "R" (Reverse) position with the ignition switch "ON" position.
1. Turn the ignition switch to the "ON" position.
2. Move the selector or shift lever to the "R" (Reverse) position.
3. Check if the indicator of inside rear view mirror assembly illuminates in a red or blue color.
4. Check if the image from the rear view camera is displayed on the monitor when "AUTO" button is pressed shortly.
Q: Is the check result normal?
YES : Go to Step 14.
NO : Go to Step 2.

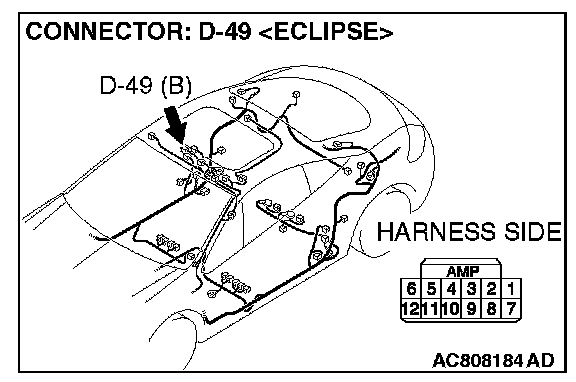

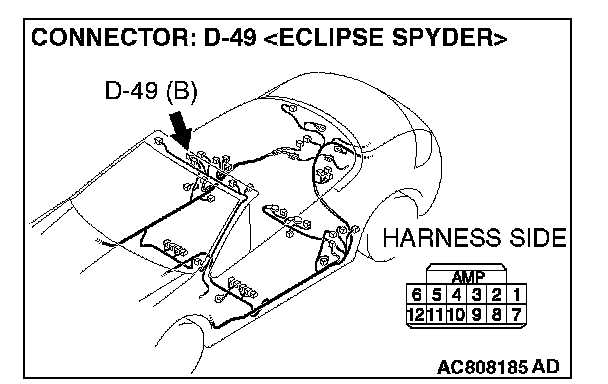

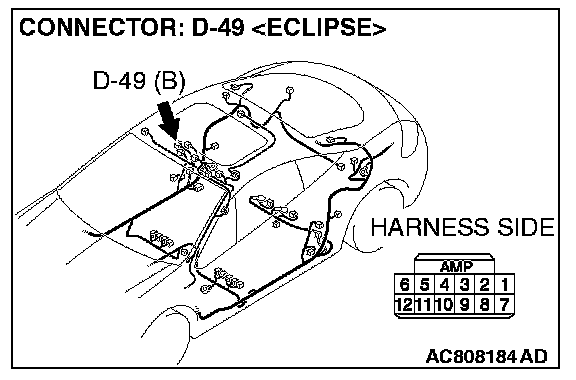

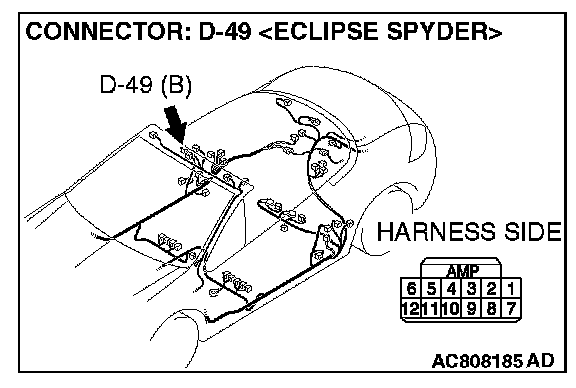

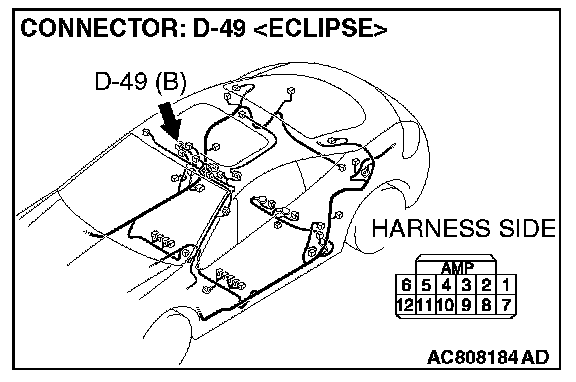

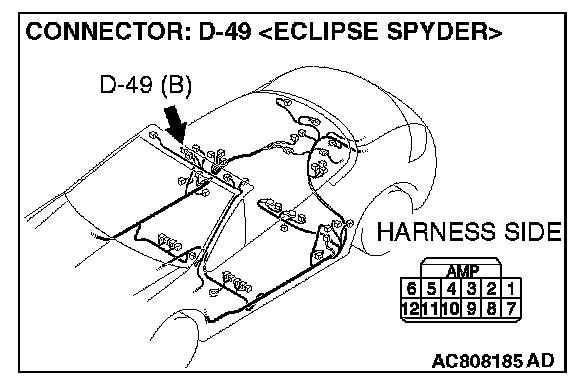

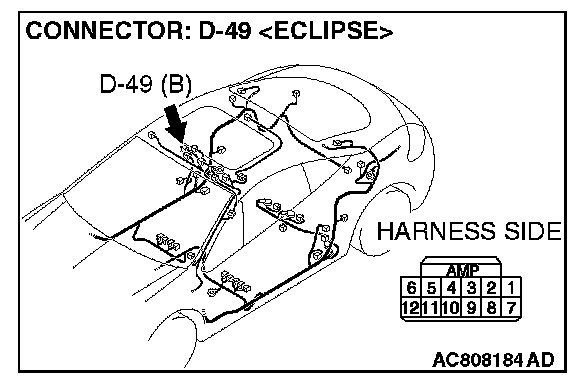

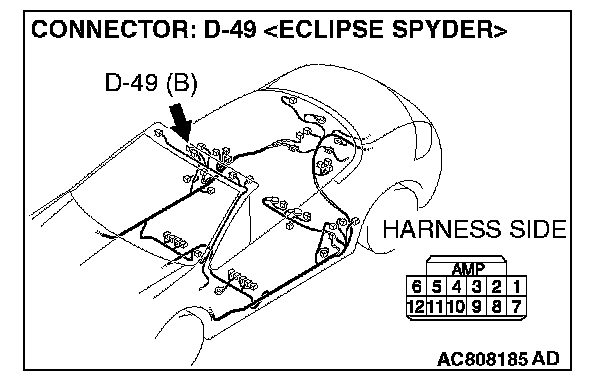

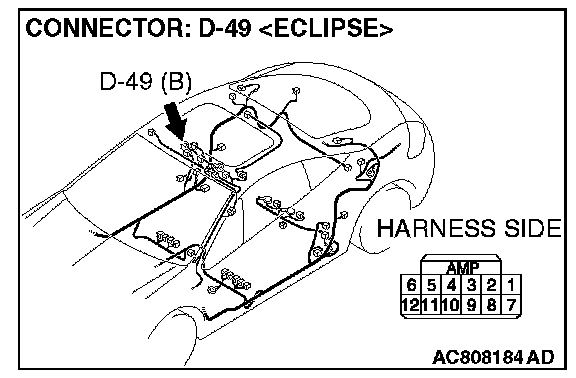

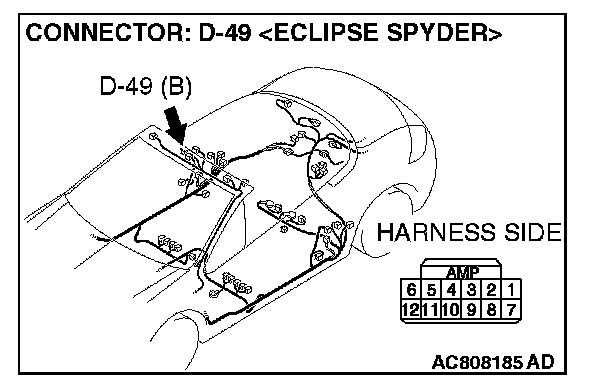

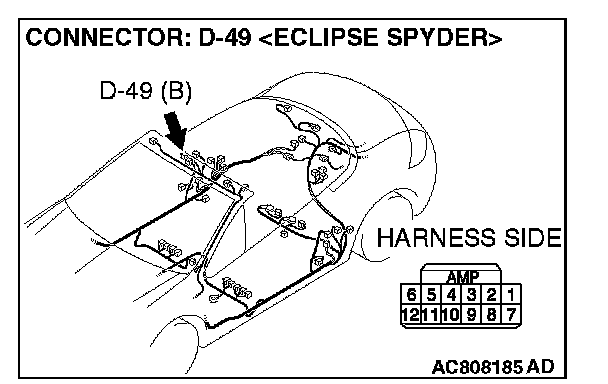

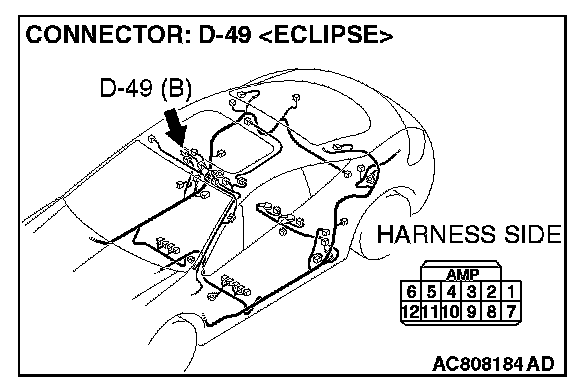

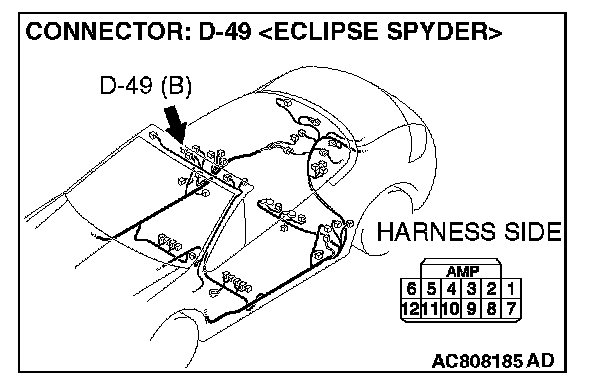

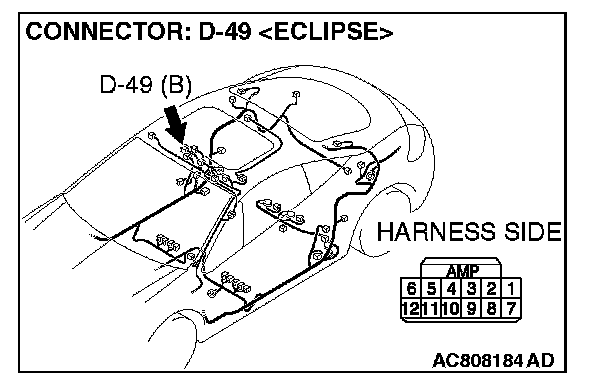

STEP 2. Check inside rear view mirror assembly connector D-49 for loose, corroded or damaged terminals, or terminals pushed back in the connector.
Q: Is inside rear view mirror assembly connector D-49 in good condition?
YES : Go to Step 3.
NO : Repair or replace the component(s).

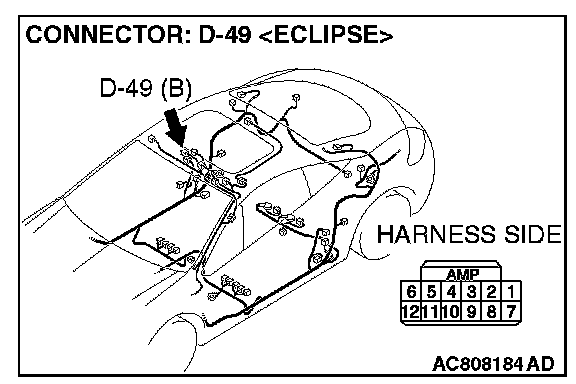

STEP 3. Measure the voltage at inside rear view mirror assembly connector D-49 in order to check the battery circuit of power supply system to the inside rear view mirror assembly (ignition switch IG2).
1. Disconnect inside rear view mirror assembly connector D-49, and measure at the wiring harness side.
2. Turn the ignition switch to the "ON" position.

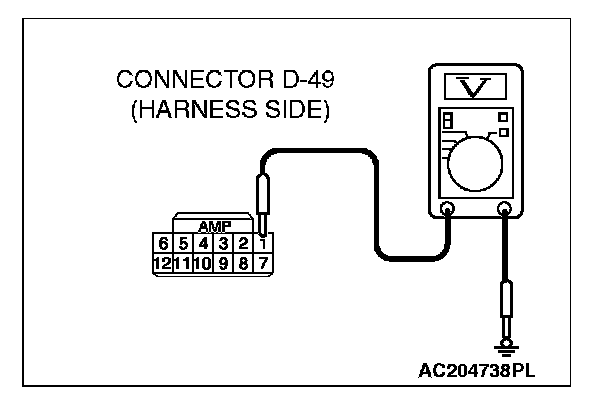

3. Measure the voltage between terminal 1 and ground.
- The voltage should measure approximately 12 volts (battery positive voltage).
Q: Is the measured voltage approximately 12 volts (battery positive voltage)?
YES : Go to Step 5.
NO : Go to Step 4.
STEP 4. Check the wiring harness between inside rear view mirror assembly connector D-49 (terminal 1) and the ignition switch (IG2).

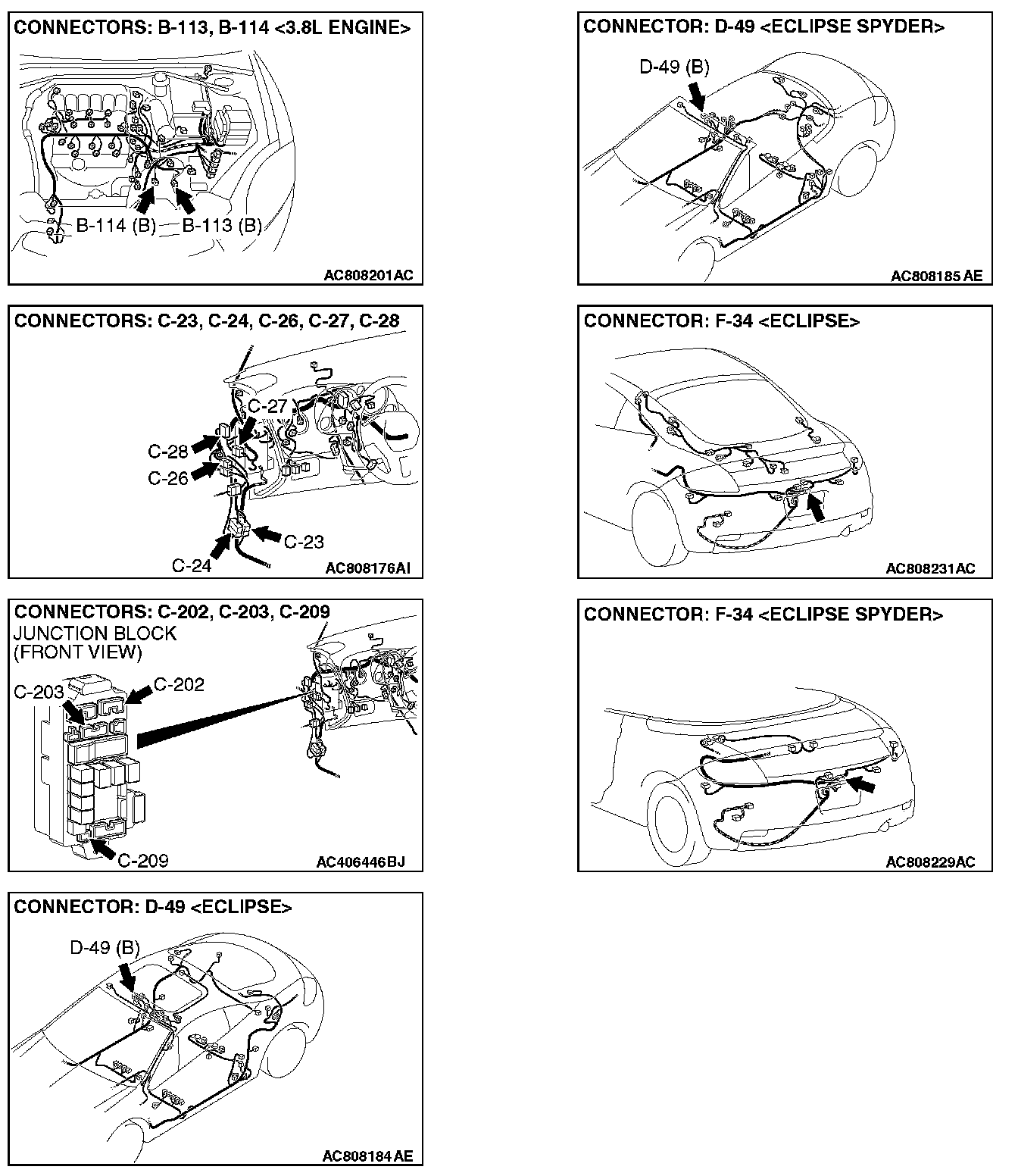

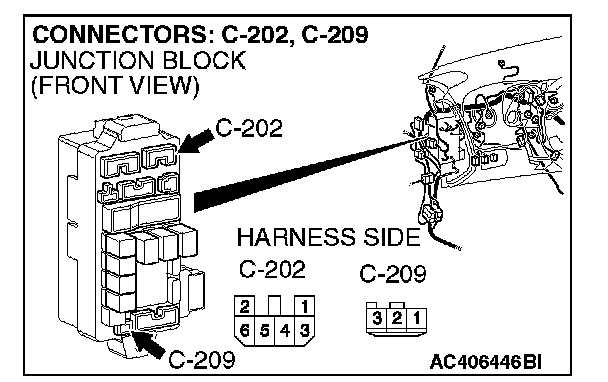

NOTE: Also check junction block connectors C-202 and C-209 for loose, corroded, or damaged terminals, or terminals pushed back in the connector. If junction block connectors C-202 and C-209 is damaged, repair or replace the connector.
Q: Is the wiring harness between inside rear view mirror assembly connector D-49 (terminal 1) and ignition switch (IG2) in good condition?
YES : Refer to ignition switch diagnosis. Symptom Chart
NO : Repair the wiring harness.
STEP 5. Measure the resistance at inside rear view mirror assembly connector D-49 in order to check the ground circuit to the inside rear view mirror assembly.
1. Disconnect inside rear view mirror assembly connector D-49, and measure at the wiring harness side.

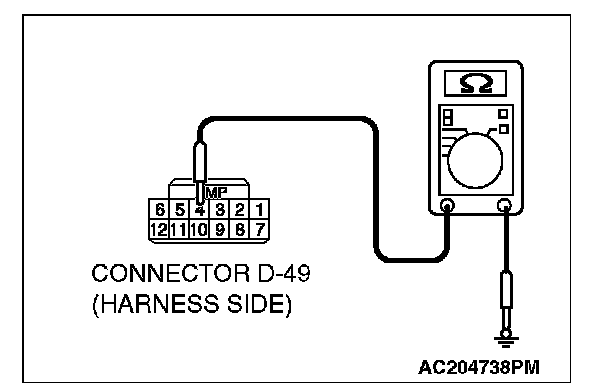

2. Measure the resistance between terminal 4 and ground.
- The resistance should be 2 ohms or less.
Q: Is the measured resistance 2 ohms or less?
YES : Go to Step 7.
NO : Go to Step 6.
STEP 6. Check the wiring harness between inside rear view mirror assembly connector D-49 (terminal 4) and ground.

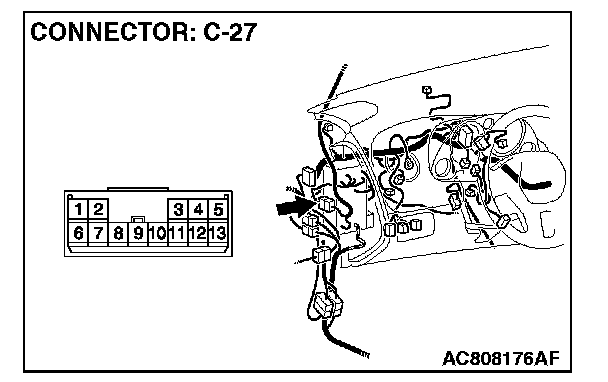

NOTE: Also check intermediate connector C-27 for loose, corroded, or damaged terminals, or terminals pushed back in the connector. If intermediate connector C-27 are damaged, Repair or replace the damaged component(s).
Q: Is the wiring harness between inside rear view mirror assembly connector D-49 (terminal 4) and ground in good condition?
YES : The trouble can be an intermittent malfunction.
NO : Repair the wiring harness.
STEP 7. Check the ignition switch (IG1) circuit to the inside rear view mirror assembly. Measure the voltage at inside rear view mirror assembly connector D-49.
1. Disconnect inside rear view mirror assembly connector D-49 and measure the voltage available at the wiring harness side of the connector.
2. Turn the ignition switch to the "ON" position, and move the shift lever [M/T] or the selector lever [A/T] to the "R" position.

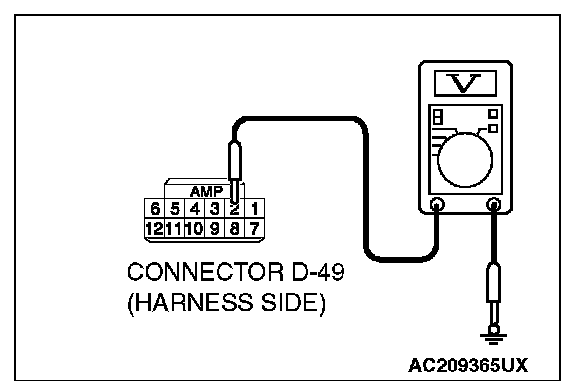

3. Measure the voltage between terminal 2 and ground.
- The voltage should equal approximately 12 volts (battery positive voltage).
Q: Is the measured voltage approximately 12 volts (battery positive voltage)?
YES : Go to Step 14.
NO : Go to Step 8.

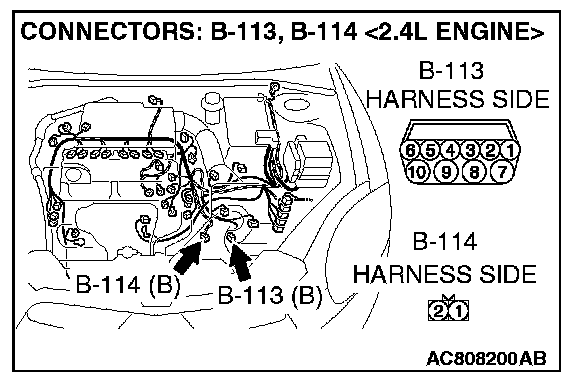

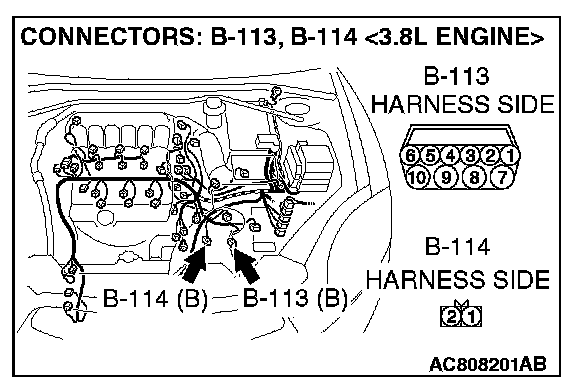

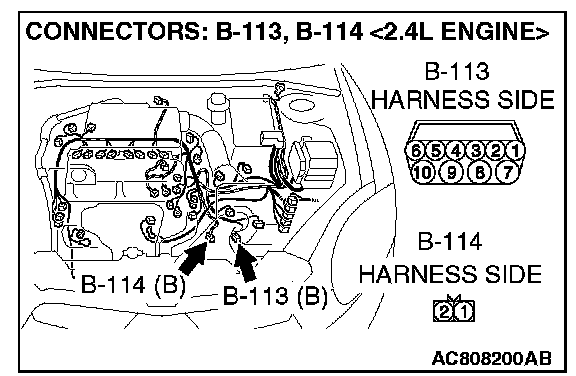

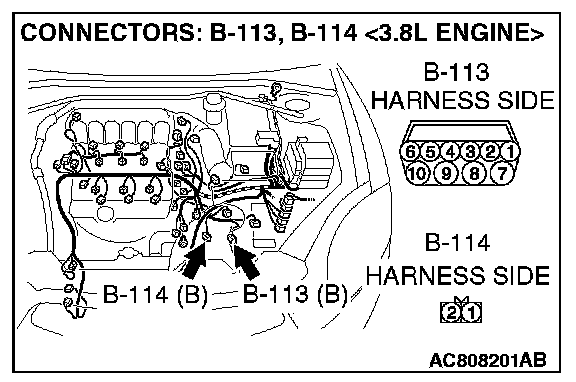

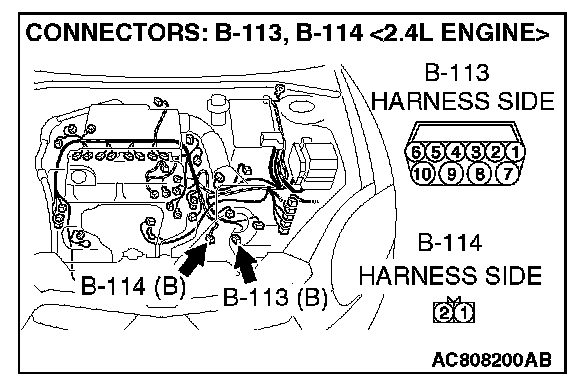

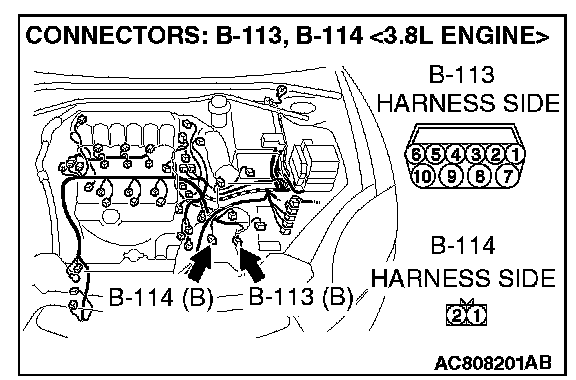

STEP 8. Check backup light switch connector B-114 [M/T] or transmission range switch connector B-113 [A/T] for loose, corroded or damaged terminals, or terminals pushed back in the connector.
Q: Is backup light switch connector B-114 [M/T] or transmission range switch connector B-113 [A/T] in good condition?
YES : Go to Step 9.
NO : Repair or replace the damaged component(s).
STEP 9. Check the ignition switch (IG1) circuit to the backup light switch. Measure the voltage at backup light switch connector B-114 [M/T] or transmission range switch connector B-113 [A/T].
1. Disconnect backup light switch connector B-114 [M/T] or transmission range switch connector B-113 [A/T] and measure the voltage available at the wiring harness side of the connector.
2. Turn the ignition switch to the "ON" position, and move the shift lever [M/T] or the selector lever [A/T] to the "R" position.

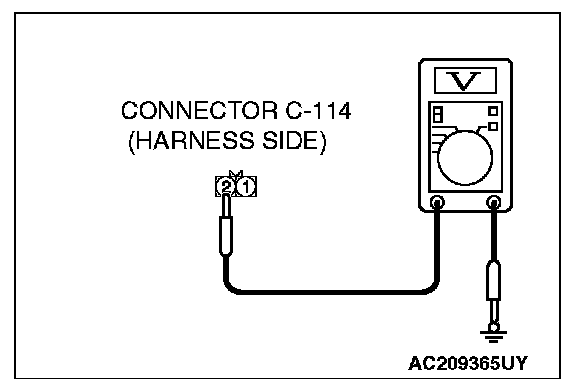

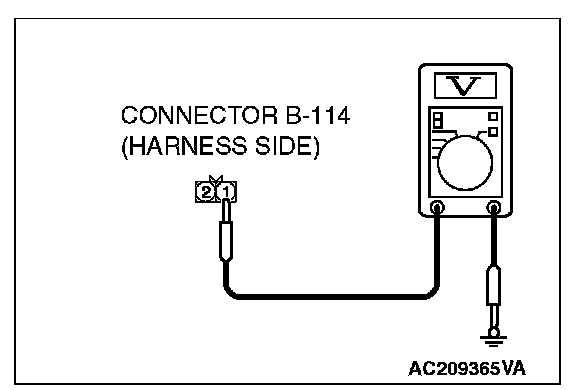

3. Measure the voltage between terminal 2 and ground.[M/T]
- The voltage should equal approximately 12 volts (battery positive voltage).

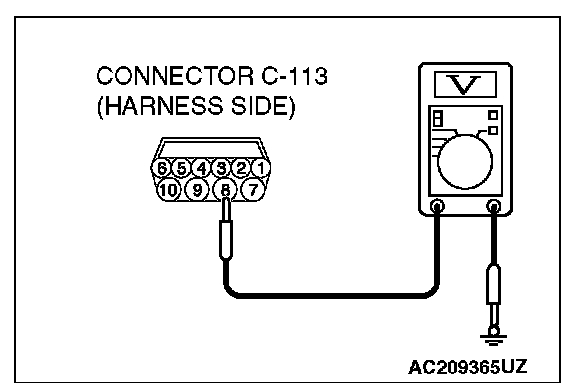

4. Measure the voltage between terminal 8 and ground.[A/T]
- The voltage should equal approximately 12 volts (battery positive voltage).
Q: Is the measured voltage approximately 12 volts (battery positive voltage)?
YES [M/T] : Go to Step 12.
YES [A/T] : Go to Step 11.
NO : Go to Step 10.
STEP 10. Check the wiring harness between backup light switch connector B-114 (terminal 2) [M/T] or transmission range switch connector B-113 (terminal 8) and the ignition switch (IG1).

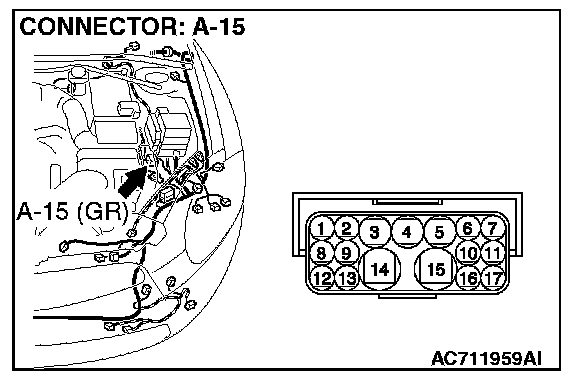

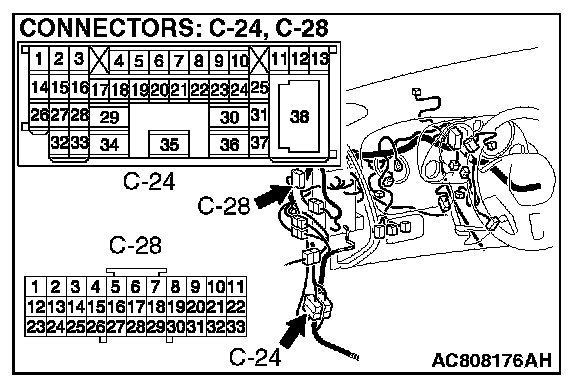

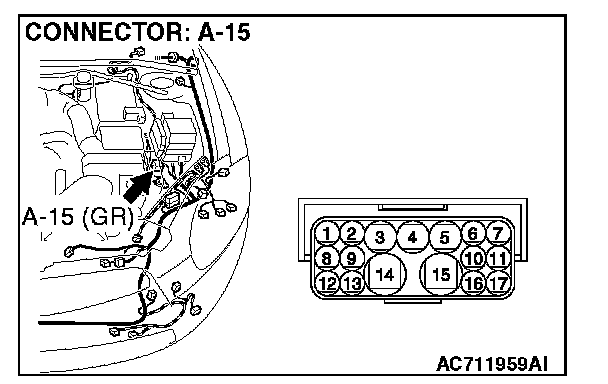

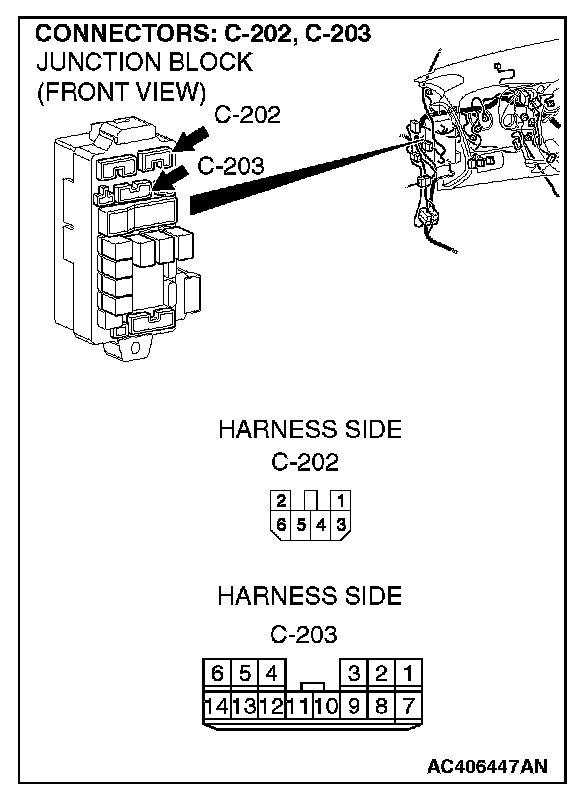

NOTE: Also check junction block connectors C-202 and C-203, joint connector C-28, intermediate connectors A-15 and C-24 for loose, corroded, or damaged terminals, or terminals pushed back in the connector. If junction block connectors C-202, C-203, joint connector C-28, intermediate connectors A-15 and C-24 are damaged, Repair or replace the damaged component(s).
Q: Is the wiring harness between backup light switch connector B-114 (terminal 2) [M/T] or transmission range switch connector B-113 (terminal 8) [A/T] and the ignition switch (IG1) in good condition?
YES : Refer to ignition switch diagnosis. Symptom Chart
NO : The wiring harness may be damaged or the connector(s) may have loose, corroded or damaged terminals, or terminals pushed back in the connector. Repair the wiring harness as necessary.
STEP 11. Check the transmission range switch and control cable.
Check if the transmission range switch and control cable are adjusted normally.
Q: Is the check result normal?
YES : Go to Step 12.
NO : Adjust the transmission range switch and control cable.
STEP 12. Check the inside rear view mirror assembly circuit to the backup light switch [M/T] or transmission range switch [A/T]. Measure the voltage at backup light switch connector B-114 [M/T] or transmission range switch connector B-113 [A/T].
1. Disconnect backup light switch connector B-114 [M/T] or transmission range switch connector B-113 [A/T] and measure the voltage available at the wiring harness side of the connector.
2. Turn the ignition switch to the "ON" position, and move the shift lever [M/T] or the selector lever [A/T] to the "R" position.
3. Measure the voltage between terminal 1 and ground.[M/T]
- The voltage should equal approximately 12 volts (battery positive voltage).

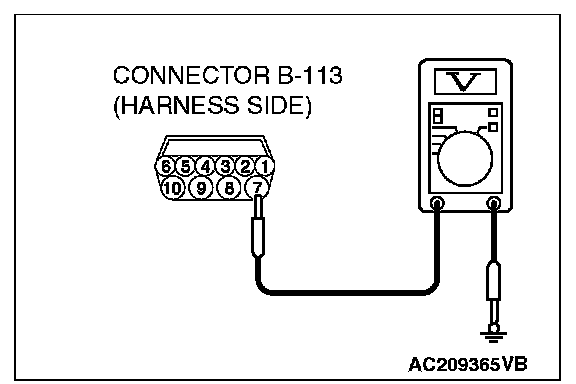

4. Measure the voltage between terminal 7 and ground.[A/T]
- The voltage should equal approximately 12 volts (battery positive voltage).
Q: Is the measured voltage approximately 12 volts (battery positive voltage)?
YES : Go to Step 13.
NO : Replace the backup light switch [M/T] or transmission range switch [A/T].
STEP 13. Check the wiring harness between inside rear view mirror assembly connector D-49 (terminal 2) and the backup light switch connector B-114 [M/T] (terminal 1) or transmission range switch connector B-113 [A/T] (terminal 7).

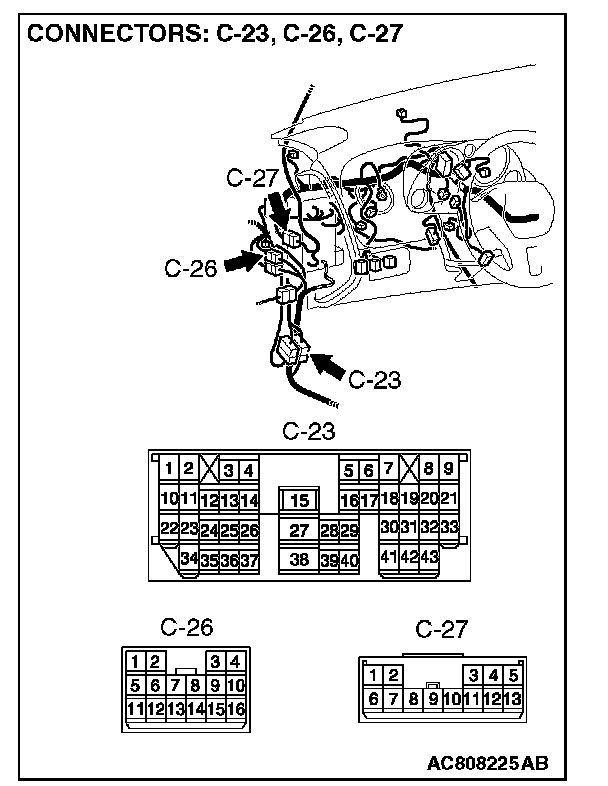

NOTE: Also check intermediate connectors A-15, C-23, C-26 and C-27 for loose, corroded, or damaged terminals, or terminals pushed back in the connector. If intermediate connectors A-15, C-23, C-26 and C-27 are damaged, Repair or replace the damaged component(s).
Q: Is the wiring harness between inside rear view mirror assembly connector D-49 (terminal 2) and the backup light switch connector B-114 [M/T] (terminal 1) or transmission range switch connector B-113 [A/T] (terminal 7) in good condition?
YES : Replace the inside rear view mirror.
NO : The wiring harness may be damaged or the connector(s) may have loose, corroded or damaged terminals, or terminals pushed back in the connector. Repair the wiring harness as necessary.

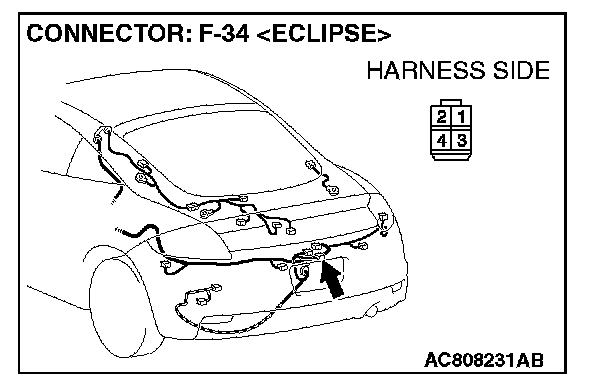

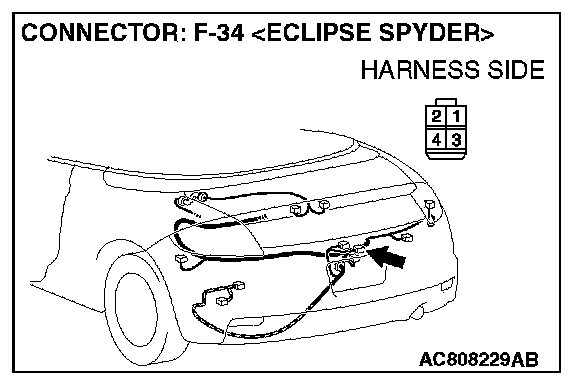

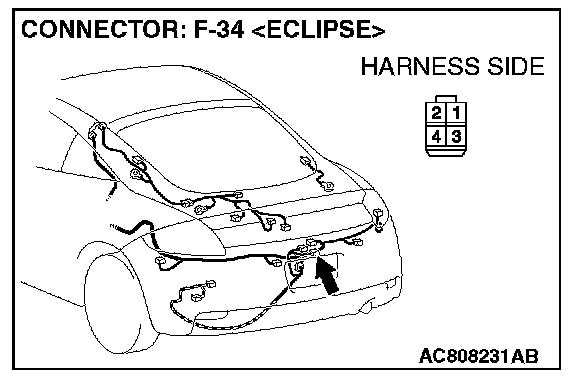

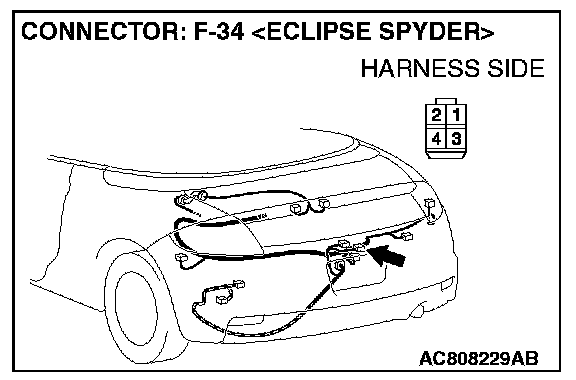

STEP 14. Check rear view camera connector F-34 for loose, corroded or damaged terminals, or terminals pushed back in the connector.
Q: Is rear view camera connector F-34 in good condition?
YES : Go to Step 15.
NO : Repair or replace the component(s). The speakers should sound.
STEP 15. Check the wiring harness between inside rear view mirror assembly connector D-49 (terminals 5, 11, 12) and rear view camera connector F-34 (terminals 4, 3, 2).
- Check the ground wire for open circuit.

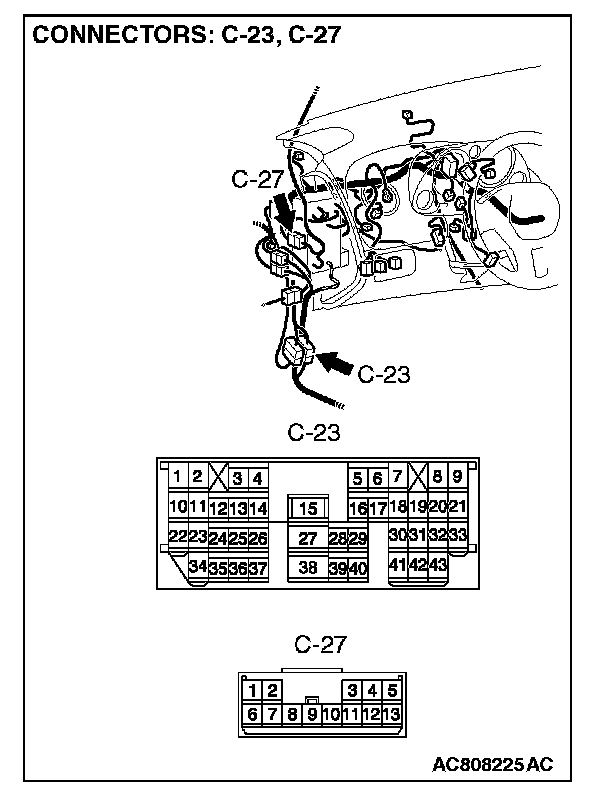

NOTE: Also check intermediate connectors C-23 and C-27 for loose, corroded, or damaged terminals, or terminals pushed back in the connector. If intermediate connectors C-23 and C-27 is damaged, repair or replace the connector.
Q: Is the wiring harness between inside rear view mirror assembly connector D-49 (terminals 5, 11, 12) and rear view camera connector F-34 (terminals 4, 3, 2) in good condition?
YES : Go to Step 16.
NO : The wiring harness may be damaged or the connector(s) may have loose, corroded or damaged terminals, or terminals pushed back in the connector. Repair the wiring harness as necessary.
STEP 16. Temporarily replace the rear view camera. Check that the normal conversation is possible with the rear view camera.
Q: Is the normal conversation possible with the rear view camera?
YES : Replace the inside rear view mirror assembly.
NO : Replace the rear view camera.
