Data List Reference Table

DATA LIST REFERENCE TABLE

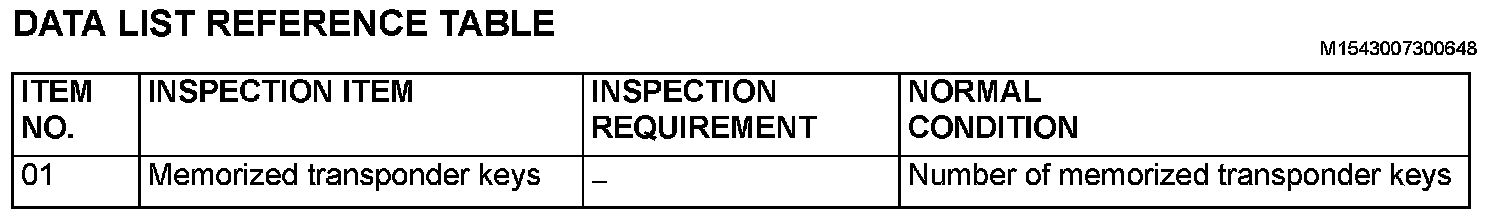

Data List Reference Table:

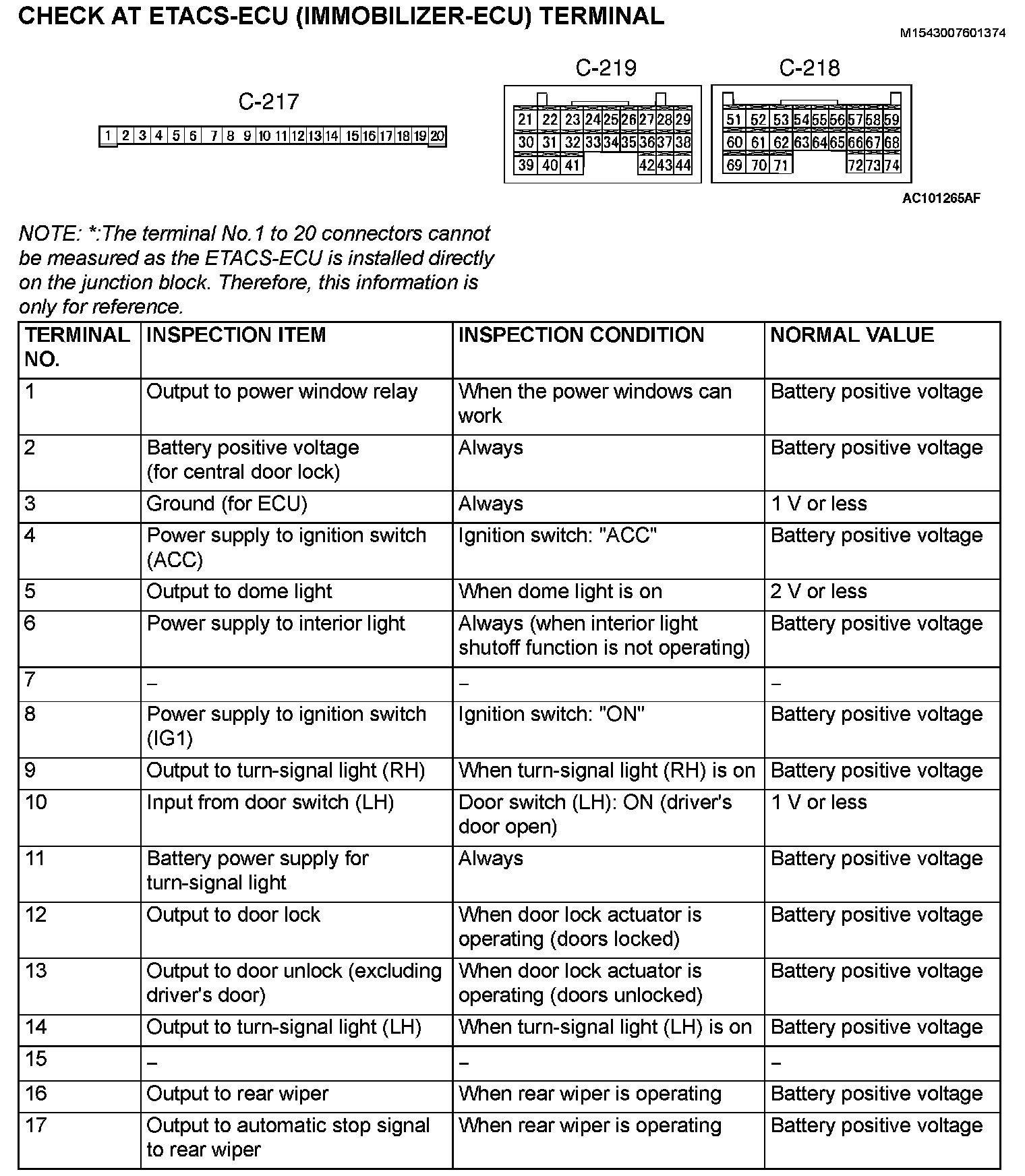

Check At ETACS-ECU (Immobilizer-ECU) Terminal (Part 1):

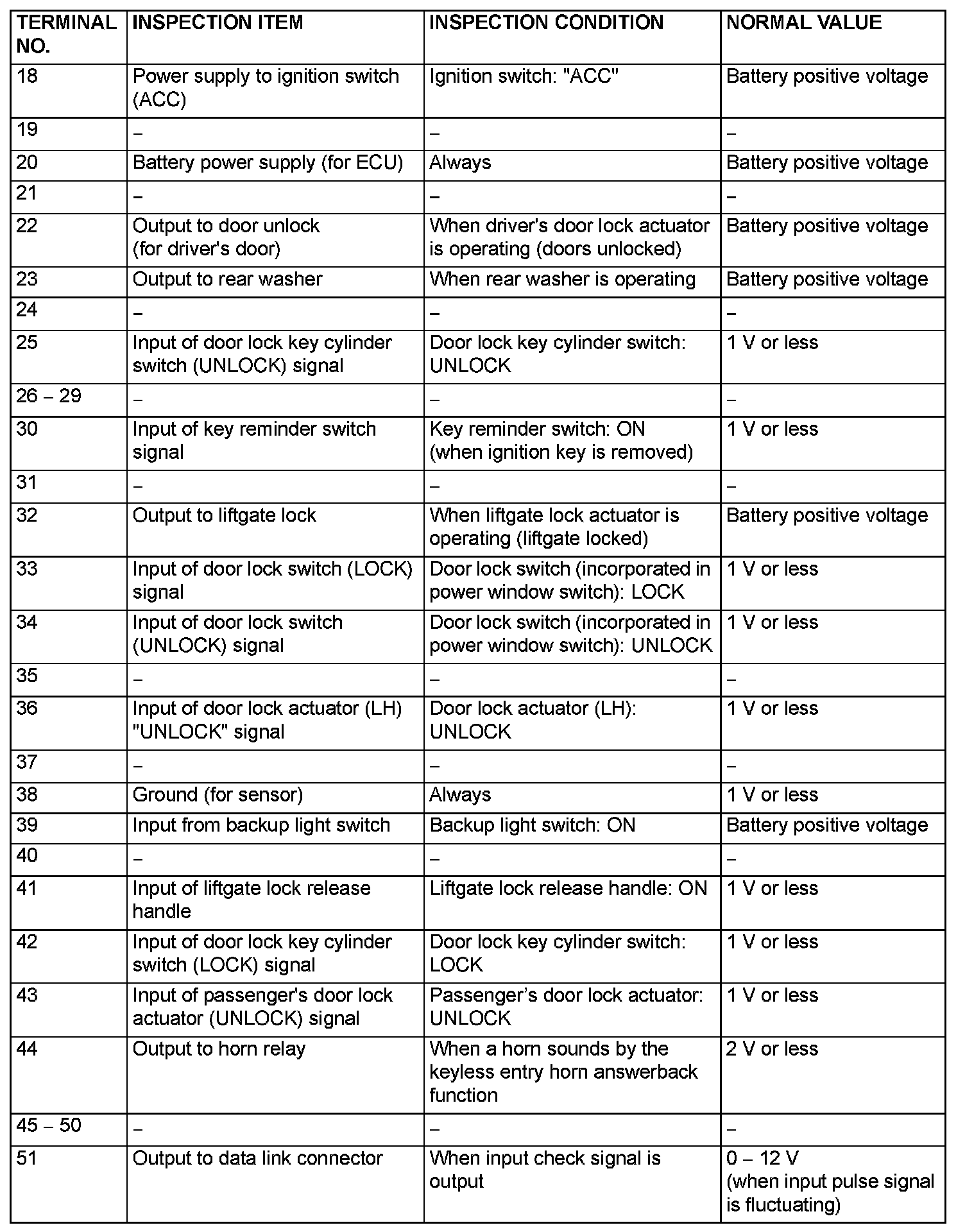

Check At ETACS-ECU (Immobilizer-ECU) Terminal (Part 2):

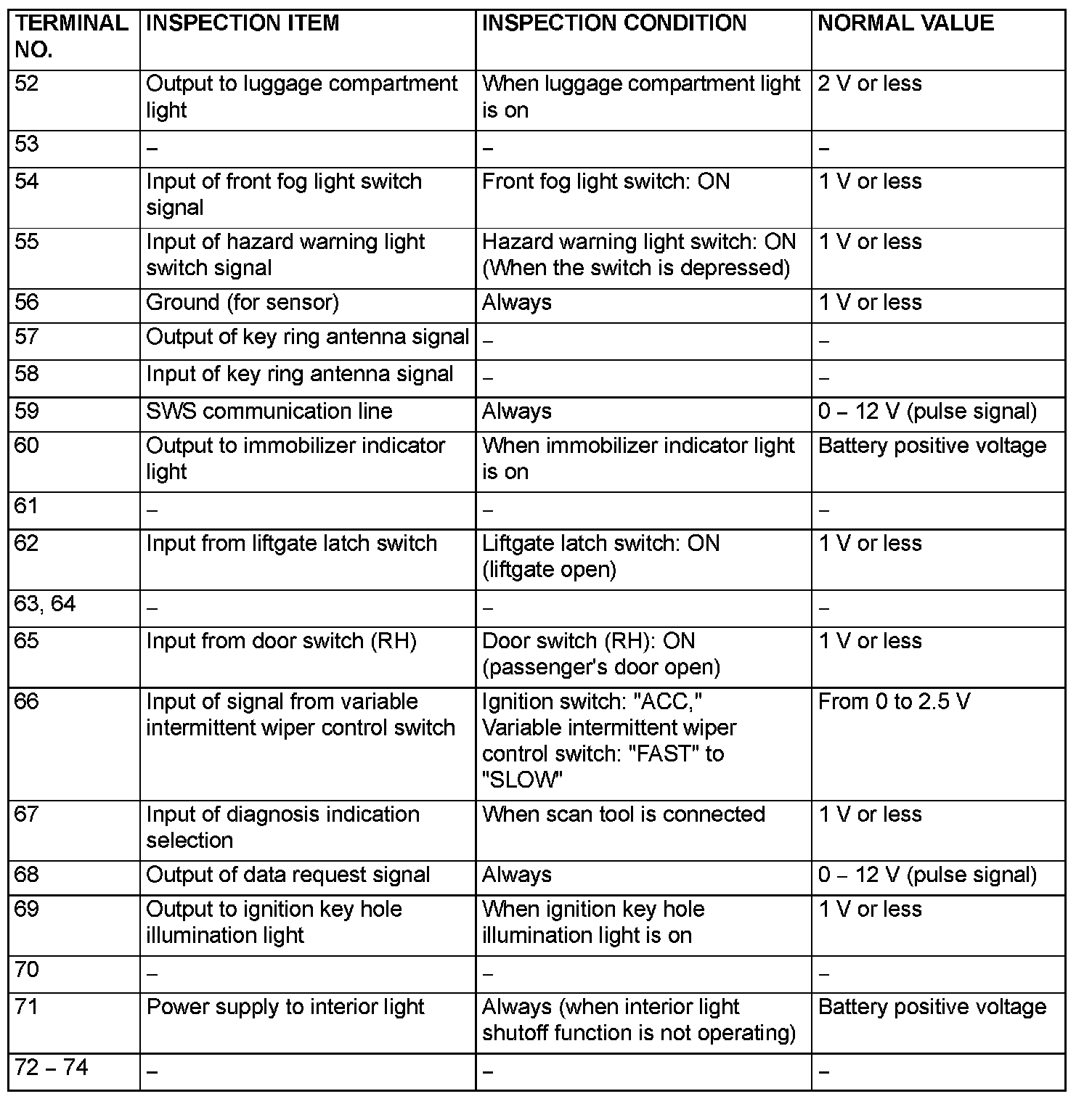

Check At ETACS-ECU (Immobilizer-ECU) Terminal (Part 3):
