ENCRYPTED CODE REGISTRATION USING BARCODE NO.

When the ignition key that starts the engine is replaced due to the replacement of the ignition key set, the ignition key cylinder, etc., the barcode No. must be used to register encrypted codes.













CAUTION:

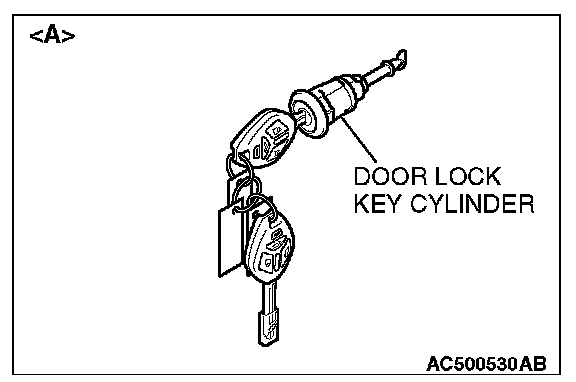

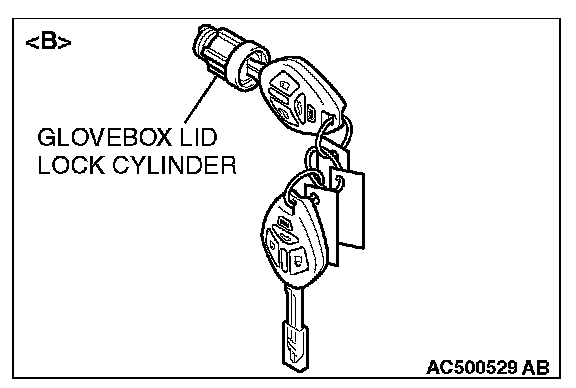

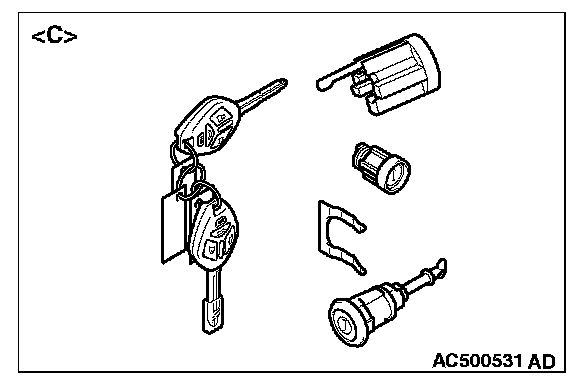

- Do not register the ignition keys other than the ignition key that starts the engine.(When replacing by the door lock key cylinder of illustration [A] or the glove box lid lock cylinder of illustration [B], the engine cannot start if the encrypted code is registered with the bar code on the ignition key supplied simultaneously. If the ignition key using for each lock cylinder and starting engine is used as a common ignition key, replace by the key set of illustration [C].)
- After the ignition key registration is finished, discard the barcode plate correctly at Mitsubishi dealer. The barcode plate has important information of the immobilizer system. Therefore, improper disposal of the barcode plate may decrease the security level.
- When the transmitter is replaced, the transmitter must be registered after registering the encrypted code.

Required Special Tools:
- MB991958: Scan Tool (M.U.T.-III Sub Assembly)
- MB991824: V.C.I.
- MB991827: M.U.T.-III USB Cable
- MB991910: M.U.T.-III Main Harness A







CAUTION: To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.

1. Connect scan tool MB991958 to the data link connector.
2. Turn the ignition switch to the "ON" position.







3. Select "System select."

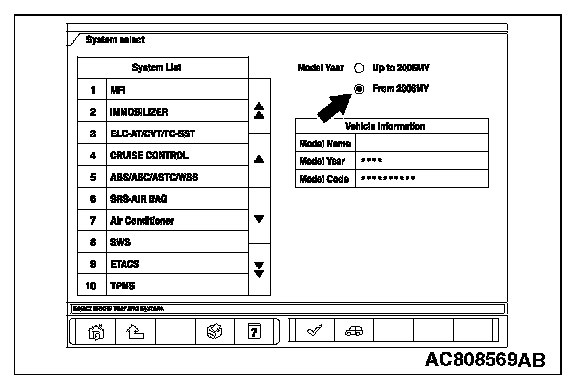

4. Choose "From 2006."

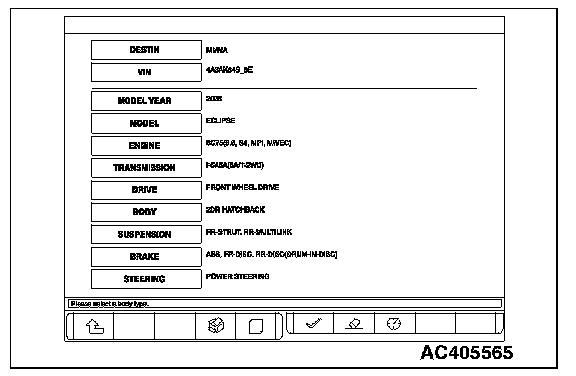

5. Enter the VIN code of the vehicle that is registered. Then, press "OK" button.

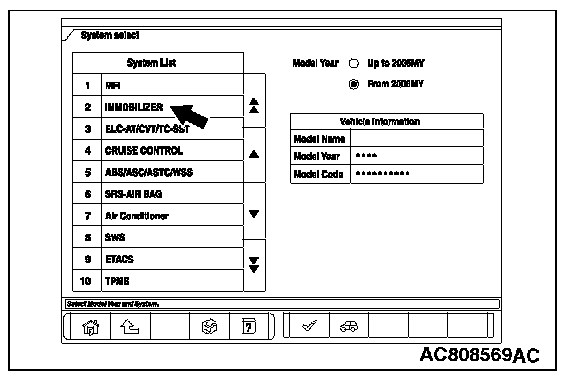

6. Select "IMMOBILIZER."

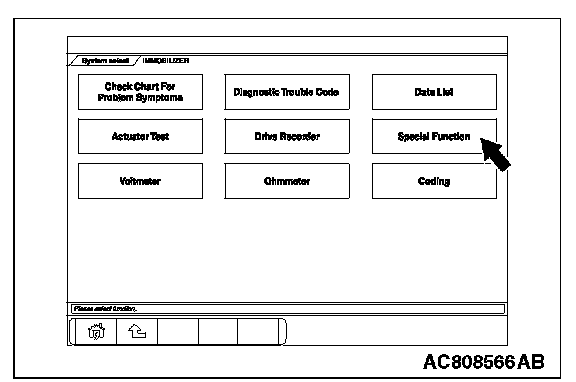

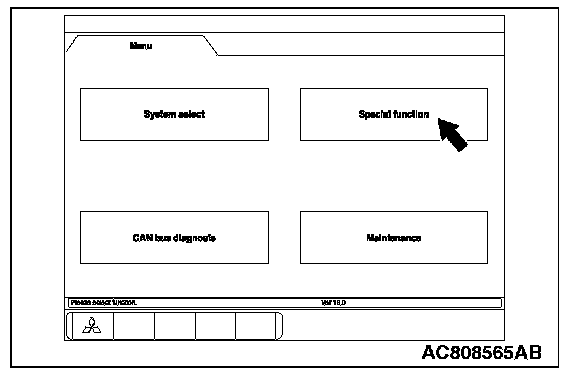

7. Select "Special Function."

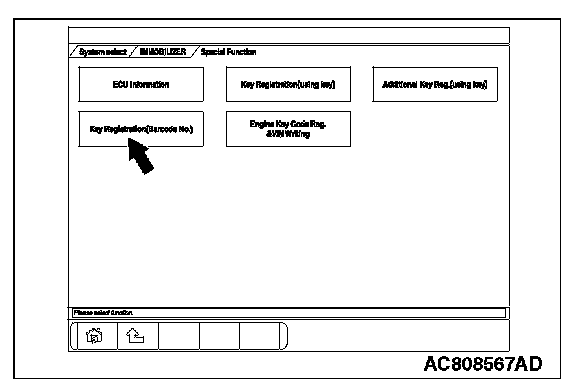

8. Select "Key Registration (Barcode No.)."

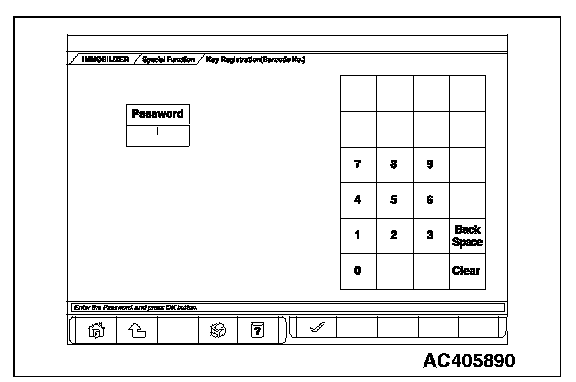

9. Enter the password of the vehicle, and press the OK button.

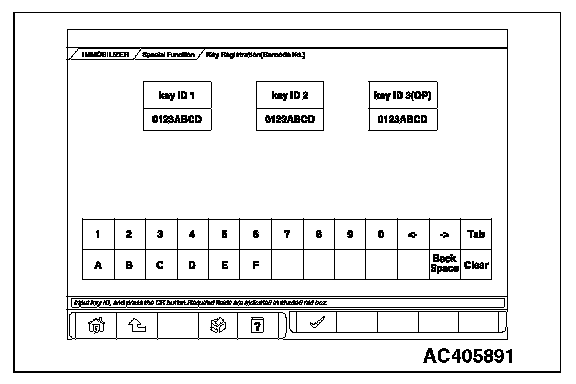

10. Enter the ID on the bar code plate which is attached to the ignition key, and press the OK button.

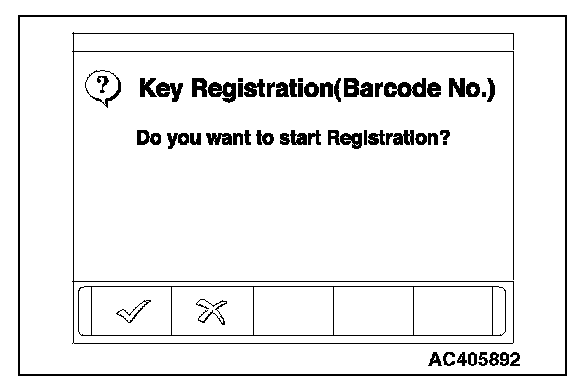

11. When the execution confirmation menu of the key registration (Barcode No.) is displayed, press the OK button.

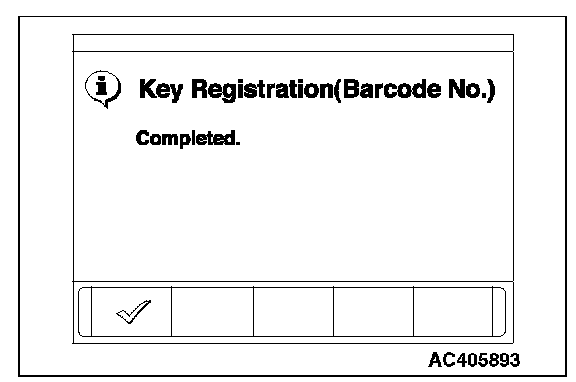

12. When the key registration completion menu is displayed, press the OK button.
