Antenna, Radio: Service and Repair

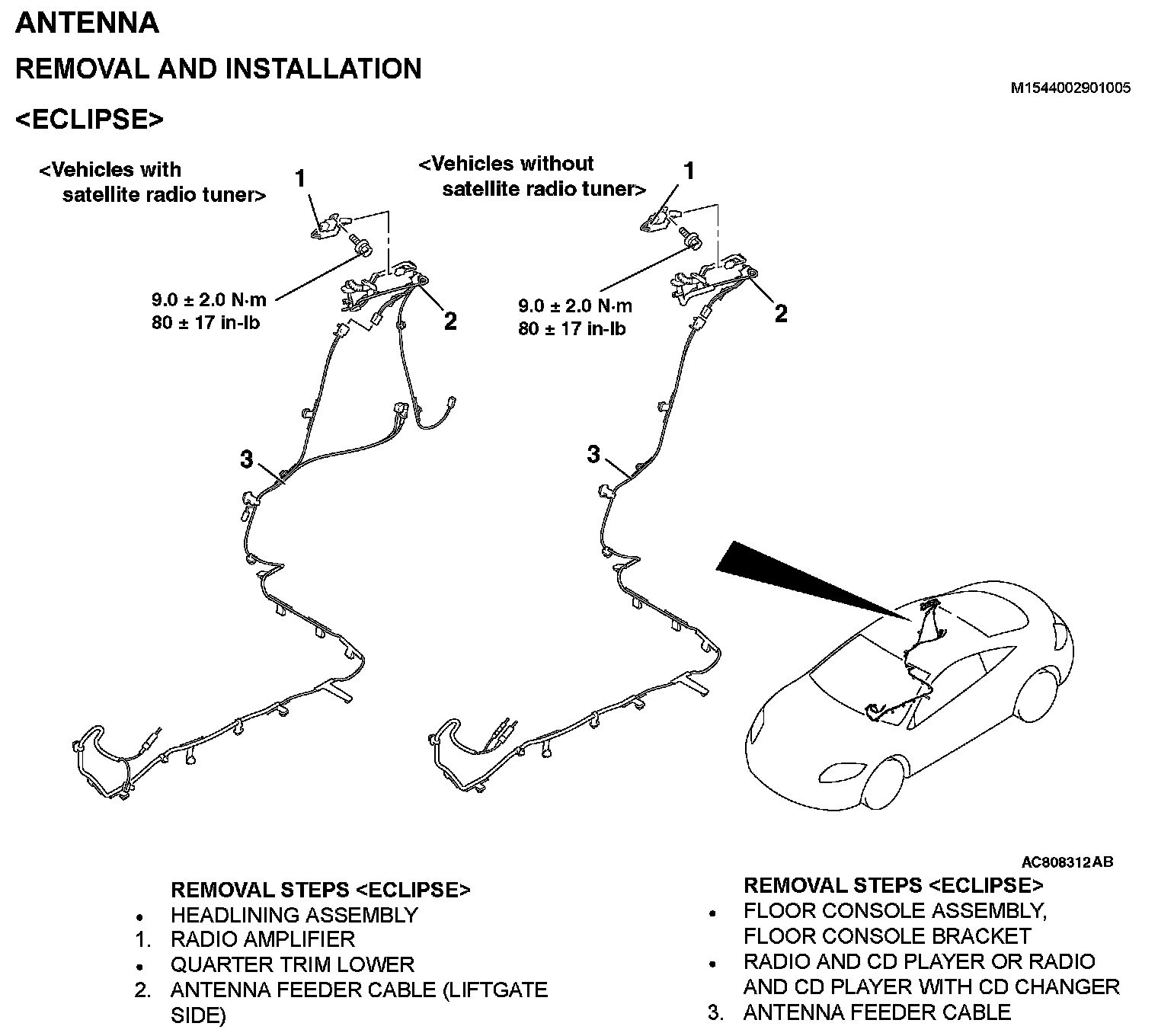

ANTENNA
REMOVAL AND INSTALLATION
Removal Steps 1-3:

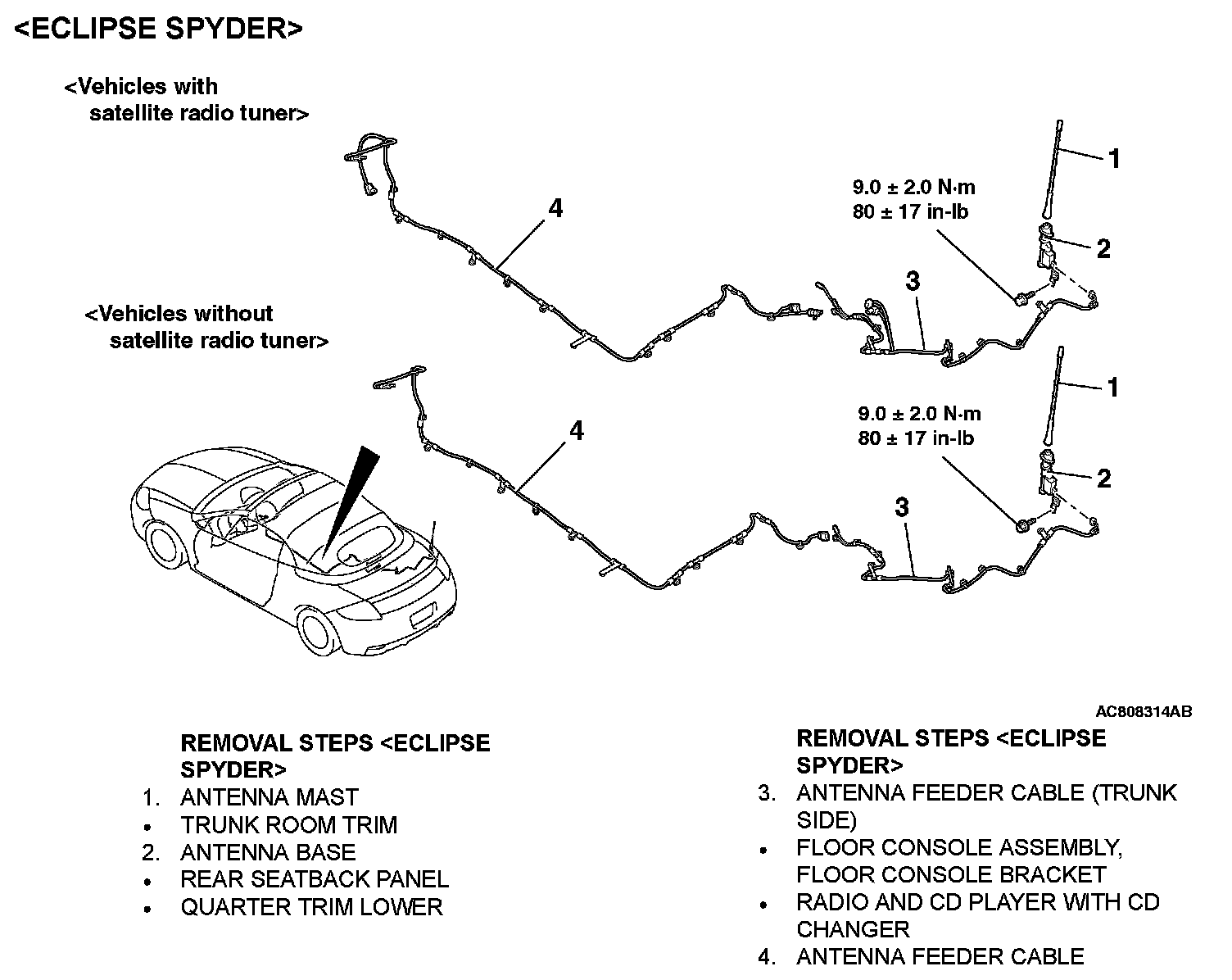

Removal Steps 1-4:
