U1114

DTC U1114: TPMS-ECU time-out

CAUTION:
- If DTC U1114 is set in the combination meter, always diagnose the CAN bus lines.
- Whenever the ECU is replaced, ensure that the communication circuit is normal.

DTC SET CONDITION
The combination meter communicates with the TPMS-ECU through CAN bus lines. If it cannot receive all the necessary signals from the SRS-ECU, DTC U1114 is set.

TECHNICAL DESCRIPTION (COMMENT)

Current trouble
- Connector(s) or wiring harness in the CAN bus lines between the TPMS-ECU and the combination meter, the power supply system to the TPMS-ECU, the TPMS-ECU itself, or the combination meter may be defective.

Past trouble
- Carry out diagnosis with particular emphasis on connector(s) or wiring harness in the CAN bus lines between the TPMS-ECU and the combination meter, and the power supply system to the TPMS-ECU. For diagnosis procedures, refer to "How to cope with past trouble".

NOTE: For a past trouble, you may not find it by the M.U.T.-III CAN bus diagnostics even if there is a failure in CAN bus lines, and check the CAN bus lines. You can narrow down the possible cause of the trouble by referring to the DTC, which is set regarding the CAN communication- linked ECUs (Refer to CAN bus line Diagnostics Flow Explanation About the Scan Tool (M.U.T.-III) CAN Bus Diagnostics).

TROUBLESHOOTING HINTS
- The wiring harness or connectors may have loose, corroded, or damaged terminals, or terminals pushed back in the connector.
- Malfunction of TPMS-ECU
- Malfunction of combination meter

DIAGNOSIS

Required Special Tools:
- MB991958: Scan Tool (M.U.T.-III Sub Assembly)
- MB991824: V.C.I.
- MB991827: M.U.T.-III USB Cable
- MB991910: M.U.T.-III Main Harness A

STEP 1. Using scan tool MB991958, diagnose the CAN bus line.

Use scan tool MB991958 to diagnose the CAN bus lines.







CAUTION: To prevent damage to scan tool (MB991958), always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool (MB991958).

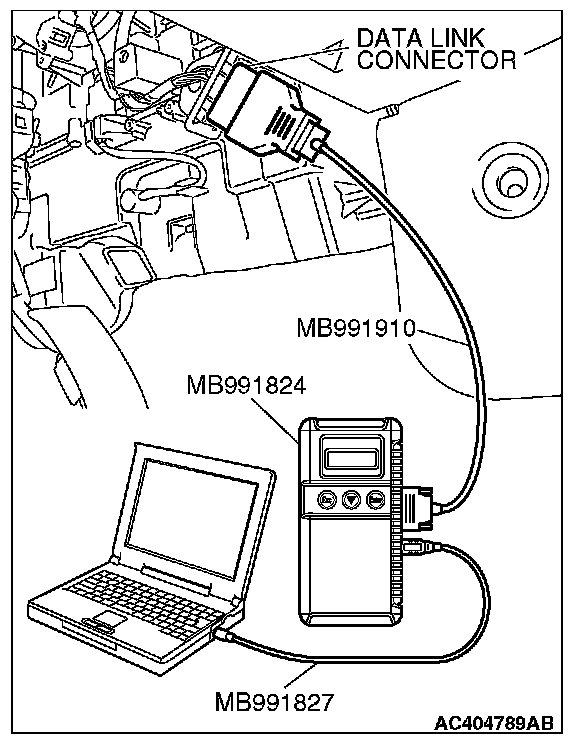

1. Connect scan tool MB991958 to the data link connector.
2. Turn the ignition switch to "ON" position.
3. Diagnose the CAN bus line.
4. Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the check result satisfactory?

YES : Go to Step 2.

NO : Repair the CAN bus lines.

STEP 2. Using scan tool MB991958, read the TPMS diagnostic trouble code.

Check that the TPMS-ECU sets a diagnostic trouble code.







1. Turn the ignition switch to "ON" position.
2. Read the diagnostic trouble code.
3. Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the DTC set?

YES : Refer to Diagnosis - Diagnostic Trouble Code Chart. Diagnostic Trouble Code Descriptions

NO : Go to Step 3.

STEP 3. Recheck for diagnostic trouble code.

Recheck if the diagnostic trouble code is set.







1. Turn the ignition switch to "ON" position.
2. Erase the diagnostic trouble code.
3. Turn the ignition switch to the "LOCK" (OFF) position.
4. Turn the ignition switch to "ON" position.
5. Check if the diagnostic trouble code is set.
6. Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the check result satisfactory?

YES : A poor connection, open circuit or other intermittent malfunction is present in the lines between the SRS-ECU and the combination meter.

NO : Replace the combination meter.
