Traction Control/Active Stability Control System (TCL/ASC)

DIAGNOSTIC TROUBLE CODE CHART

CAUTION
During diagnosis, a DTC associated with other system may be set when the ignition switch is turned on with connector(s) disconnected. On completion, confirm all systems for DTC (s). If DTC (s) are set, erase them all.

Follow the inspection chart that is appropriate for the diagnostic trouble code.

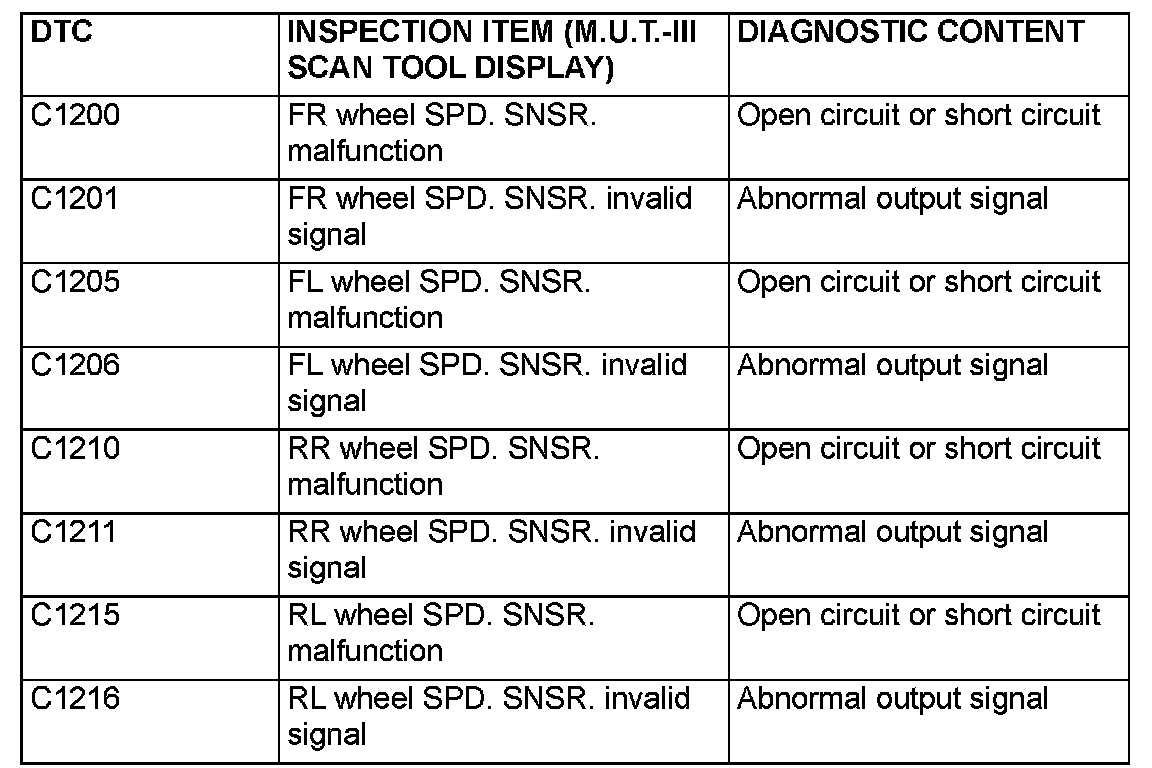

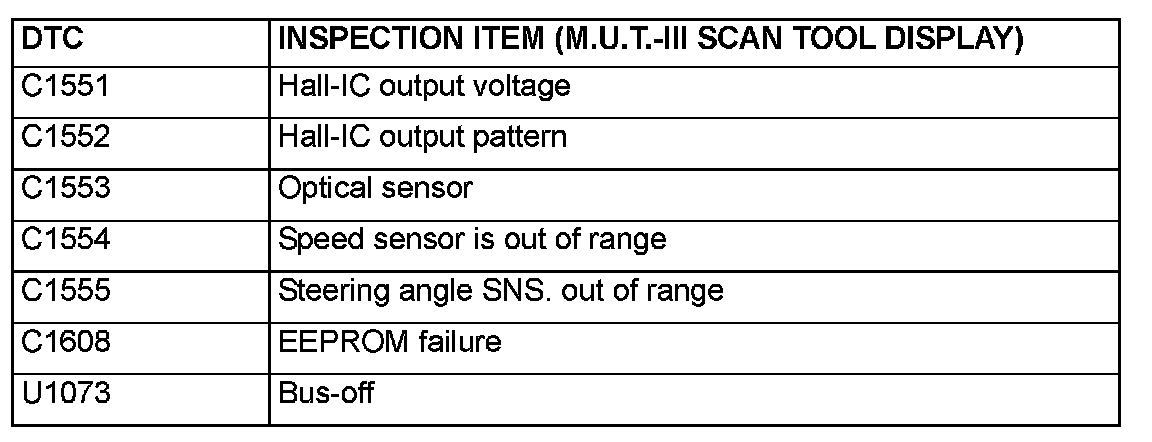

[ABS/TCL/ASC DTC]
