Intersystem Affiliated DTC Reference Table

INTERSYSTEM AFFILIATED DTC REFERENCE TABLE

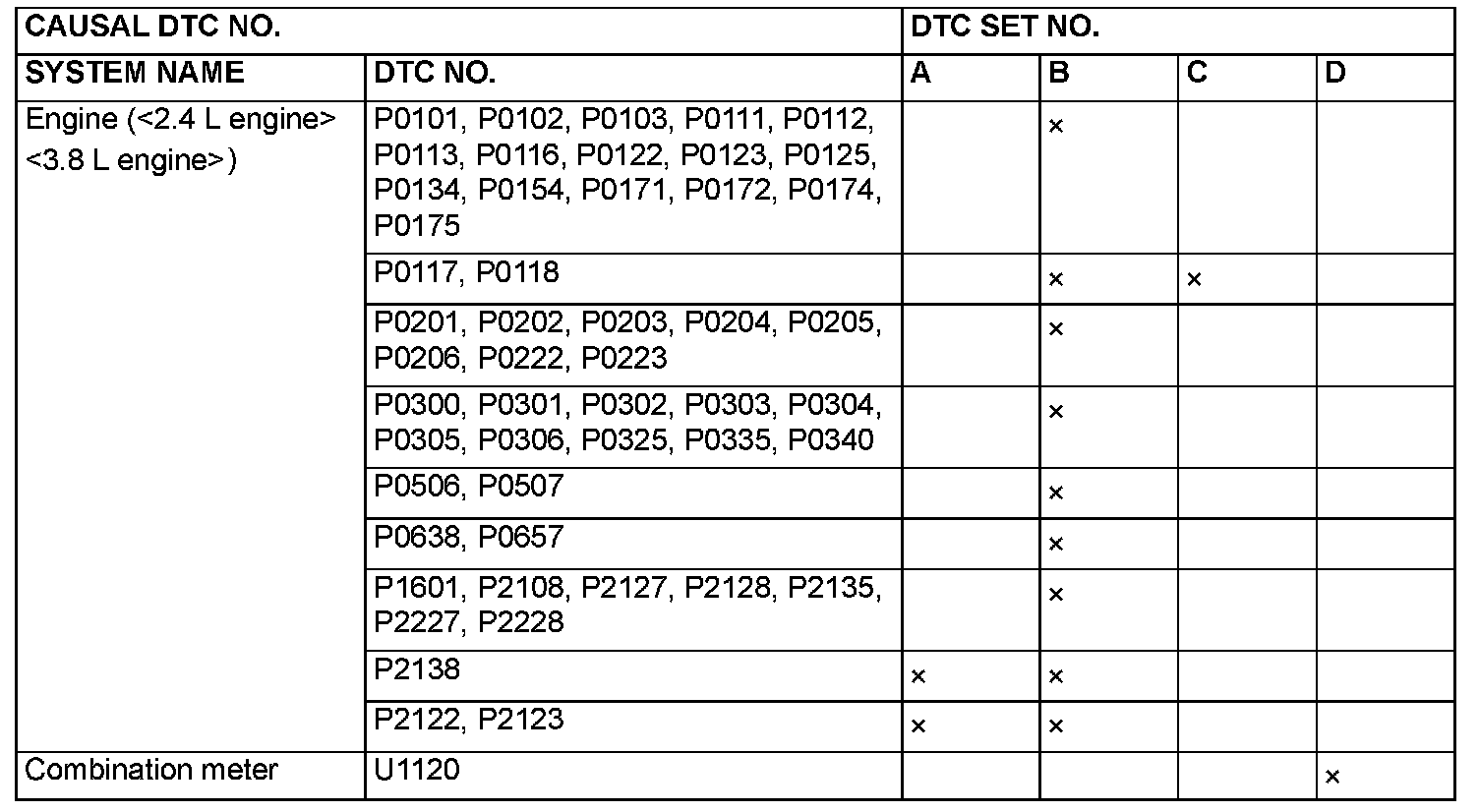

For vehicles with CAN, when DTC which influences the transmission data is set to the ECU which sends the data, DTC also could be set to the ECU which receives and controls the transmission data. The table below shows the relativity of DTC between ECUs. In addition, the alphabet shows the following DTC.
^ A: TCL - DTC No. U1073 (Refer to U1073 - Traction control system diagnosis.) U1073
^ B: TCL - DTC No. U1120 (Refer to U1120 - Traction control system diagnosis.) U1120
^ C: Air conditioner - DTC No. U1120 (Refer to 1120 - Manual A/C diagnosis.) U1120
^ D: SWS - DTC No. U1128 (Refer to U1128 - SWS diagnosis.) U1128

P0101-P2123 / U1120:
