Transfer Oil (With Active Center Differential) (Check Oil Level/Change)

TRANSFER OIL (WITH ACTIVE CENTER DIFFERENTIAL) (CHECK OIL LEVEL/CHANGE)

TRANSFER OIL CHECK

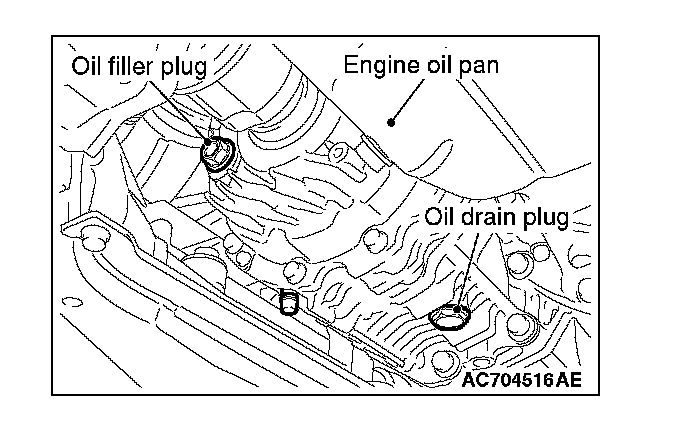

1. Remove the engine room under cover front B assembly.





2. Remove the oil filler plug and gasket.

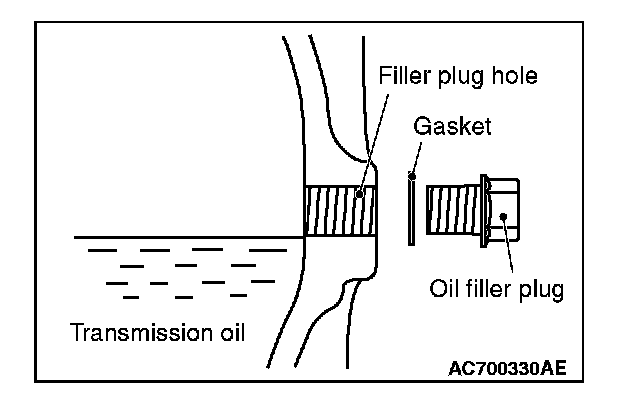

3. Check that the oil level is just below the lower edge of the oil filler plug hole.
4. Check that the oil is not excessively foul and has moderate viscosity.
5. Install the oil filler plug and new gasket, then tighten them to the specified torque.

Tightening torque: 32 ± 2 Nm (24 ± 1 ft-lb)

6. Install the engine room under cover front B assembly.

TRANSFER OIL CHANGE

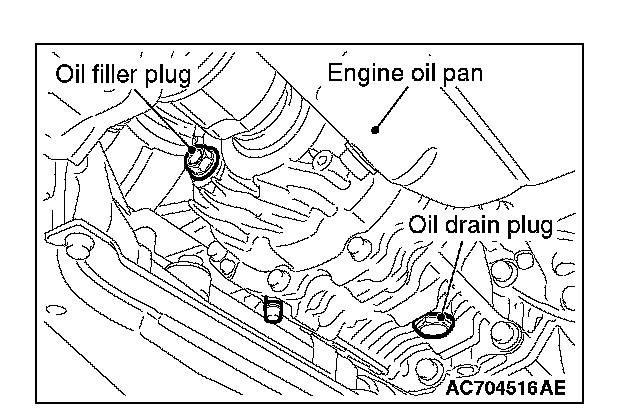

1. Remove the engine room under cover front B assembly.





2. Remove the oil drain plug and gasket to drain the oil.
3. Install the oil drain plug and new gasket, then tighten them to the specified torque.

Tightening torque: 32 ± 2 Nm (24 ± 1 ft-lb)





4. Remove the oil filler plug and gasket, then fill the oil up to the lower edge of the oil filler plug hole.

Brand name: Mitsubishi genuine Dia-Queen LSD Gear Oil
Quantity: 0.8 dm3 (0.9 quarts)

5. Install the oil filler plug and new gasket, then tighten them to the specified torque.

Tightening torque: 32 ± 2 Nm (24 ± 1 ft-lb)

6. Install the engine room under cover front B assembly.
